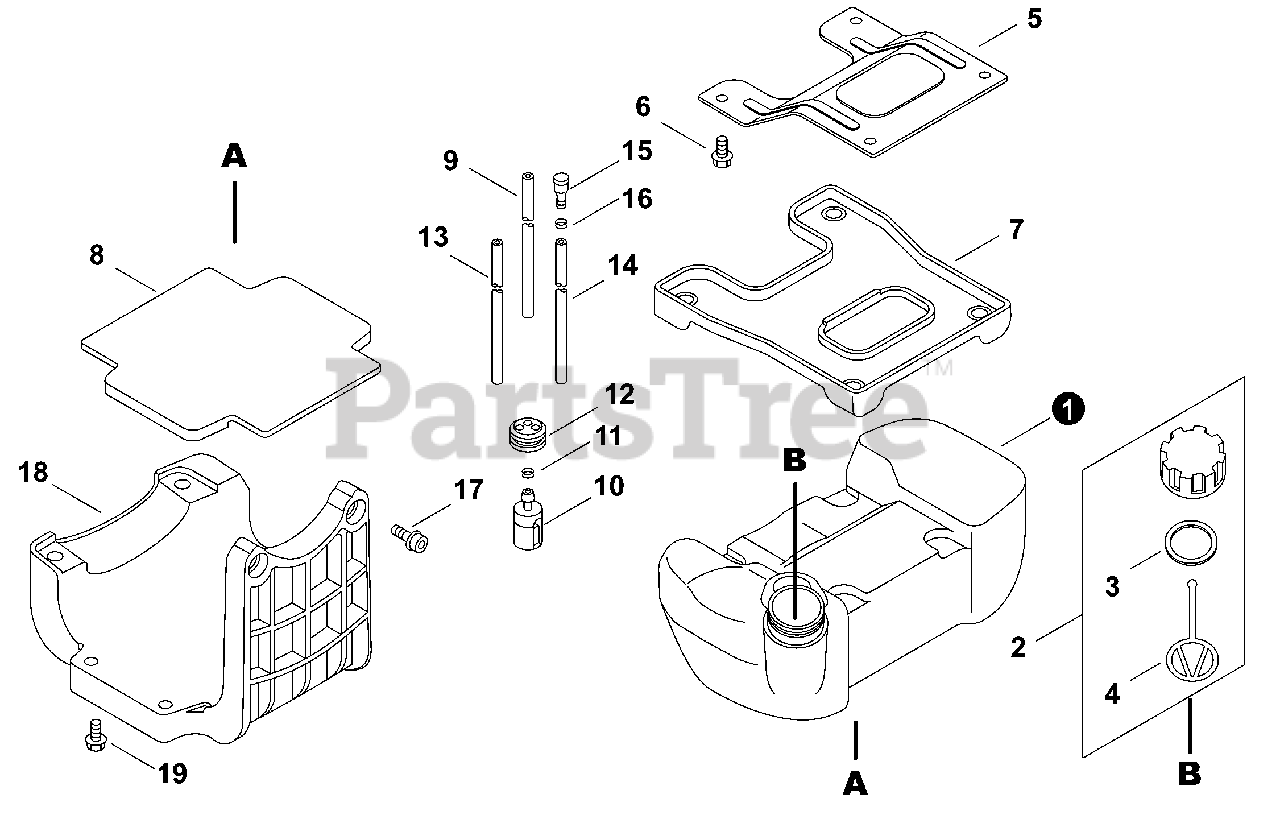

B 430 R - Shindaiwa Brush Cutter (SN: U08226001001 - U08226999999) FUEL SYSTEM Parts Diagram

Brush Cutter

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A350000131

TANK, FUEL

$40.99

$

Usually ships in 2-4 days

0

2

Echo P021014060

CAP ASSY, FUEL
(Superseded to P021014061)

Note: Includes Items 3-4

$9.99

$

In Stock, only 1 left!

0

3

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

4

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

5

Echo A393000030

BRACKET, FUEL TANK

$9.49

$

Usually ships in 2-4 days

0

6

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

7

Echo A390000000

CUSHION, UPPER

$11.99

$

Usually ships in 2-4 days

0

8

Echo A390000010

CUSHION, FUEL TANK

$8.49

$

In Stock, only 1 left!

0

9

Echo 13201035430

PIPE, FUEL 3×6×230
(Superseded to 13201035431)

$7.99

$

In Stock, Qty 11

0

10

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

11

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

12

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

13

Echo V471000630

PIPE, FUEL 3×6×120 BLACK
(Superseded to V471003000)

$1.49

$

In Stock, Qty 20+

0

14

Echo 13201202960

PIPE, FUEL 3×6×120 BLACK
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 20+

0

16

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

17

Echo 90010605025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

18

Echo A393000050

GUARD, FUEL TANK

$24.99

$

Usually ships in 2-4 days

0

19

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0
