B 45 LA/AR - Shindaiwa Brush Cutter (SN: C29826001001 - C29826999999) Fan Cover Parts Diagram

Brush Cutter

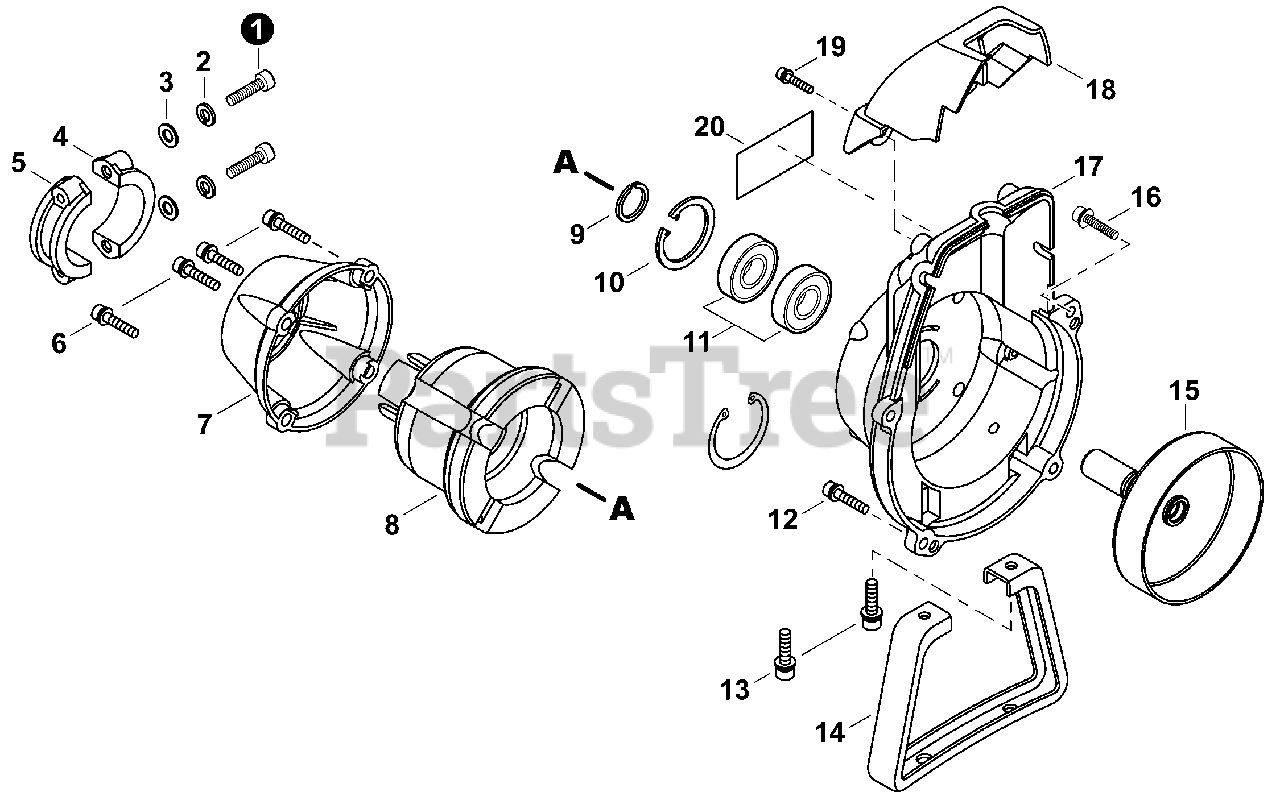

Fan Cover Parts Diagram

  • Title

1

Echo 90010505025

BOLT 5×25

Note: 01020-05250

$1.49

$

In Stock, Qty 8

0

2

Echo 900605-00005

WASHER, SPRING 5

Note: 01600-05131

$0.99

$

In Stock, Qty 9

0

3

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: 01610-05080

$0.99

$

In Stock, Qty 20+

0

4

Echo A575000430

CLAMP - B

Note: 20011-35151

$4.99

$

Usually ships in 2-4 days

0

5

Echo A575000420

CLAMP - A

Note: 20011-35141

$5.99

$

Usually ships in 2-4 days

0

6

Echo V203000351

BOLT 5×20

$1.49

$

In Stock, Qty 8

0

7

Echo A575000410

CAP, CUSHION

Note: 70012-35130

$22.99

$

Usually ships in 2-4 days

0

8

Echo A575000400

CUSHION, AV

Note: 20011-35110

$31.99

$

Usually ships in 2-4 days

0

9

Echo V583000181

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

10

Echo 9242432000

RING, SNAP Ø32
(Superseded to 90070200032)

Note: 02432-32120

$2.49

$

In Stock, only 2 left!

0

11

Echo 90080206002

BEARING, BALL 6002 DDU

Note: 02006-06002

$19.99

$

In Stock, only 2 left!

0

12

Echo V203000351

BOLT 5×20

$1.49

$

In Stock, Qty 8

0

13

Echo V203000591

BOLT 5×16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0

14

Echo A175000180

STAND

Note: 70200-33112

$11.99

$

In Stock, only 2 left!

0

15

Echo A556001790

DRUM, CLUTCH

$49.99

$

Usually ships in 2-4 days

0

16

Echo V203000580

BOLT M5×30
(Superseded to V203000581)

Note: 11022-05300

$

$

Not available

17

Echo A172002320

COVER, FAN

$83.99

$

Usually ships in 2-4 days

0

18

Echo A162000190

GUARD, TOP

Note: 70131-34100

$7.49

$

Usually ships in 2-4 days

0

19

Echo 9111304016

BOLT M4×16

$1.49

$

In Stock, Qty 6

0

20

Echo X504002630

LABEL - MODEL B45LA

Note: 62113-91320

$

$

Currently unavailable
