B 45 LA/AR - Shindaiwa Brush Cutter (SN: C29826001001 - C29826999999) Fuel System Parts Diagram

Brush Cutter

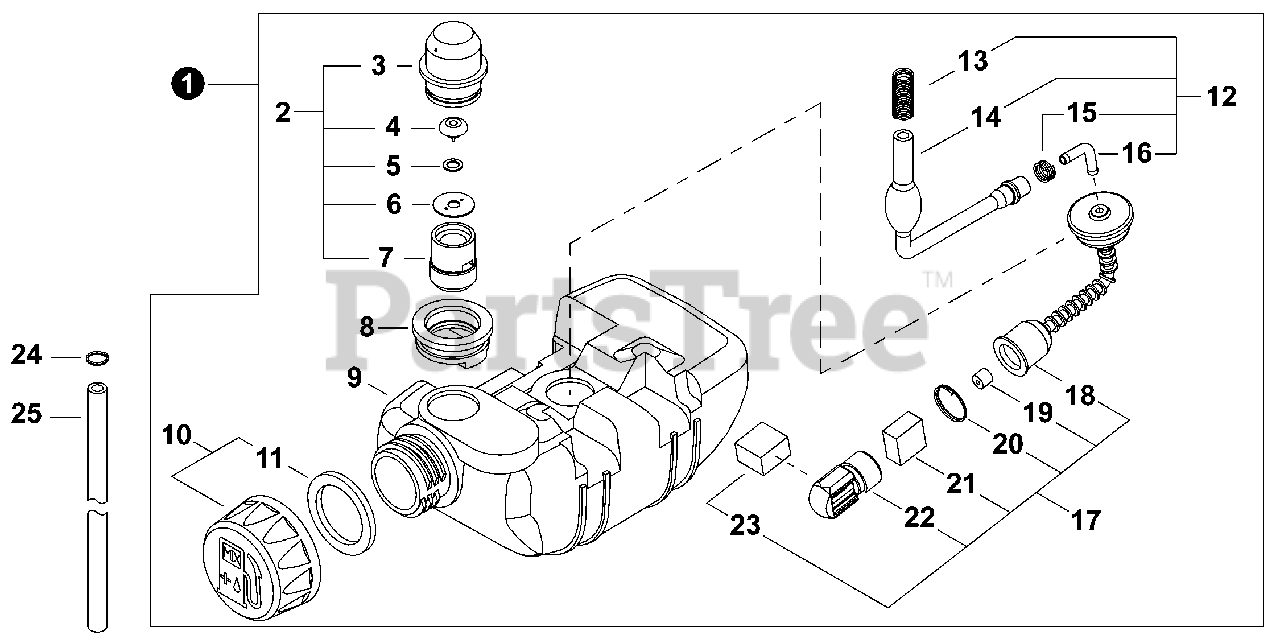

Fuel System Parts Diagram

  • Title

1

Echo P021018001

TANK ASSY, FUEL
(Superseded to P021018002)

Note: Includes ITEMS 2-23 20021-85002

$85.99

$

Usually ships in 2-4 days

0

2

Echo A039000020

VENT ASSY

Note: Includes ITEMS 3-7 20000-85500

$8.99

$

In Stock, only 2 left!

0

3

Echo A362000000

CAP, VENT

Note: 20000-85511

$1.99

$

Usually ships in 2-4 days

0

4

Echo A356000090

VENT ASSY

Note: 22100-85260

$5.49

$

In Stock, only 1 left!

0

5

Echo V303000170

WASHER

Note: 22100-85250

$0.99

$

Usually ships in 2-4 days

0

6

Echo A359000010

RETAINER

Note: 22100-85240

$0.99

$

Usually ships in 2-4 days

0

7

Echo A358000030

HOLDER, VENT

Note: 20000-85521

$2.49

$

Usually ships in 2-4 days

0

8

Echo V138000020

GROMMET, VENT

Note: 20000-85579

$23.99

$

In Stock, only 4 left!

0

9

Echo A350001321

TANK, FUEL

Note: 20011-85112

$23.99

$

Usually ships in 2-4 days

0

10

Echo A033000070

CAP ASSY, FUEL

Note: Includes ITEM 11 70043-85201

$4.99

$

In Stock, Qty 11

0

11

Echo V107000010

GASKET, FUEL CAP

Note: 20000-85221

$1.99

$

In Stock, Qty 18

0

12

Echo P021018010

LINE ASSY, FUEL
(Superseded to P021018011)

Note: Includes ITEMS 13-16 20021-85300

$10.99

$

Usually ships in 2-4 days

0

13

Echo V451000850

CLAMP

Note: 20000-85340

$1.49

$

Usually ships in 2-4 days

0

14

Echo V470001100

PIPE, FUEL
(Superseded to V470001101)

Note: 20021-85310

$14.99

$

Usually ships in 2-4 days

0

15

Echo V490000610

CLIP

Note: 20000-85350

$1.49

$

In Stock, Qty 6

0

16

Echo V186000220

CONNECTOR, PIPE

Note: 20000-85321

$2.49

$

In Stock, Qty 10

0

17

Echo A037000000

FILTER ASSY, FUEL

Note: Includes ITEMS 18-23 20011-85401

$23.99

$

In Stock, Qty 5

0

18

Echo V470001110

PIPE, FUEL

Note: 20011-85451

$10.99

$

In Stock, only 1 left!

0

19

Echo A356000080

VALVE, CHECK

Note: 20000-85440

$8.49

$

In Stock, Qty 5

0

20

Echo V490000590

CLIP

Note: 22102-85440

$0.99

$

In Stock, Qty 20+

0

21

Echo A368000030

FILTER, FUEL - B

Note: 22100-85431

$0.99

$

In Stock, Qty 9

0

22

Echo A369000030

WEIGHT

Note: 22100-85411

$4.49

$

Usually ships in 2-4 days

0

23

Echo A368000020

FILTER, FUEL - A

Note: 22100-85420

$1.99

$

In Stock, only 1 left!

0

24

Echo V490000580

CLIP

Note: 20021-85540

$1.49

$

In Stock, only 4 left!

0

25

Echo V471002640

PIPE

Note: 20000-83313

$1.49

$

Usually ships in 2-4 days

0
