B 45 LA/AR - Shindaiwa Brush Cutter (SN: C29826001001 - C29826999999) Intake / Air Filter Parts Diagram

Brush Cutter

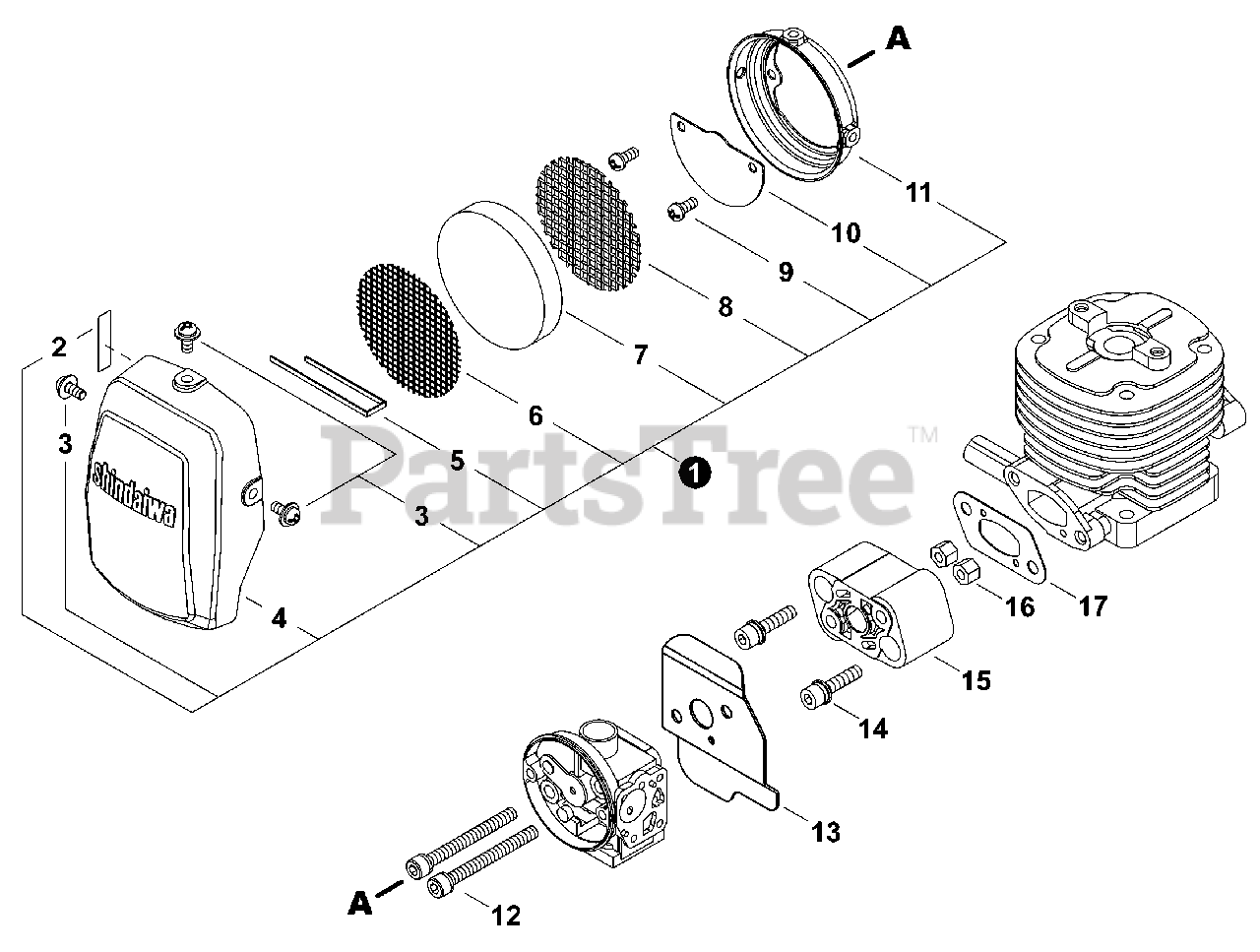

Intake / Air Filter Parts Diagram

  • Title

1

Echo A027000150

FILTER ASSY, AIR

Note: Includes ITEMS 2-11 20021-81700

$42.99

$

Usually ships in 2-4 days

0

2

Echo X506000130

LABEL, CHOKE

Note: 19404-00008

$1.49

$

In Stock, Qty 6

0

3

Echo V252000230

SCREW 4

Note: 20000-81735

$1.49

$

In Stock, only 3 left!

0

4

Echo A232000870

COVER, AIR FILTER

Note: 20010-81771

$9.49

$

In Stock, only 2 left!

0

5

Echo A238000060

CLIP, FILTER RETAINING

Note: 20010-81781

$1.49

$

In Stock, only 3 left!

0

6

Echo A230000030

SCREEN - FRONT

Note: 20000-81750

$3.49

$

In Stock, Qty 6

0

7

Echo A226000670

FILTER, AIR

Note: 20000-81740

$3.99

$

In Stock, only 4 left!

0

8

Echo A230000040

SCREEN, REAR

Note: 20010-81760

$10.99

$

In Stock, only 2 left!

0

9

Echo V252000220

SCREW

Note: 20000-81730

$1.49

$

In Stock, only 1 left!

0

10

Echo A244000160

PLATE

Note: 20021-81790

$1.99

$

Usually ships in 2-4 days

0

11

Echo A225000500

CASE, AIR FILTER

Note: 20010-81711

$8.99

$

In Stock, only 1 left!

0

12

Echo V203000940

BOLT M5×48

Note: 11020-05480

$2.49

$

Usually ships in 2-4 days

0

13

Echo V103001010

GASKET, CARBURETOR

Note: 20021-83411

$6.49

$

In Stock, only 2 left!

0

14

Echo V203000630

BOLT M5×25

Note: 11022-05250

$1.49

$

In Stock, Qty 20+

0

15

Echo A200000670

INSULATOR

Note: 20021-12210

$22.99

$

Usually ships in 2-4 days

0

16

Echo V263000260

NUT M5×6.3

Note: 20011-12260

$1.49

$

In Stock, Qty 5

0

17

Echo V103001000

GASKET, INTAKE

Note: 20021-12220

$0.99

$

In Stock, only 4 left!

0
