B 45 LA/AR - Shindaiwa Brush Cutter (SN: C29826001001 - C29826999999) Main Pipe Parts Diagram

Brush Cutter

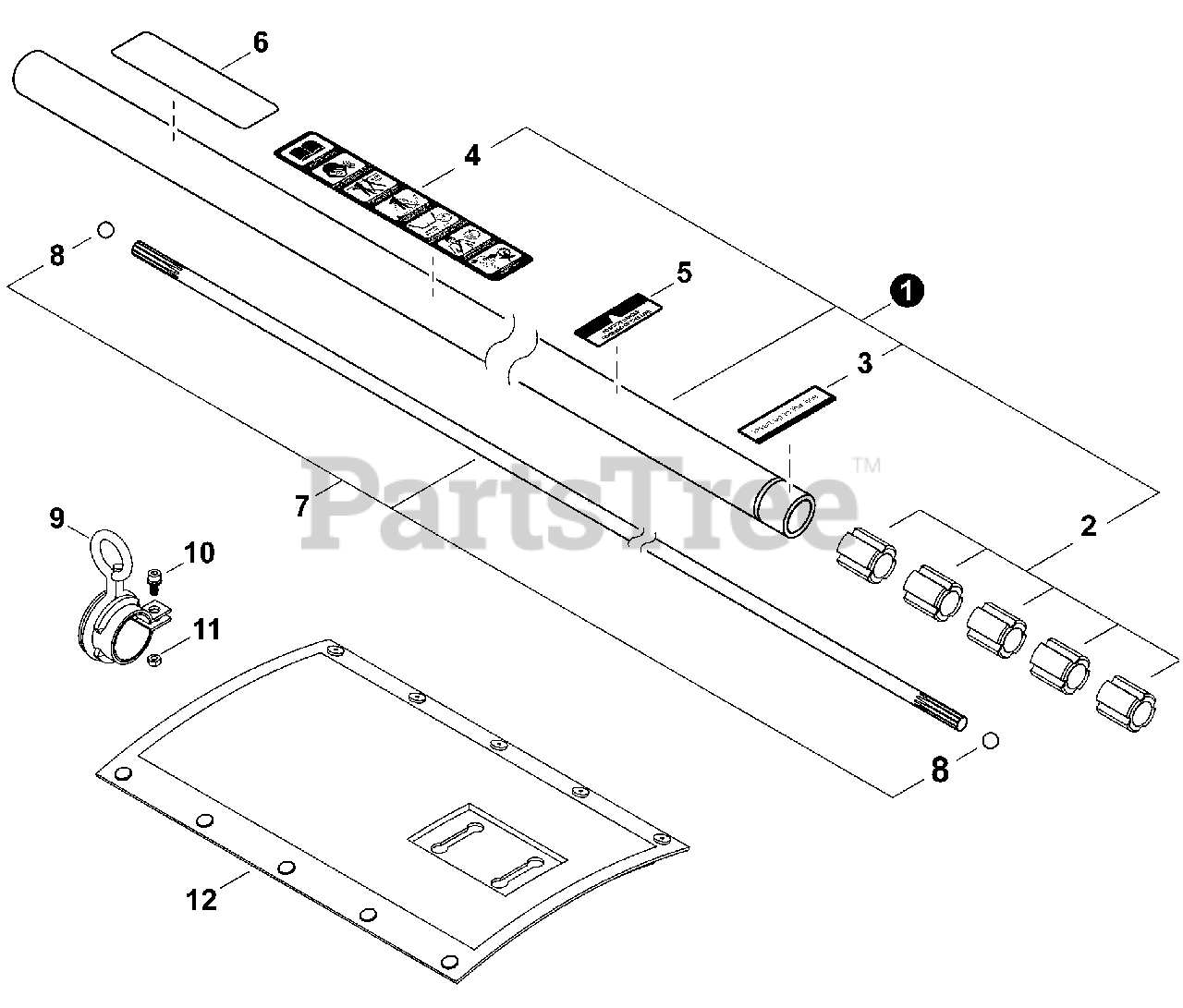

Main Pipe Parts Diagram

  • Title

1

Echo P021042660

MAIN PIPE ASSY

Note: Includes ITEM 2-4

$96.99

$

Usually ships in 2-4 days

0

2

Echo C501000090

BUSHING

Note: 63019-62120

$6.49

$

Usually ships in 2-4 days

0

3

Echo X505002860

LABEL - ALIGNMENT
(Superseded to 89015204930)

Note: 72005-12140

$0.99

$

In Stock, Qty 11

0

4

Echo X505005890

LABEL, CAUTION (BLADE CAPABLE)

Note: 19422-00029

$6.49

$

In Stock, only 1 left!

0

5

Echo X505002850

LABEL, HANDLE

Note: 19401-00269

$1.49

$

In Stock, only 1 left!

0

6

Echo X504002780

LABEL, SHINDAIWA PROFESSIONAL

Note: 19420-00084

$3.99

$

In Stock, Qty 7

0

7

Echo C504000720

SHAFT ASSY, DRIVE
(Superseded to C504000730)

Note: Includes ITEM 8 22021-12400

$100.99

$

Usually ships in 2-4 days

0

8

Echo V585000040

STOPPER

Note: 22021-12420

$1.49

$

Usually ships in 2-4 days

0

9

Echo C063000030

HANGER

Note: 22017-12210

$11.99

$

Usually ships in 2-4 days

0

10

Echo V203000700

BOLT M5×12

Note: 11022-05120

$1.49

$

In Stock, Qty 20+

0

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

12

Echo V420002480

PROTECTOR

Note: 22017-17110

$23.99

$

Usually ships in 2-4 days

0
