B 45 LA/AR - Shindaiwa Brush Cutter (SN: C29826001001 - C29826999999) Starter Parts Diagram

Brush Cutter

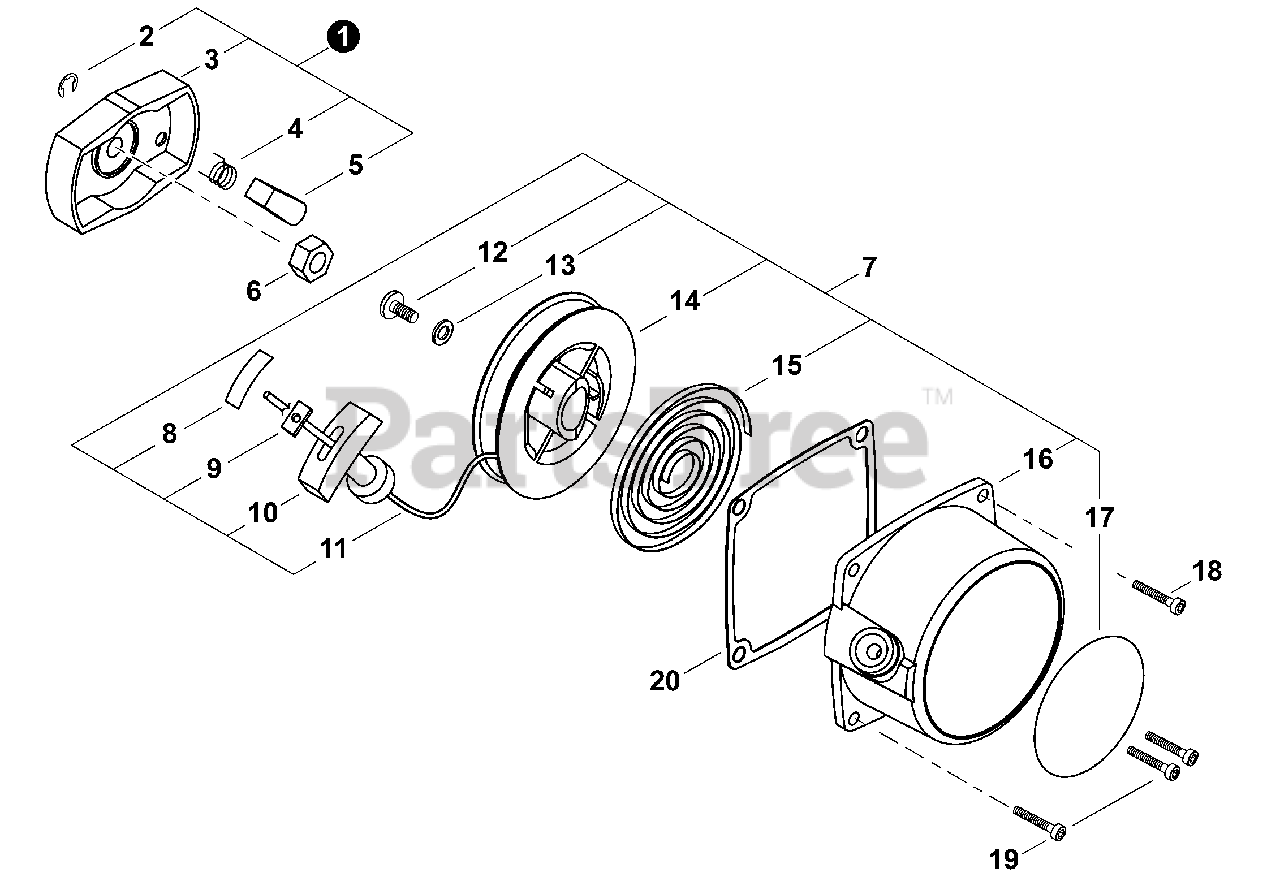

Starter Parts Diagram

  • Title

1

Echo A052000370

PULLEY ASSY, STARTER

Note: Includes ITEMS 2-5 70131-75200

$14.99

$

In Stock, Qty 8

0

2

Echo P022002100

E-RING 4

Note: 20024-75240

$0.99

$

In Stock, Qty 5

0

3

Echo A520000150

PULLEY, STARTER

Note: 70131-75211

$15.99

$

Usually ships in 2-4 days

0

4

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

5

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

6

Echo V265000170

NUT M8×H5

Note: 20000-76210

$1.49

$

Usually ships in 2-4 days

0

7

Echo P021035720

STARTER ASSY, RECOIL

Note: Includes ITEMS 8-17 70131-75100

$68.99

$

In Stock, only 2 left!

0

8

Echo X707000050

TAPE

Note: 20010-75230

$1.99

$

Usually ships in 2-4 days

0

9

Echo 177246-11120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

10

Echo 17722827030

GRIP, STARTER

$7.49

$

In Stock, only 3 left!

0

11

Echo A509000190

ROPE, STARTER

Note: 20020-75180

$10.99

$

Usually ships in 2-4 days

0

12

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

13

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17721543130

REEL, ROPE

$16.99

$

In Stock, only 2 left!

0

15

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

16

Echo A500000840

CASE, RECOIL STARTER

Note: 70131-75110

$39.99

$

Usually ships in 2-4 days

0

17

Echo X504002770

LABEL, TRADE

Note: 19420-00027

$2.99

$

In Stock, Qty 9

0

18

Echo V202000310

BOLT M4×20

$1.49

$

Usually ships in 2-4 days

0

19

Echo V202000581

BOLT M4×16

$1.49

$

Usually ships in 2-4 days

0

20

Echo V105000031

GASKET, RECOIL STARTER

$1.99

$

In Stock, Qty 6

0
