B 45 LA - Shindaiwa Brush Cutter (SN: 09013121 - 09096060) Fan Case Parts Diagram

Brush Cutter

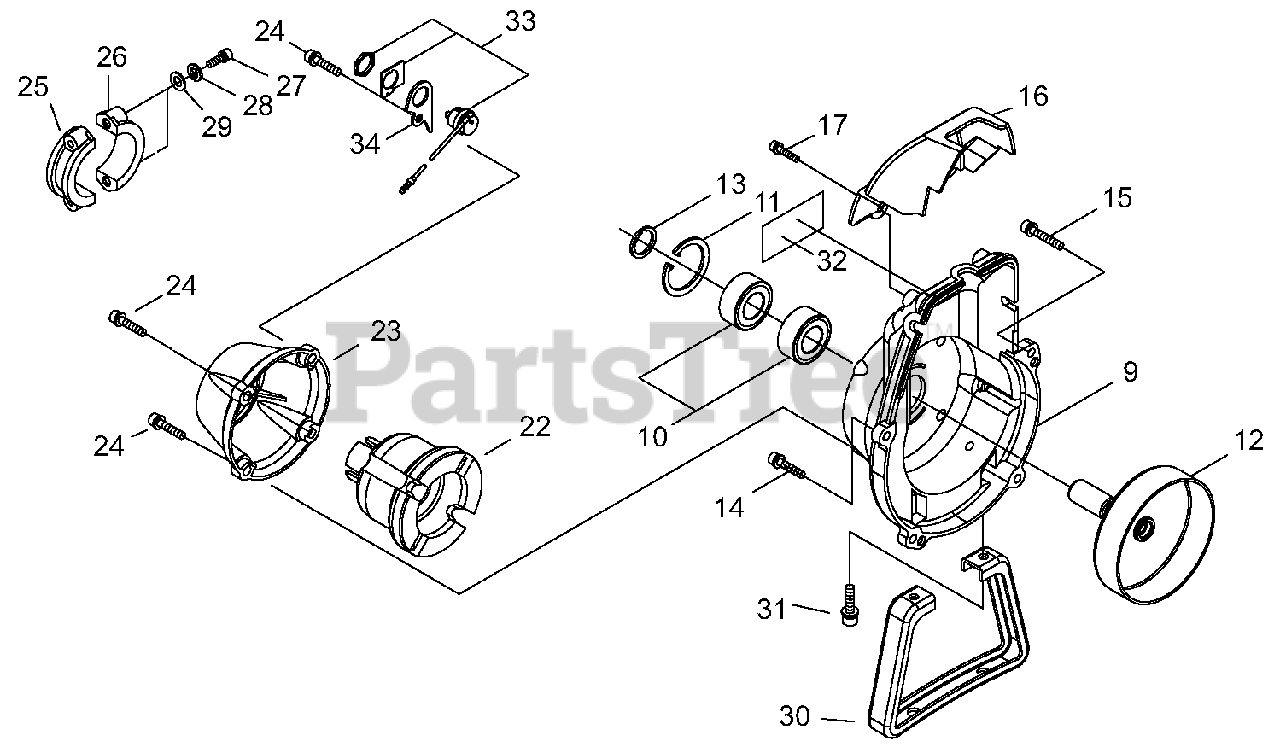

Fan Case Parts Diagram

  • Title

9

Echo A172001250

CASE, FAN

Note: 70084-31111

$79.99

$

Usually ships in 2-4 days

0

10

Echo 90080206002

BEARING, BALL - 6002

Note: 12900-60021

$19.99

$

In Stock, only 3 left!

0

11

Echo 9242432000

RING, RETAINING - 32
(Superseded to 90070200032)

Note: 02432-32120

$2.49

$

In Stock, only 2 left!

0

12

Echo A055000020

CLUTCH DRUM KIT
(Superseded to A556001790)

Note: 62113-31210

$49.99

$

Usually ships in 2-4 days

0

13

Echo V583000180

RING, RETAINING
(Superseded to V583000181)

Note: 20011-31230

$0.99

$

Usually ships in 2-4 days

0

14

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

Note: 11022-05200

$1.49

$

In Stock, Qty 8

0

15

Echo V203000580

SCREW - 5X30
(Superseded to V203000581)

Note: 11022-05300

$

$

Not available

16

Echo A162000190

PROTECTOR

Note: 70131-34100

$7.49

$

Usually ships in 2-4 days

0

17

Echo V202000300

SCREW - 4X16
(Superseded to 9111304016)

Note: 11024-04160

$1.49

$

In Stock, Qty 6

0

22

Echo A575000400

CUSHION

Note: 20011-35110

$31.99

$

Usually ships in 2-4 days

0

23

Echo A575000410

CONNECTOR, CAP

Note: 70012-35130

$22.99

$

Usually ships in 2-4 days

0

24

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

Note: 11022-05200

$1.49

$

In Stock, Qty 8

0

25

Echo A575000420

CLAMP - A

Note: 20011-35141

$5.99

$

Usually ships in 2-4 days

0

26

Echo A575000430

CLAMP - B

Note: 20011-35151

$4.99

$

Usually ships in 2-4 days

0

27

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 11

0

28

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, Qty 9

0

29

Echo 90060000005

WASHER - 5

Note: 01610-05080

$0.99

$

In Stock, Qty 20+

0

30

Echo A175000180

GUARD, FUEL TANK

Note: 70200-33112

$11.99

$

In Stock, only 2 left!

0

31

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$1.49

$

In Stock, Qty 6

0

32

Echo X504002630

LABEL - MODEL B45LA

Note: 62113-91320

$

$

Currently unavailable

33

Echo A045000340

SWITCH, IGNITION

Note: 72930-14210

$13.99

$

Usually ships in 2-4 days

0

34

Echo A439000510

BRACKET, SWITCH

Note: 70014-74120

$2.49

$

Usually ships in 2-4 days

0
