B 45 LA - Shindaiwa Brush Cutter (SN: 09013121 - 09096060) Gear Case Parts Diagram

Brush Cutter

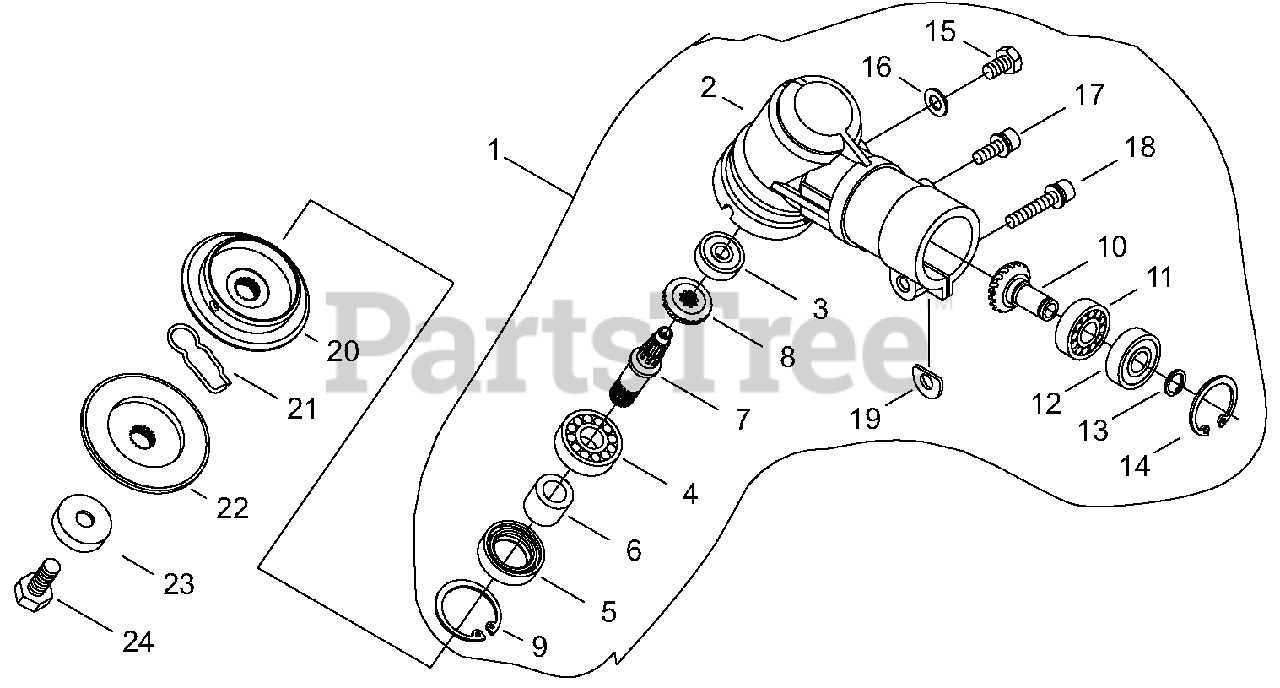

Gear Case Parts Diagram

  • Title

1

Echo C051000600

GEAR CASE ASSY
(Superseded to P021039270)

Note: 72080-13013

$184.99

$

Usually ships in 2-4 days

0

2

6302063111

CASE, GEAR

Note: 63020-63110

$

$

Not available

3

Echo 90080206000

BEARING, BALL - 6000

Note: 02006-06000

$13.99

$

In Stock, Qty 20+

0

4

Echo 90081006202

BEARING, BALL - 6202

Note: 02000-06202

$9.99

$

In Stock, Qty 14

0

5

Echo V513000000

SEAL, OIL

Note: 72447-13121

$4.99

$

Usually ships in 2-4 days

0

6

Echo V358000130

COLLAR

Note: 22015-13230

$3.99

$

Usually ships in 2-4 days

0

7

Echo C534000590

GEAR - SHAFT
(Superseded to P021039360)

Note: 22015-13210

$32.99

$

Usually ships in 2-4 days

0

8

Echo V651000540

GEAR - BEVEL

Note: 22015-13220

$27.99

$

Usually ships in 2-4 days

0

9

Echo 9242435000

RING, RETAINING - 35
(Superseded to 90070200035)

Note: 02432-35150

$1.99

$

In Stock, Qty 16

0

10

Echo V651000550

GEAR - SHAFT

Note: 22021-13390

$26.99

$

Usually ships in 2-4 days

0

11

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

Note: 02000-06001

$9.49

$

In Stock, Qty 8

0

12

Echo 9402406001

BEARING, BALL - 6001ZZ
(Superseded to 90080406001)

Note: 02002-06001

$11.99

$

In Stock, Qty 6

0

13

Echo V583000170

RING, RETAINING
(Superseded to 90070600012)

Note: 20000-31140

$1.49

$

In Stock, Qty 10

0

14

Echo 9242428000

RING, RETAINING - 28
(Superseded to 90070200028)

Note: 02432-28120

$1.49

$

In Stock, Qty 20+

0

15

Echo V206000250

BOLT - 6X10

Note: 22015-13410

$1.49

$

In Stock, Qty 20+

0

16

Echo V307000230

WASHER

Note: 22015-13420

$0.99

$

In Stock, Qty 8

0

17

Echo V204000740

BOLT - 6X14

Note: 11022-06140

$1.99

$

In Stock, only 1 left!

0

18

Echo V204000410

SCREW - 6X28
(Superseded to V204000411)

Note: 11022-06280

$

$

Not available

19

Echo V340000280

SHIM

Note: 22011-13450

$0.99

$

In Stock, Qty 6

0

20

Echo C535000770

ADAPTOR, BLADE - UPPER

Note: 72447-13240

$35.99

$

Usually ships in 2-4 days

0

21

Echo V641000140

CLIP
(Superseded to V641000240)

Note: 22015-13290

$2.49

$

In Stock, Qty 6

0

22

Echo C535000780

ADAPTOR, BLADE - LOWER
(Superseded to C535000781)

Note: 72017-63170

$35.99

$

In Stock, Qty 7

0

23

Echo C535000790

GUARD

Note: 22015-13270

$5.99

$

In Stock, only 1 left!

0

24

Echo V206000220

BOLT - 10 -- LEFT HAND

Note: 22015-13261

$3.49

$

In Stock, Qty 7

0
