B 45 LA - Shindaiwa Brush Cutter (SN: 36001001 - 36999999) Fan Cover Parts Diagram

Brush Cutter

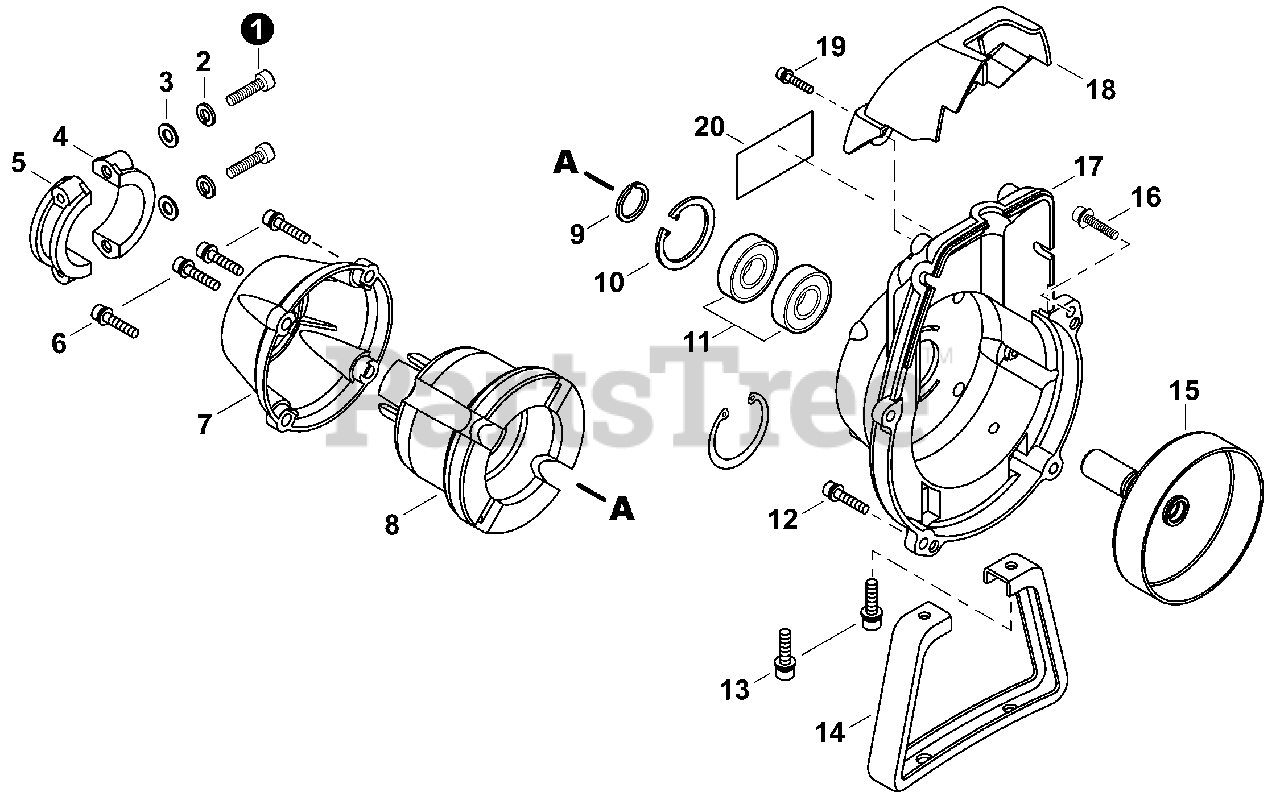

Fan Cover Parts Diagram

  • Title

1

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 11

0

2

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 7

0

3

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo A575000430

CLAMP (B)

$4.99

$

Usually ships in 2-4 days

0

5

Echo A575000420

CLAMP (A)

$5.99

$

Usually ships in 2-4 days

0

6

Echo V203000350

BOLT M5×20
(Superseded to V203000351)

$1.49

$

In Stock, only 3 left!

0

7

Echo A575000410

CAP, CUSHION

$22.99

$

Usually ships in 2-4 days

0

8

Echo A575000400

CUSHION, AV

$31.99

$

Usually ships in 2-4 days

0

9

Echo V583000180

RING, SNAP
(Superseded to V583000181)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 9242432000

RING, SNAP Ø32
(Superseded to 90070200032)

$2.49

$

In Stock, only 2 left!

0

11

Echo 90080206002

BEARING, BALL 6002 DDU

$19.99

$

In Stock, only 2 left!

0

12

Echo V203000350

BOLT M5×20
(Superseded to V203000351)

$1.49

$

In Stock, only 3 left!

0

13

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0

14

Echo A175000180

STAND

$11.99

$

In Stock, only 2 left!

0

15

Echo A055000020

DRUM ASSY, CLUTCH
(Superseded to A556001790)

$49.99

$

Usually ships in 2-4 days

0

16

Echo V203000580

BOLT M5×30
(Superseded to V203000581)

$

$

Not available

17

Echo A172001250

COVER, FAN

$79.99

$

Usually ships in 2-4 days

0

18

Echo A162000190

GUARD, TOP

$7.49

$

Usually ships in 2-4 days

0

19

Echo V202000300

BOLT M4×16
(Superseded to 9111304016)

$1.49

$

In Stock, Qty 6

0

20

Echo X504002630

LABEL - MODEL B45LA

$

$

Currently unavailable
