B 45 - Shindaiwa Brush Cutter (Original Version) Clutch, Piston Parts Diagram

Brush Cutter

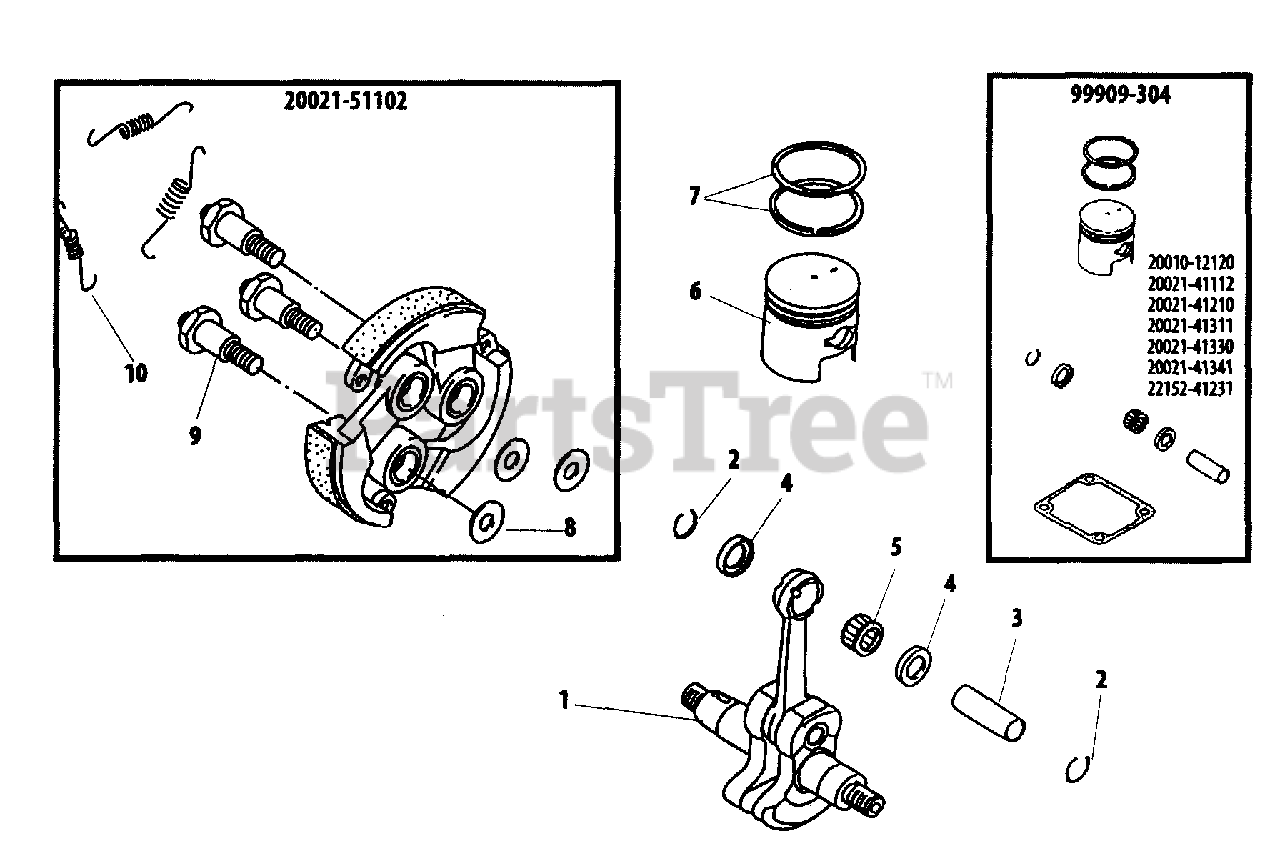

Clutch, Piston Parts Diagram

  • Title

1

Echo 20021-42002

CRANKSHAFT ASSY
(Superseded to A011000810)

$65.99

$

Usually ships in 2-4 days

0

99909-304

Echo 99909-304

PISTON ASSY
(Superseded to 72080-98010)

$

$

Not available

2

Echo 22152-41231

RING, RETAINING
(Superseded to V580000100)

$1.49

$

Usually ships in 2-4 days

0

3

Echo 20021-41311

PIN, PISTON
(Superseded to V609000040)

$6.49

$

Usually ships in 2-4 days

0

4

Echo 20021-41341

WASHER
(Superseded to 20021-41342)

$5.99

$

Usually ships in 2-4 days

0

5

Echo 20021-41330

BEARING, NEEDLE
(Superseded to V556000020)

$10.99

$

Usually ships in 2-4 days

0

6

Echo 20021-41112

PISTON
(Superseded to 72080-98310)

$53.99

$

Usually ships in 2-4 days

0

7

Echo 20021-41210

RING, PISTON
(Superseded to A101000350)

$4.99

$

In Stock, Qty 14

0

Echo 20010-12120

GASKET, CYLINDER
(Superseded to 20010-12121)

Note: See "Cylinder" illustration and parts list.

$1.99

$

In Stock, only 4 left!

0

20021-51102

Echo 20021-51102

CLUTCH SHOE ASSY
(Superseded to P021017990)

$66.99

$

Usually ships in 2-4 days

0

8

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$1.49

$

In Stock, only 2 left!

0

9

Echo 20021-51131

BOLT, CLUTCH
(Superseded to A557000100)

$6.49

$

Usually ships in 2-4 days

0

10

Echo 20021-51120

SPRING, CLUTCH
(Superseded to A566000130)

$2.99

$

Usually ships in 2-4 days

0
