B 45 - Shindaiwa Brush Cutter (SN: 20001001 - 20999999) Ignition Parts Diagram

Brush Cutter

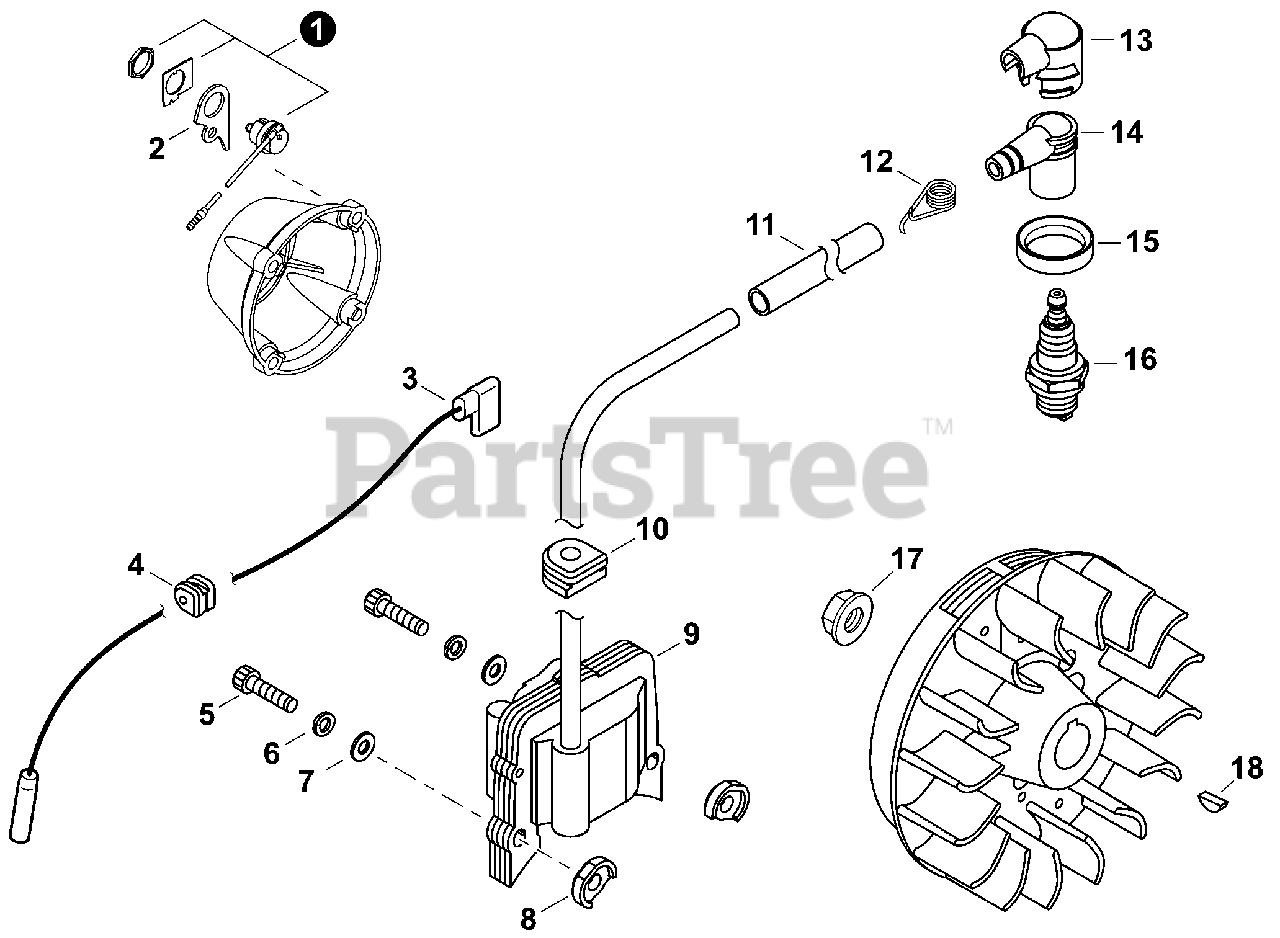

Ignition Parts Diagram

  • Title

1

Echo A045000340

SWITCH, ON-OFF

Note: 72930-14210

$13.99

$

Usually ships in 2-4 days

0

2

Echo A439000510

BRACKET

Note: 70014-74120

$2.49

$

Usually ships in 2-4 days

0

3

Echo A412000030

LEAD - IGNITION

Note: 70200-71640

$2.49

$

Usually ships in 2-4 days

0

4

Echo V136000060

GROMMET, LEAD

Note: 20011-72120

$1.49

$

Usually ships in 2-4 days

0

5

Echo 9110004024

BOLT M4×24

Note: 01020-04240

$1.49

$

In Stock, Qty 6

0

6

Echo 900605-00004

WASHER, SPRING 4 MM

Note: 01600-04101

$0.99

$

In Stock, Qty 20+

0

7

Echo V302000010

WASHER 4.3×9.6×0.8

Note: 20010-71650

$1.49

$

In Stock, only 4 left!

0

8

Echo V352000140

COLLAR 4

Note: 20010-71631

$1.99

$

Usually ships in 2-4 days

0

9

Echo A411000780

COIL, IGNITION

Note: 70200-71610

$72.99

$

In Stock, only 2 left!

0

10

Echo V135000080

GROMMET

Note: 20011-72110

$1.99

$

Usually ships in 2-4 days

0

11

Echo V475004880

TUBE, INSULATOR

Note: 20011-71660

$1.49

$

Usually ships in 2-4 days

0

12

Echo A426000050

TERMINAL, SPARK PLUG

Note: 20000-72230

$1.99

$

In Stock, Qty 6

0

13

Echo A429000110

COVER, CAP

Note: 20000-72241

$1.99

$

In Stock, Qty 17

0

14

Echo A427000090

CAP, SPARK PLUG

Note: 20010-72221

$7.49

$

In Stock, only 2 left!

0

15

Echo V495001440

SEAL, SPARK PLUG

Note: 20000-72250

$1.49

$

In Stock, only 4 left!

0

16

Echo 15902603930

SPARK PLUG - CJ8
(Superseded to CJ8)

Note: CJ8

$3.99

$

In Stock, Qty 20+

0

17

Echo V266000110

NUT, FLANGE M10

Note: 11527-10212

$1.49

$

Usually ships in 2-4 days

0

18

Echo 9311503010

KEY, WOODRUFF 3×10

Note: 02403-03100

$0.99

$

In Stock, Qty 13

0
