B 45 - Shindaiwa Brush Cutter (SN: 20001001 - 20999999) Starter Parts Diagram

Brush Cutter

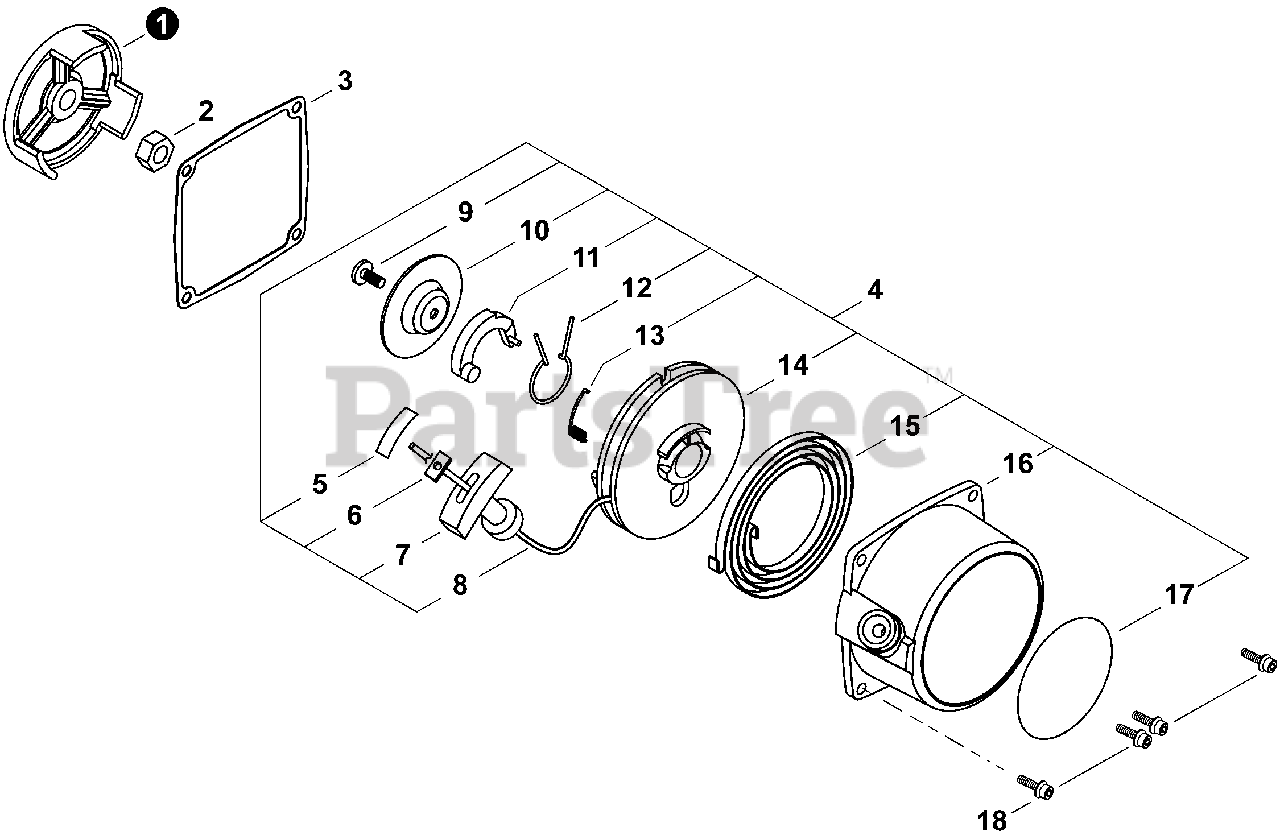

Starter Parts Diagram

  • Title

1

Echo A520000170

PULLEY, STARTER
(Superseded to A520000171)

$4.99

$

Usually ships in 2-4 days

0

2

Echo V265000170

NUT M8×H5

$0.99

$

Usually ships in 2-4 days

0

3

Echo V105000030

GASKET, RECOIL STARTER
(Superseded to V105000031)

$1.99

$

In Stock, Qty 5

0

4

Echo P021038310

STARTER ASSY, RECOIL
(Superseded to P021038311)

Note: Includes ITEMS 5-17

$87.99

$

Usually ships in 2-4 days

0

5

Echo X707000050

TAPE

$1.99

$

Usually ships in 2-4 days

0

6

Echo A522000040

RETAINER, ROPE
(Superseded to 17724611120)

$2.49

$

In Stock, Qty 8

0

7

Echo A511000160

GRIP, STARTER
(Superseded to 17722827030)

$5.99

$

In Stock, Qty 20+

0

8

Echo A509000190

ROPE, STARTER

$8.49

$

Usually ships in 2-4 days

0

9

Echo V253000470

SCREW

$0.99

$

Usually ships in 2-4 days

0

10

Echo A518000050

PLATE, FRICTION

$5.99

$

Usually ships in 2-4 days

0

11

Echo A514000130

RATCHET

$2.49

$

In Stock, Qty 8

0

12

Echo V452000550

SPRING, FRICTION

$3.49

$

In Stock, only 1 left!

0

13

Echo V452000560

SPRING, RETURN

$1.99

$

Usually ships in 2-4 days

0

14

Echo A506000270

REEL, ROPE

$11.99

$

Usually ships in 2-4 days

0

15

Echo A504000140

SPRING, RECOIL
(Superseded to 17722005730)

$17.99

$

Usually ships in 2-4 days

0

16

Echo A500000880

CASE, RECOIL STARTER
(Superseded to A500000881)

$24.99

$

Usually ships in 2-4 days

0

17

Echo X504002770

LABEL, TRADE

$2.49

$

In Stock, only 2 left!

0

18

Echo V202000580

BOLT M4×16
(Superseded to V202000581)

$0.99

$

In Stock, Qty 6

0
