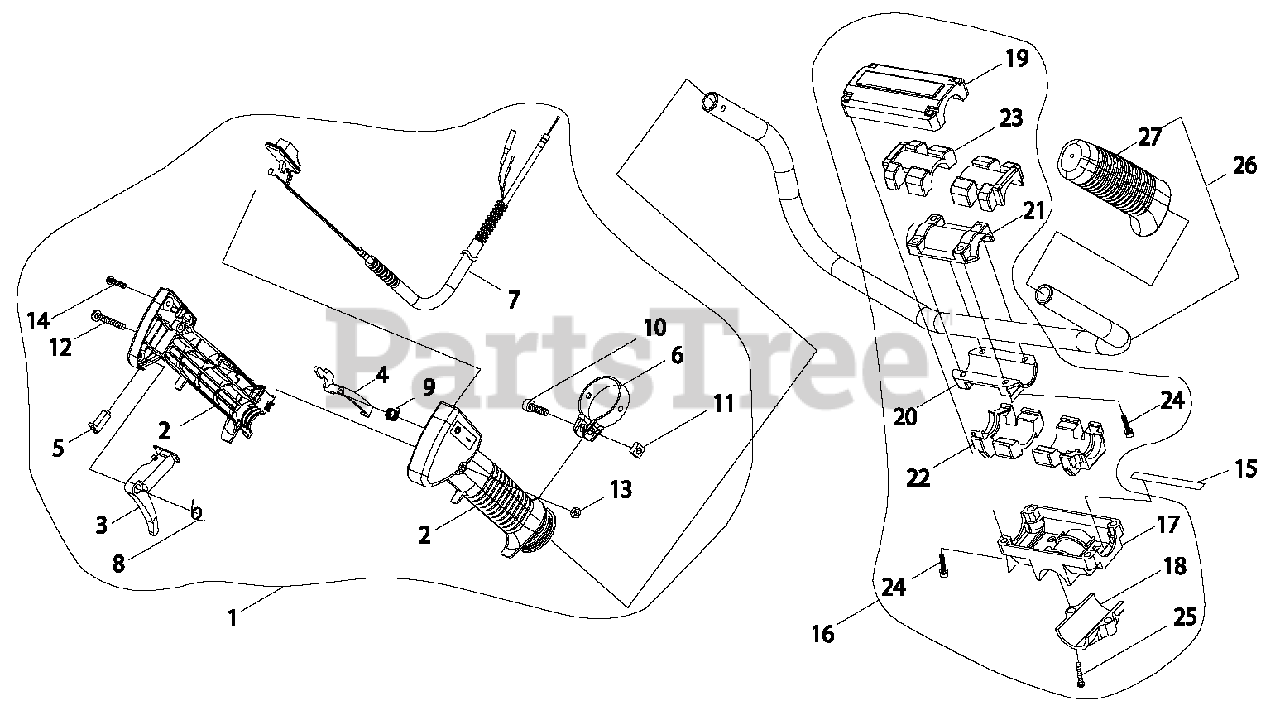

B 450 AUS - Shindaiwa Brush Cutter (SN: 09023591 - 09093850) Throttle Control / Handle Bracket Kit Parts Diagram

Brush Cutter

Throttle Control / Handle Bracket Kit Parts Diagram

  • Title

1

Echo C044000870

CONTROL HANDLE KIT

Note: 72451-14502

$96.99

$

Usually ships in 2-4 days

0

2

Echo P022025110

CONTROL HANDLE ASSY

Note: 72451-14600

$39.99

$

Usually ships in 2-4 days

0

3

Echo C450000530

TRIGGER, THROTTLE

Note: 72451-14530

$8.49

$

Usually ships in 2-4 days

0

4

Echo C460000210

LEVER, LOCK

Note: 72451-14540

$5.49

$

Usually ships in 2-4 days

0

5

Echo C461000050

LOCK, THROTTLE

Note: 72451-14550

$3.49

$

Usually ships in 2-4 days

0

6

Echo V495001510

CLAMP

Note: 72451-14560

$3.49

$

Usually ships in 2-4 days

0

7

Echo V043000530

CONTROL CABLE ASSY

Note: 72451-14570

$56.99

$

Usually ships in 2-4 days

0

8

Echo V452000530

SPRING, RETURN

Note: 72451-14580

$1.99

$

Usually ships in 2-4 days

0

9

Echo V452000540

SPRING, LOCKOUT LEVER

Note: 72451-14590

$2.99

$

Usually ships in 2-4 days

0

10

Echo 90010506020

SCREW - 6X20

Note: 01020-06200

$1.49

$

In Stock, Qty 20+

0

11

Echo V264000140

NUT

Note: 72451-14610

$1.49

$

Usually ships in 2-4 days

0

12

Echo 9158005035

SCREW - 5X35

Note: 11203-05351

$1.49

$

Usually ships in 2-4 days

0

13

Echo 150105030

NUT - 5

Note: 72451-14630

$

$

Currently unavailable

14

Echo V252000190

SCREW - TAPPING

Note: 72451-14620

$1.49

$

Usually ships in 2-4 days

0

15

Echo A430000000

LEAD - GROUND

Note: 72514-14190

$1.99

$

Usually ships in 2-4 days

0

16

Echo P021033250

HANDLE BRACKET KIT
(Superseded to P021033251)

Note: 72555-14100

$65.99

$

Usually ships in 2-4 days

0

17

Echo C423000710

BRACKET, HANDLE - LOWER

Note: 72555-14110

$10.99

$

Usually ships in 2-4 days

0

18

Echo C423000730

BRACKET, MOUNTING

Note: 72555-14120

$5.49

$

Usually ships in 2-4 days

0

19

Echo C423000750

BRACKET, HANDLE - UPPER

Note: 72555-14130

$9.99

$

Usually ships in 2-4 days

0

20

Echo C423000760

CLAMP - LOWER

Note: 22015-14140

$6.99

$

Usually ships in 2-4 days

0

21

Echo C423000770

CLAMP - UPPER

Note: 22015-14150

$6.99

$

Usually ships in 2-4 days

0

22

Echo V420002460

CUSHION - LOWER

Note: 22015-14160

$3.49

$

Usually ships in 2-4 days

0

23

Echo V420002470

CUSHION - UPPER

Note: 22015-14170

$2.49

$

Usually ships in 2-4 days

0

24

Echo V203000630

SCREW - 5X25

Note: 11022-05250

$1.49

$

In Stock, Qty 20+

0

25

Echo 9114206025

SCREW - 6X25

Note: 11210-06250

$1.49

$

Usually ships in 2-4 days

0

26

Echo P021035340

HANDLE KIT

Note: 72540-14201

$89.99

$

Usually ships in 2-4 days

0

27

Echo C403000420

GRIP

Note: 72451-14320

$17.99

$

Usually ships in 2-4 days

0
