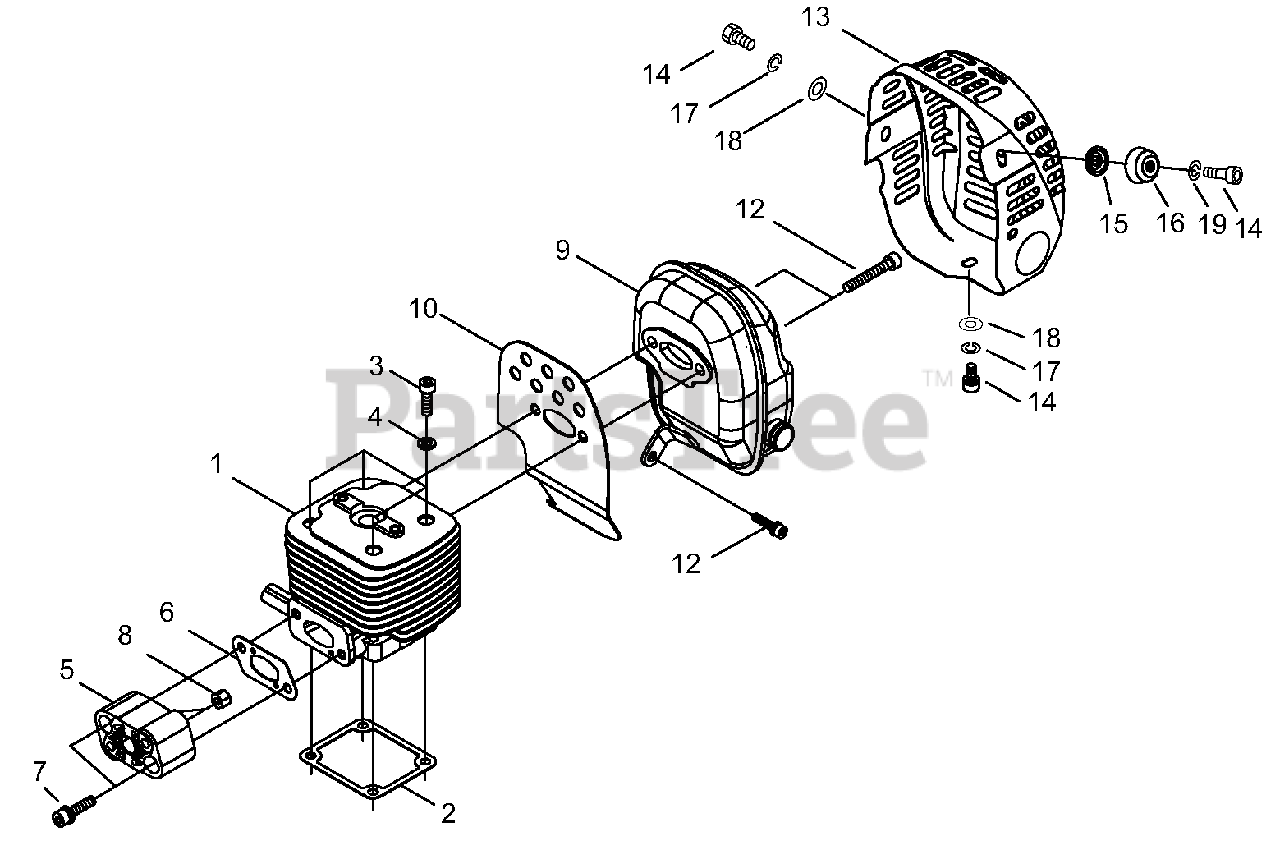

B 450 AUS - Shindaiwa Brush Cutter (SN: 20003851 - 20004630) Cylinder / Intake / Muffler Parts Diagram

Brush Cutter

Cylinder / Intake / Muffler Parts Diagram

  • Title

1

Echo A130001340

CYLINDER

Note: 70210-12111

$69.99

$

In Stock, only 3 left!

0

2

Echo V100000470

GASKET, CYLINDER

Note: 20010-12121

$1.99

$

In Stock, Qty 9

0

3

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 20+

0

4

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, only 4 left!

0

5

Echo A200000640

INSULATOR, INTAKE

Note: 20060-12210

$16.99

$

Usually ships in 2-4 days

0

6

Echo V103000950

GASKET, INTAKE

Note: 20011-12221

$0.99

$

In Stock, Qty 5

0

7

Echo V203000630

SCREW - 5X25

Note: 11022-05250

$0.99

$

In Stock, Qty 20+

0

8

Echo V263000180

NUT

Note: 20024-12260

$0.99

$

Usually ships in 2-4 days

0

9

Echo A300001110

MUFFLER

Note: 70210-15111

$48.99

$

Usually ships in 2-4 days

0

10

Echo V104001330

SHIELD, EXHAUST

Note: 70210-15212

$8.99

$

Usually ships in 2-4 days

0

11

Echo 90010506025

SCREW - 6X25

Note: 01020-06250

$1.49

$

In Stock, only 4 left!

0

12

Echo V203000820

SCREW - 5X12

Note: 11024-05120

$0.99

$

In Stock, Qty 10

0

13

Echo A320000750

COVER, EXHAUST

Note: 70196-15312

$22.99

$

Usually ships in 2-4 days

0

14

Echo 90010905010

SCREW - 5X10

Note: 01020-05105

$0.99

$

In Stock, Qty 20+

0

15

Echo V340000260

WASHER

Note: 70196-32150

$1.49

$

In Stock, only 2 left!

0

16

Echo A459000020

COVER

Note: 70196-32160

$2.49

$

In Stock, Qty 10

0

17

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, only 4 left!

0

18

Echo 90060300005

WASHER - 5

Note: 01613-05080

$0.99

$

In Stock, Qty 20+

0

19

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, only 4 left!

0
