B 450 EMC - Shindaiwa Brush Cutter (SN: 09016415 - 09098884) Clutch, Piston Parts Diagram

Brush Cutter

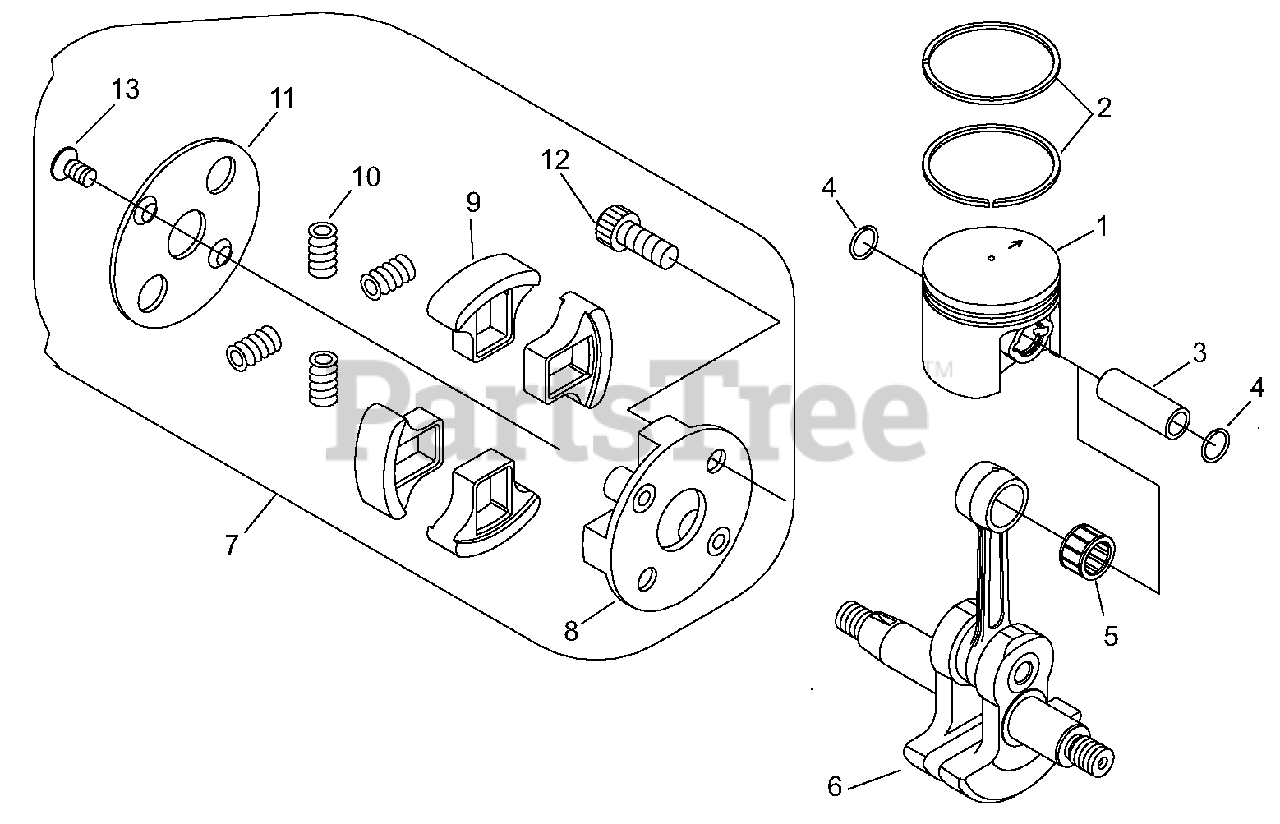

Clutch, Piston Parts Diagram

  • Title

1

Echo A100000670

PISTON

Note: 70210-41110

$31.99

$

In Stock, only 1 left!

0

2

Echo A101000360

RING, PISTON

Note: 22182-41210

$10.99

$

In Stock, Qty 8

0

3

Echo V608000050

PIN, PISTON

Note: 22160-41220

$4.99

$

In Stock, only 1 left!

0

4

Echo V580000110

RING, RETAINING

Note: 22100-41230

$0.99

$

In Stock, Qty 5

0

5

Echo V555000140

BEARING, NEEDLE
(Superseded to V555000180)

Note: 22160-41240

$8.49

$

In Stock, Qty 7

0

6

Echo A011000830

CRANKSHAFT ASSY

Note: 70210-42001

$82.99

$

In Stock, only 1 left!

0

7

Echo A056000450

CLUTCH ASSY
(Superseded to A056000451)

Note: 70210-51100

$55.99

$

In Stock, only 4 left!

0

8

Echo A552000120

HUB, CLUTCH

Note: 20020-51112

$

$

Currently unavailable

9

Echo A555000130

SHOE, CLUTCH

Note: 20020-51121

$4.49

$

In Stock, only 1 left!

0

10

Echo A566000150

SPRING, CLUTCH
(Superseded to A566000220)

Note: 20020-51131

$1.99

$

In Stock, Qty 5

0

11

Echo A551000120

PLATE, CLUTCH

Note: 20020-51140

$6.99

$

Usually ships in 2-4 days

0

12

Echo A557000120

BOLT, CLUTCH

Note: 20020-51150

$2.49

$

In Stock, only 2 left!

0

13

Echo V203000880

SCREW

Note: 70210-51160

$0.99

$

In Stock, Qty 9

0
