B 450 EMC - Shindaiwa Brush Cutter (SN: 09016415 - 09098884) Crankcase / Engine Cover / Fan Cover Parts Diagram

Brush Cutter

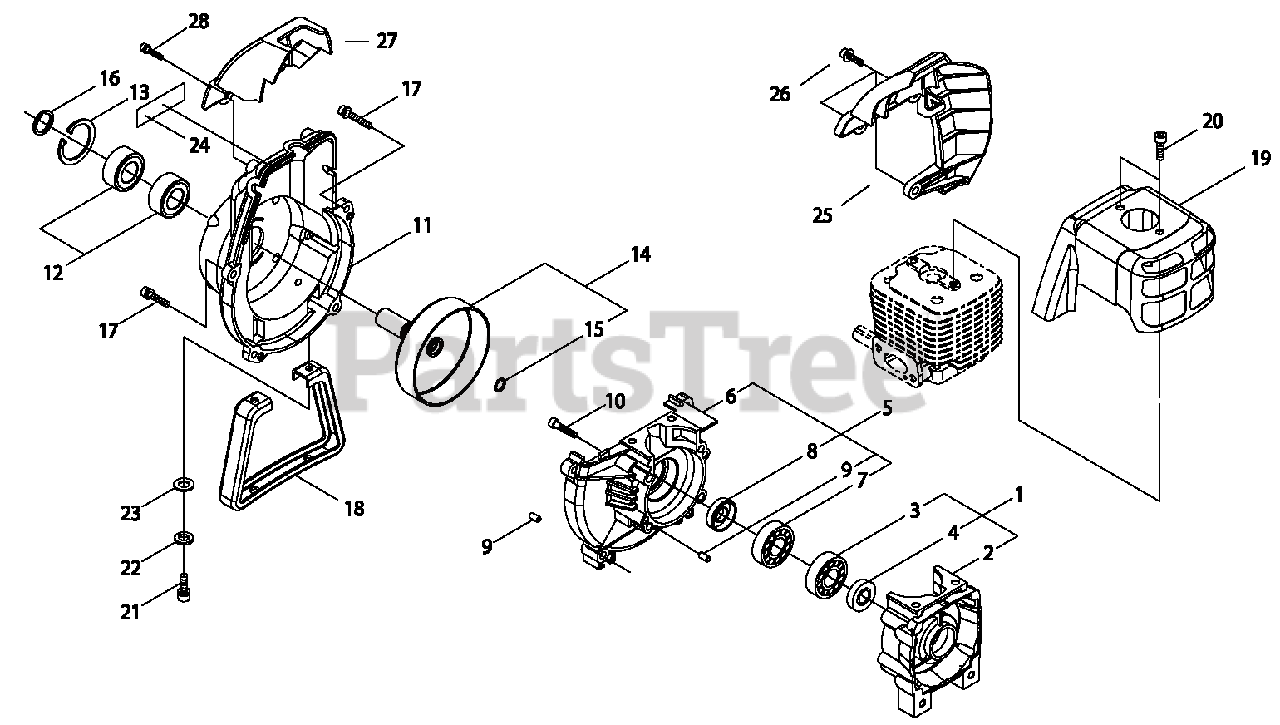

Crankcase / Engine Cover / Fan Cover Parts Diagram

  • Title

1

Echo P021033180

CRANKCASE KIT - REAR
(Superseded to P021033182)

Note: 72540-98310

$95.99

$

Usually ships in 2-4 days

0

2

Echo A120000080

CRANKCASE - REAR
(Superseded to A120000081)

Note: 72935-21111

$50.99

$

Usually ships in 2-4 days

0

3

Echo V592000030

BEARING, BALL - 6202C3
(Superseded to V592000290)

Note: 12900-62020

$8.99

$

Usually ships in 2-4 days

0

4

Echo V508000050

SEAL, OIL - 15

Note: 20010-21211

$7.99

$

In Stock, Qty 11

0

5

Echo P021030050

CRANKCASE KIT - FRONT
(Superseded to P021030051)

Note: 70062-21200

$54.99

$

Usually ships in 2-4 days

0

6

Echo A120000360

CRANKCASE - FRONT

Note: 72921-21121

$45.99

$

Usually ships in 2-4 days

0

7

Echo V592000030

BEARING, BALL - 6202C3
(Superseded to V592000290)

Note: 12900-62020

$8.99

$

Usually ships in 2-4 days

0

8

Echo V508000050

SEAL, OIL - 15

Note: 20010-21211

$7.99

$

In Stock, Qty 11

0

9

Echo V623000060

PIN - LOCATING
(Superseded to 10021502830)

Note: 12492-50100

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90010505030

SCREW - 5X30

Note: 01020-05300

$1.49

$

In Stock, only 4 left!

0

11

Echo A172001300

CASE, FAN
(Superseded to A172002310)

Note: 70012-31111

$63.99

$

Usually ships in 2-4 days

0

12

Echo 90080206002

BEARING, BALL - 6002

Note: 02006-06002

$19.99

$

In Stock, only 2 left!

0

13

Echo 9242432000

RING, RETAINING - 32

Note: 02432-32120

$1.49

$

In Stock, only 3 left!

0

14

Echo A055000020

CLUTCH DRUM KIT
(Superseded to A556001790)

Note: 20021-31200

$49.99

$

Usually ships in 2-4 days

0

15

Echo V582000090

RING, RETAINING - 11

Note: 20021-31220

$1.49

$

Usually ships in 2-4 days

0

16

Echo V583000180

RING, RETAINING
(Superseded to V583000181)

Note: 20011-31230

$0.99

$

Usually ships in 2-4 days

0

17

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

Note: 11022-05200

$1.49

$

In Stock, Qty 5

0

18

Echo A175000180

GUARD, FUEL TANK

Note: 70200-33112

$11.99

$

In Stock, only 2 left!

0

19

Echo A160001640

COVER, ENGINE

Note: 70210-32111

$51.99

$

In Stock, only 1 left!

0

20

Echo V203001140

SCREW - 5X14

Note: 11024-05140

$1.49

$

Usually ships in 2-4 days

0

21

Echo V203000910

SCREW

Note: 70210-33120

$1.99

$

Usually ships in 2-4 days

0

22

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, Qty 10

0

23

Echo 90060300005

WASHER - 5

Note: 01613-05080

$0.99

$

In Stock, Qty 20+

0

24

Echo X543001390

LABEL - MODEL

Note: 70210-31150

$2.99

$

Usually ships in 2-4 days

0

25

Echo A162000180

PROTECTOR ASSY

Note: 20011-34100

$6.49

$

In Stock, only 1 left!

0

26

Echo V202000300

SCREW - 4X16
(Superseded to 9111304016)

Note: 11024-04160

$1.49

$

In Stock, Qty 10

0

27

Echo A162000190

PROTECTOR

Note: 70131-34100

$7.49

$

Usually ships in 2-4 days

0

28

Echo V202000300

SCREW - 4X16
(Superseded to 9111304016)

Note: 11024-04160

$1.49

$

In Stock, Qty 10

0
