B 450 EMC - Shindaiwa Brush Cutter (SN: 09016415 - 09098884) Throttle Control Parts Diagram

Brush Cutter

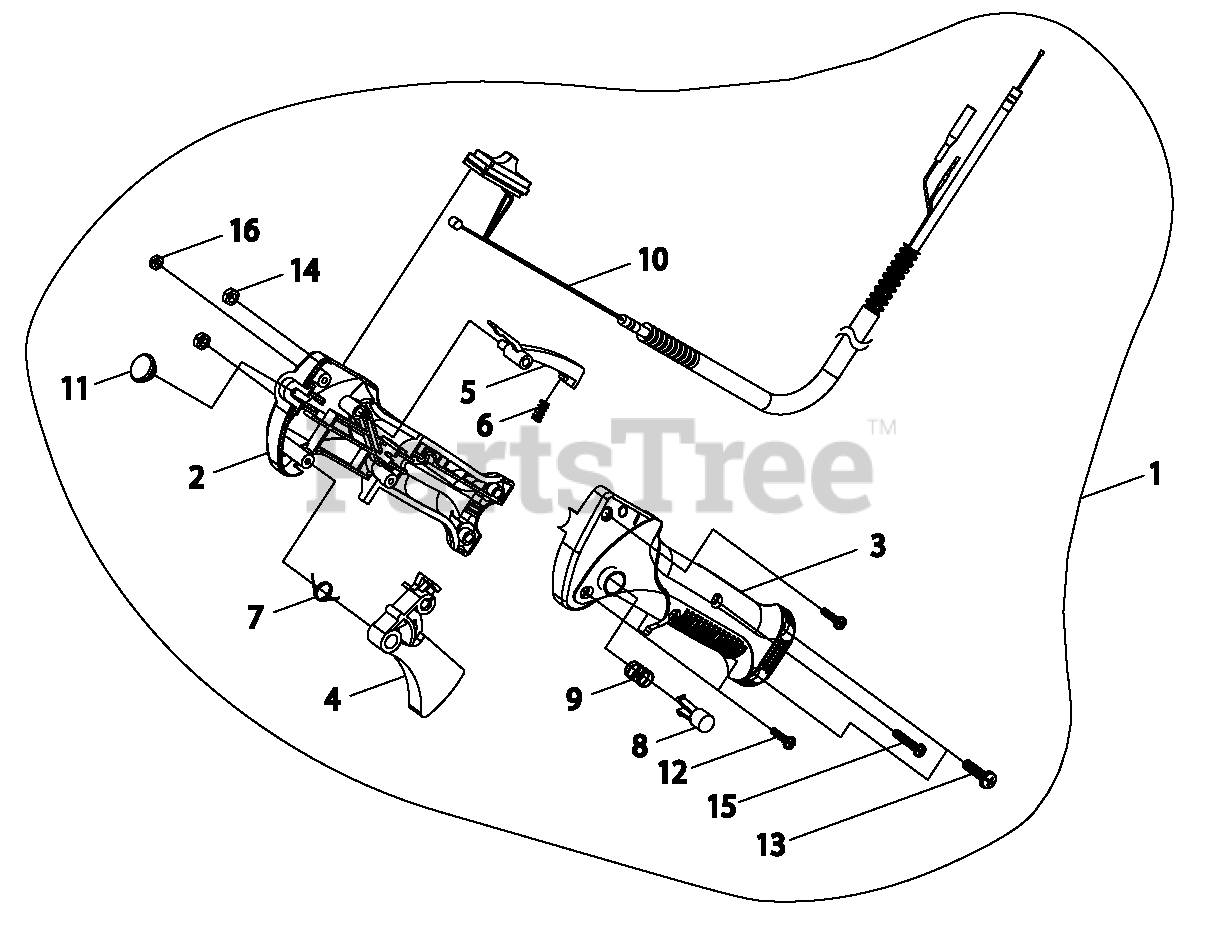

Throttle Control Parts Diagram

  • Title

1

Echo C044000880

THROTTLE CONTROL ASSY
(Superseded to C044000881)

Note: 64007-64253

$78.99

$

Usually ships in 2-4 days

0

2

Echo C412000430

CONTROL HANDLE - RIGHT

Note: 72550-14512

$23.99

$

In Stock, only 2 left!

0

3

Echo C412000440

CONTROL HANDLE - LEFT
(Superseded to P021044960)

Note: 72550-14522

$24.99

$

Usually ships in 2-4 days

0

4

Echo C450000580

TRIGGER, THROTTLE
(Superseded to C450000581)

Note: 70871-65130

$4.99

$

In Stock, only 1 left!

0

5

Echo C460000240

LOCKOUT, THROTTLE
(Superseded to C460000241)

Note: 70871-65140

$2.49

$

In Stock, only 1 left!

0

6

Echo V450001020

SPRING, COMPRESSION

Note: 70871-65150

$1.49

$

In Stock, Qty 8

0

7

Echo V452000690

SPRING, TORSION

Note: 70871-65160

$1.49

$

In Stock, Qty 9

0

8

Echo C461000080

BUTTON, THROTTLE LOCK

Note: 70871-65170

$2.49

$

Usually ships in 2-4 days

0

9

Echo V450001010

SPRING, COMPRESSION

Note: 70871-65180

$1.49

$

In Stock, only 3 left!

0

10

Echo V043000540

CABLE ASSY, CONTROL

Note: 64007-64310

$53.99

$

Usually ships in 2-4 days

0

11

Echo V162000410

PLUG, RUBBER

Note: 22150-33630

$2.99

$

Usually ships in 2-4 days

0

12

Echo V252000360

SCREW, TAPPING 4×16

Note: 70871-65311

$1.49

$

Usually ships in 2-4 days

0

13

Echo V253000580

SCREW M5×20

Note: 70871-65320

$1.49

$

In Stock, Qty 10

0

14

Echo 9201705000

NUT M5

Note: 01501-05030

$1.49

$

In Stock, Qty 10

0

15

Echo V252000090

SCREW M4×23

Note: 70871-65330

$0.99

$

Usually ships in 2-4 days

0

16

Echo V262000100

NUT M4

Note: 70871-65340

$1.49

$

In Stock, Qty 7

0
