B 450 EMC - Shindaiwa Brush Cutter (SN: 20008885 - 20012244) Air Filter Parts Diagram

Brush Cutter

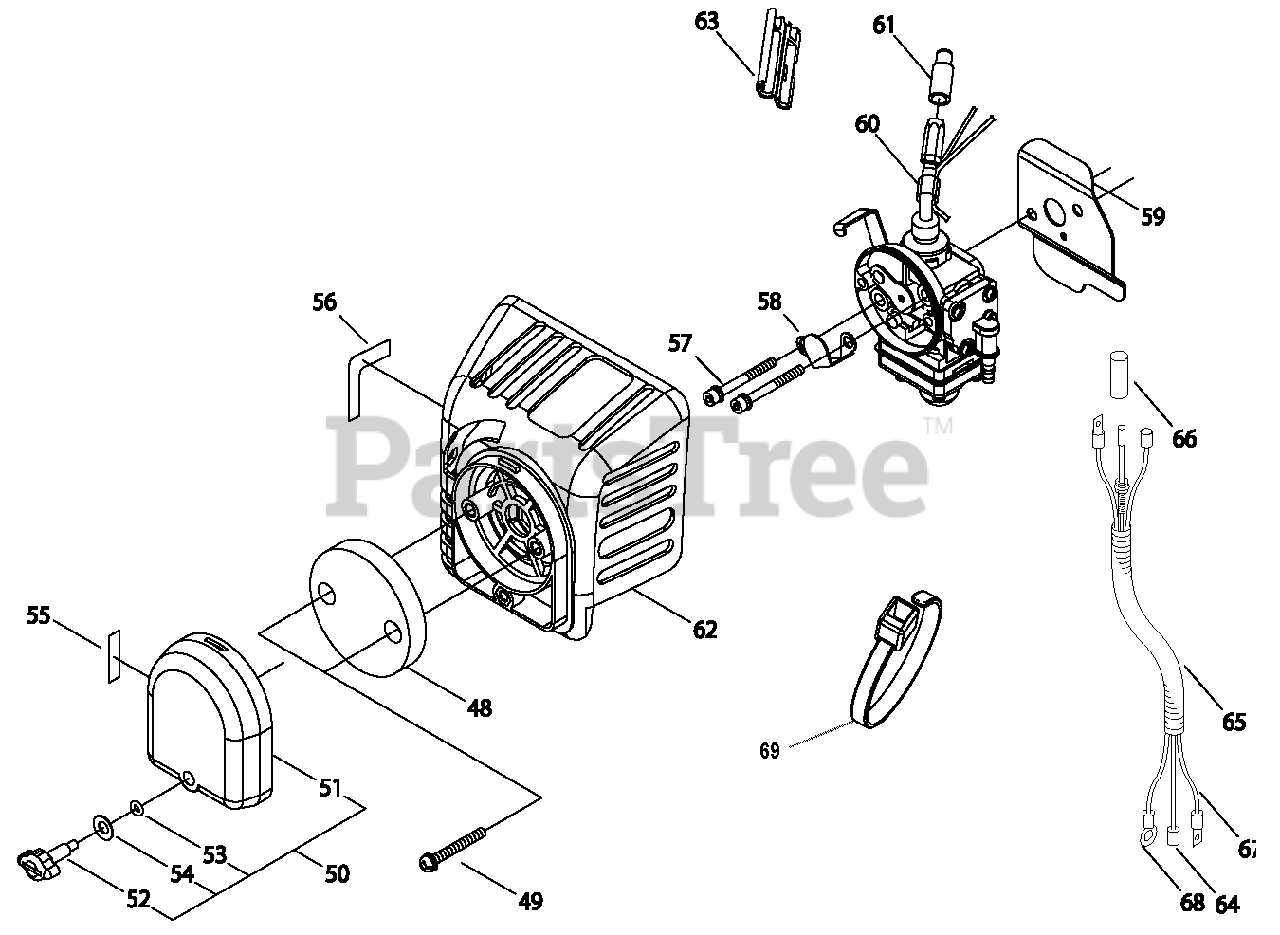

Air Filter Parts Diagram

  • Title

48

Echo A226000650

FILTER, AIR

Note: 20056-81740

$1.99

$

In Stock, Qty 20+

0

49

Echo V252000200

SCREW M4×25

Note: 11260-04250

$1.49

$

In Stock, only 1 left!

0

50

Echo A232000820

COVER ASSY, AIR FILTER

Note: 20060-81761

$15.99

$

In Stock, only 2 left!

0

51

Echo A232000830

COVER, AIR FILTER

Note: 20060-81770

$4.99

$

Usually ships in 2-4 days

0

52

Echo A235000220

THUMBSCREW

Note: 20060-81781

$4.99

$

Usually ships in 2-4 days

0

53

Echo V581000200

O-RING

Note: 22100-82430

$1.49

$

In Stock, only 4 left!

0

54

Echo V347000030

WASHER, CONE M6

Note: 20024-81790

$1.49

$

In Stock, Qty 20+

0

55

Echo X506000130

LABEL, CHOKE

Note: 19404-00008

$1.49

$

In Stock, Qty 6

0

56

Echo X524002460

LABEL, CARBURETOR

Note: 19404-00010

$1.49

$

Usually ships in 2-4 days

0

57

Echo V203000890

BOLT
(Superseded to V203000891)

Note: 11022-05550

$1.99

$

Usually ships in 2-4 days

0

58

Echo A244000170

PLATE

Note: 70131-81750

$2.99

$

In Stock, Qty 11

0

59

Echo V103001010

GASKET, CARBURETOR

Note: 20021-83411

$6.49

$

Usually ships in 2-4 days

0

60

Echo V475004760

TUBE, PROTECTIVE

Note: 20060-83180

$1.49

$

Usually ships in 2-4 days

0

61

Echo A246000020

CAP, CARBURETOR

Note: 20005-83160

$1.49

$

In Stock, Qty 13

0

62

Echo A225000490

CASE, AIR FILTER

Note: 70102-81710

$10.99

$

In Stock, Qty 20+

0

63

Echo C482000070

CAP, DUST

Note: 72550-82120

$6.49

$

Usually ships in 2-4 days

0

64

Echo V430002900

CABLE, THROTTLE

Note: 70210-83110

$9.99

$

Usually ships in 2-4 days

0

65

Echo V475004800

TUBE, FLEXIBLE

Note: 70210-83140

$1.99

$

Usually ships in 2-4 days

0

66

Echo V475004810

SLEEVE

Note: 20037-82130

$1.49

$

Usually ships in 2-4 days

0

67

Echo V485001650

LEAD - IGNITION

Note: 70210-83130

$2.99

$

Usually ships in 2-4 days

0

68

Echo V485001660

LEAD - GROUND

Note: 70210-83120

$2.49

$

Usually ships in 2-4 days

0

69

Echo V495001530

TIE, CABLE

Note: 15210-12303

$1.49

$

Usually ships in 2-4 days

0
