B 450 F - Shindaiwa Brush Cutter (SN: U16026001001 - U16026999999) ENGINE Parts Diagram

Brush Cutter

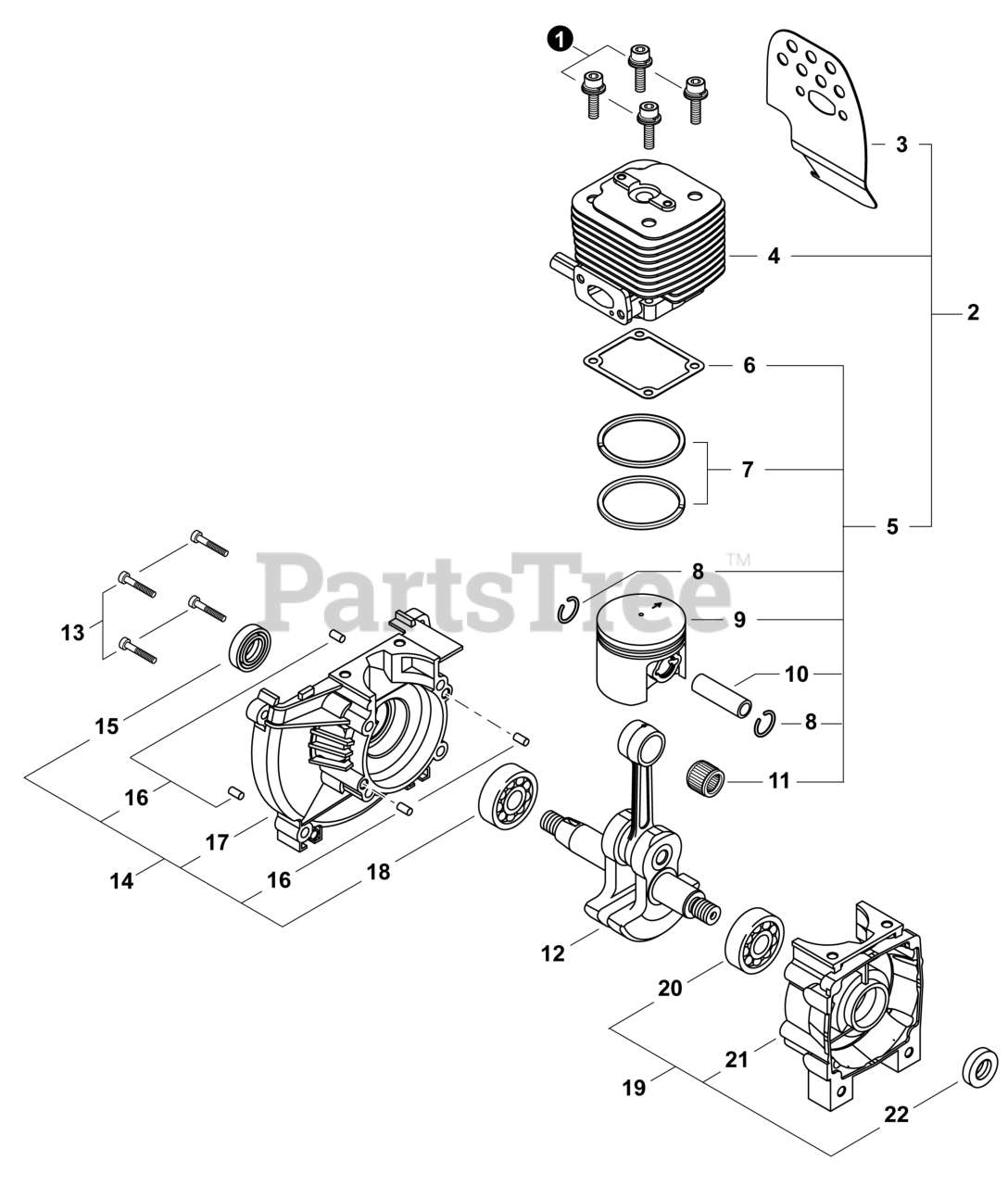

ENGINE Parts Diagram

  • Title

1

Echo 9112205025

BOLT M5×25

$1.99

$

Usually ships in 2-4 days

0

2

Echo P021027040

REPAIR KIT, ENGINE

Note: Includes items 3-11

$193.99

$

Usually ships in 2-4 days

0

3

Echo V104001330

HEAT SHIELD, EXHAUST

$10.99

$

In Stock, only 4 left!

0

4

Echo A130001340

CYLINDER

$75.99

$

In Stock, only 1 left!

0

5

Echo 99909-450

PISTON KIT

Note: Includes items 6-11

$60.99

$

Usually ships in 2-4 days

0

6

Echo V100000470

GASKET, CYLINDER

$1.99

$

In Stock, only 4 left!

0

7

Echo A101000360

RING, PISTON

$11.99

$

In Stock, Qty 8

0

8

Echo V580000110

RING, SNAP

$1.49

$

In Stock, Qty 10

0

9

Echo A100000670

PISTON

$33.99

$

In Stock, only 1 left!

0

10

Echo V608000050

PIN, PISTON

$5.99

$

In Stock, only 1 left!

0

11

Echo V555000140

BEARING, NEEDLE
(Superseded to V555000180)

$9.99

$

In Stock, only 4 left!

0

12

Echo A011000820

CRANKSHAFT
(Superseded to Discontinued)

$

$

Not available

13

Echo 90010505030

BOLT 5×30

$1.49

$

In Stock, only 4 left!

0

14

Echo P021030051

CRANKCASE ASSY, M

Note: Includes items 15-18

$54.99

$

Usually ships in 2-4 days

0

15

Echo V508000050

SEAL, OIL 16

$7.99

$

In Stock, Qty 11

0

16

Echo 90033050100

PIN, LOCATING 5×10

$1.49

$

Usually ships in 2-4 days

0

17

Echo A120001120

CRANKCASE M

$50.99

$

Usually ships in 2-4 days

0

18

Echo V592000290

BEARING, BALL 6202 C3

$8.99

$

Usually ships in 2-4 days

0

19

Echo P021033432

CRANKCASE ASSY, S

Note: Includes items 20-22

$28.99

$

Usually ships in 2-4 days

0

20

Echo V592000290

BEARING, BALL 6202 C3

$8.99

$

Usually ships in 2-4 days

0

21

Echo A120000082

CRANKCASE S

$50.99

$

Usually ships in 2-4 days

0

22

Echo V508000050

SEAL, OIL 16

$7.99

$

In Stock, Qty 11

0
