B 450 R - Shindaiwa Brush Cutter (SN: T24225001001 - T24225999999) ENGINE Parts Diagram

Brush Cutter

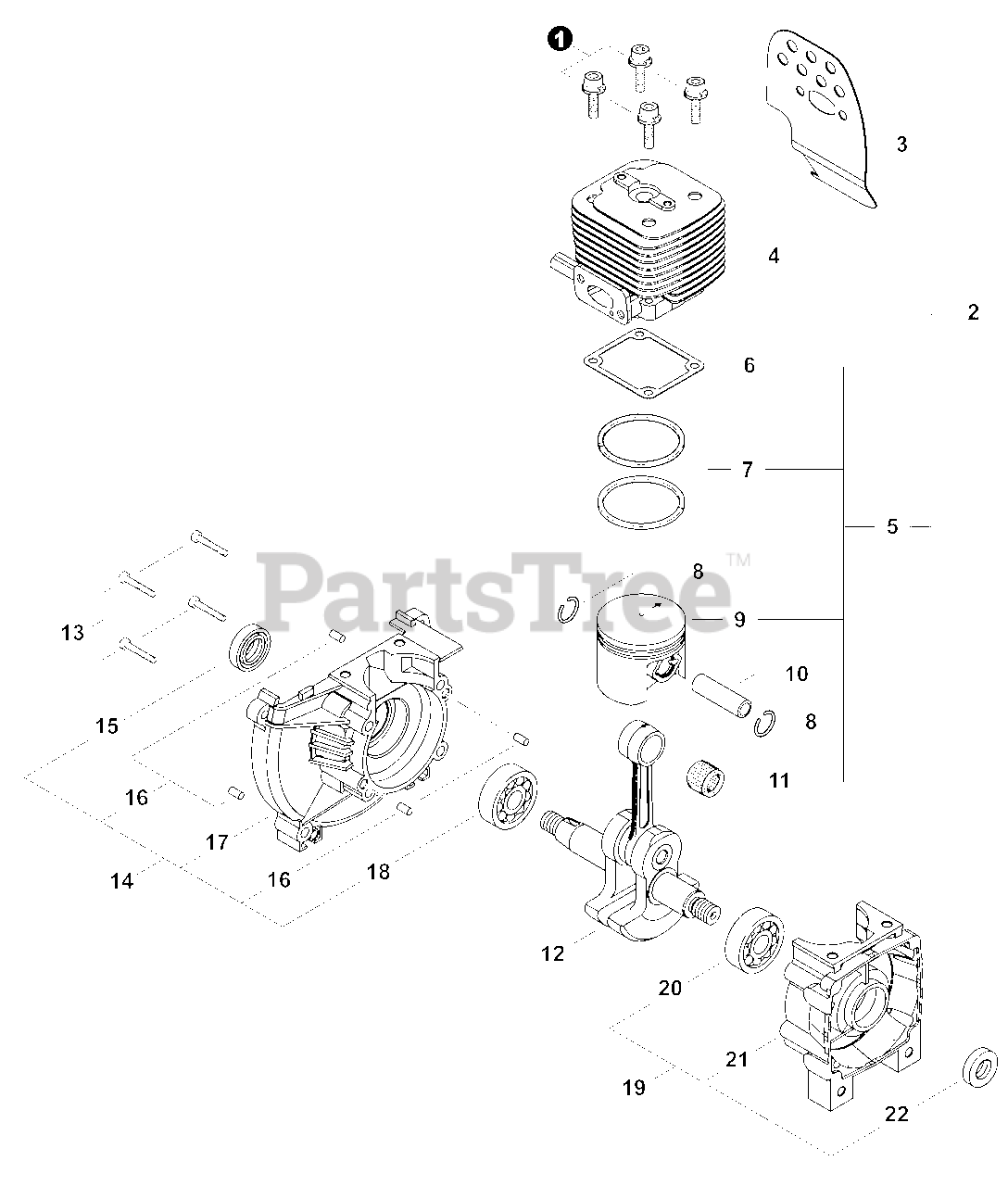

ENGINE Parts Diagram

  • Title

1

Echo 9112205025

BOLT M5x25

$1.99

$

Usually ships in 2-4 days

0

2

Echo P021027040

REPAIR KIT, ENGINE

Note: Includes items 3-11 60020-98310

$193.99

$

Usually ships in 2-4 days

0

3

Echo V104001330

HEAT SHIELD, EXHAUST

Note: 70210-15212

$10.99

$

In Stock, only 3 left!

0

4

Echo A130001340

CYLINDER

Note: 70210-12111

$75.99

$

In Stock, only 1 left!

0

5

Echo 99909-450

PISTON KIT

Note: Includes items 6-11 99909-450

$60.99

$

Usually ships in 2-4 days

0

6

Echo V100000470

GASKET, CYLINDER

Note: 20010-12121

$1.99

$

In Stock, only 4 left!

0

7

Echo A101000360

RING, PISTON

Note: 22182-41210

$11.99

$

In Stock, Qty 8

0

8

Echo V580000110

RING, SNAP

Note: 22100-41230

$1.49

$

In Stock, Qty 10

0

9

Echo A100000670

PISTON

Note: 70210-41110

$33.99

$

In Stock, only 1 left!

0

10

Echo V608000050

PIN, PISTON

Note: 22160-41220

$5.99

$

In Stock, only 1 left!

0

11

Echo V555000140

BEARING, NEEDLE
(Superseded to V555000180)

Note: 22160-41240

$9.99

$

In Stock, only 2 left!

0

12

Echo A011000830

CRANKSHAFT

Note: 70210-42001

$88.99

$

Usually ships in 2-4 days

0

13

Echo 90010505030

BOLT 5x30

Note: 01020-05300

$1.49

$

In Stock, only 2 left!

0

14

Echo P021030050

CRANKCASE ASSY, M
(Superseded to P021030051)

Note: Includes items 15-18 70062-21200

$54.99

$

Usually ships in 2-4 days

0

15

Echo V508000050

SEAL, OIL 16

Note: 20010-21211

$7.99

$

In Stock, Qty 11

0

16

Echo 90033050100

PIN, LOCATING 5x10

Note: 12492-50100

$1.49

$

Usually ships in 2-4 days

0

17

Echo A120000360

CRANKCASE M

Note: 72921-21121

$45.99

$

Usually ships in 2-4 days

0

18

Echo V592000290

BEARING, BALL 6202 C3

Note: 12900-62020

$8.99

$

Usually ships in 2-4 days

0

19

Echo P021033430

CRANKCASE ASSY, S
(Superseded to P021033431)

Note: Includes items 20-22 72935-21101

$28.99

$

Usually ships in 2-4 days

0

20

Echo V592000290

BEARING, BALL 6202 C3

Note: 12900-62020

$8.99

$

Usually ships in 2-4 days

0

21

Echo A120000080

CRANKCASE S
(Superseded to A120000081)

Note: 72935-21111

$50.99

$

Usually ships in 2-4 days

0

22

Echo V508000050

SEAL, OIL 16

Note: 20010-21211

$7.99

$

In Stock, Qty 11

0
