B 450 R - Shindaiwa Brush Cutter (SN: T24225001001 - T24225999999) FUEL SYSTEM Parts Diagram

Brush Cutter

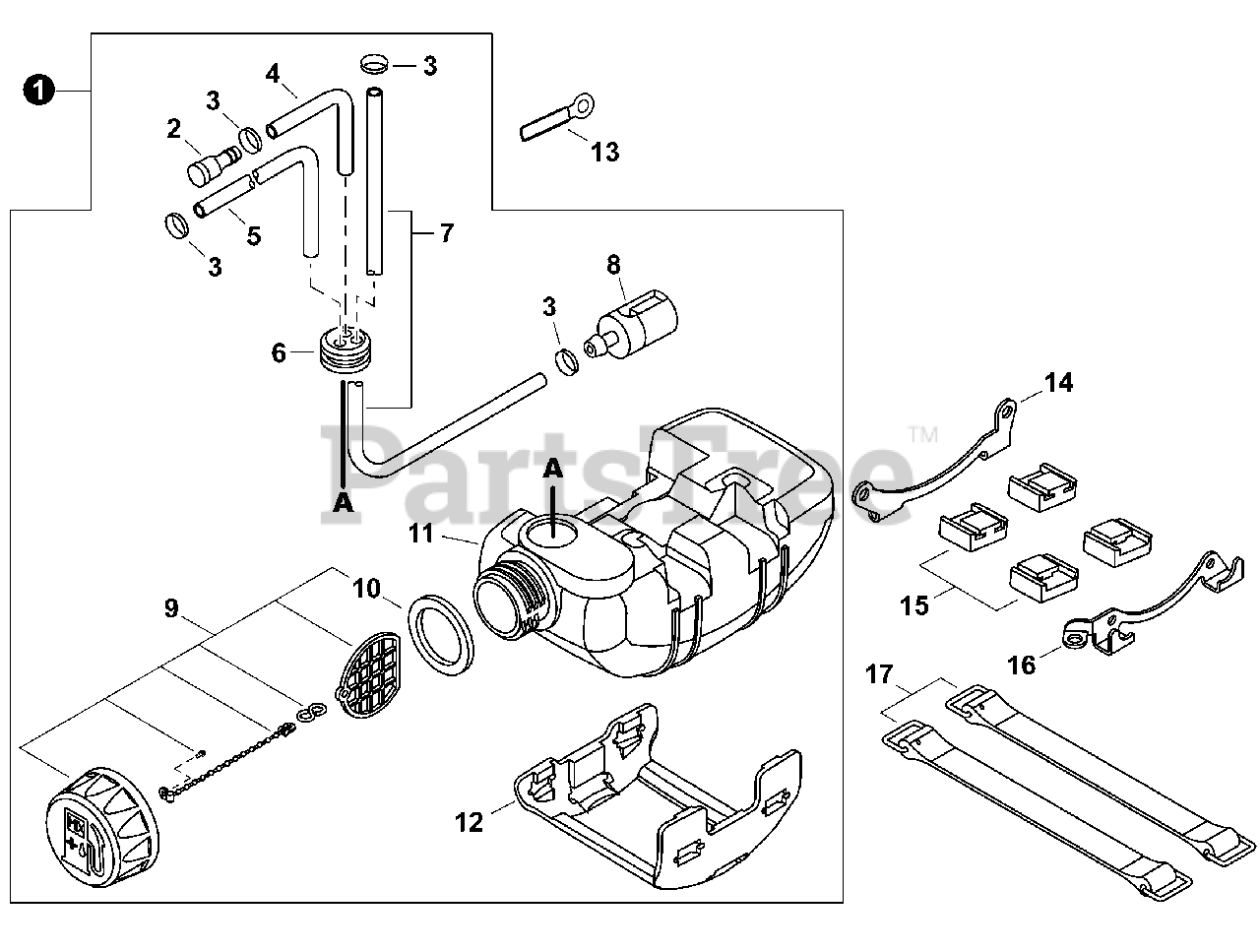

FUEL SYSTEM Parts Diagram

  • Title

1

Echo P021036463

TANK ASSY, FUEL
(Superseded to P021036464)

Note: Includes items 2-12

$47.99

$

In Stock, only 2 left!

0

2

Echo A356000050

VENT ASSY

Note: 22197-33960

$8.49

$

In Stock, only 3 left!

0

3

Echo V490000500

CLIP 6

Note: 20020-85540

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000760

PIPE 3x6x90 MM
(Superseded to V471000761)

$1.49

$

In Stock, Qty 14

0

5

Echo 13201049030

PIPE, FUEL 3x6x50 YELLOW

$1.99

$

In Stock, Qty 20+

0

6

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

7

Echo V471000750

PIPE, FUEL 3x5x260 BLACK
(Superseded to V471000751)

$7.99

$

Usually ships in 2-4 days

0

8

Echo A369000101

FILTER, FUEL
(Superseded to A369000460)

Note: 22169-35400

$9.49

$

In Stock, Qty 20+

0

9

Echo A033000330

CAP ASSY, FUEL

Note: Includes item 10 70168-85201

$7.49

$

In Stock, Qty 14

0

10

Echo V107000010

GASKET, FUEL CAP

Note: 20000-85221

$1.99

$

In Stock, Qty 20+

0

11

Echo A350001361

TANK, FUEL

Note: A350001360

$24.99

$

Usually ships in 2-4 days

0

12

Echo A175000200

GUARD, FUEL TANK

Note: 70005-86131

$8.99

$

In Stock, only 1 left!

0

13

Echo 15911222131

CLIP

$1.49

$

Usually ships in 2-4 days

0

14

Echo A393000190

BRACKET M

Note: 20011-86120

$2.49

$

Usually ships in 2-4 days

0

15

Echo V420002390

CUSHION, FUEL TANK

Note: 20010-86130

$0.99

$

In Stock, Qty 20+

0

16

Echo A393000180

BRACKET S

Note: 20021-86110

$3.49

$

Usually ships in 2-4 days

0

17

Echo A392000060

STRAP, FUEL TANK

Note: 20020-86140

$4.49

$

In Stock, Qty 13

0
