B 450 R - Shindaiwa Brush Cutter (SN: T24225001001 - T24225999999) HANDLEBAR Parts Diagram

Brush Cutter

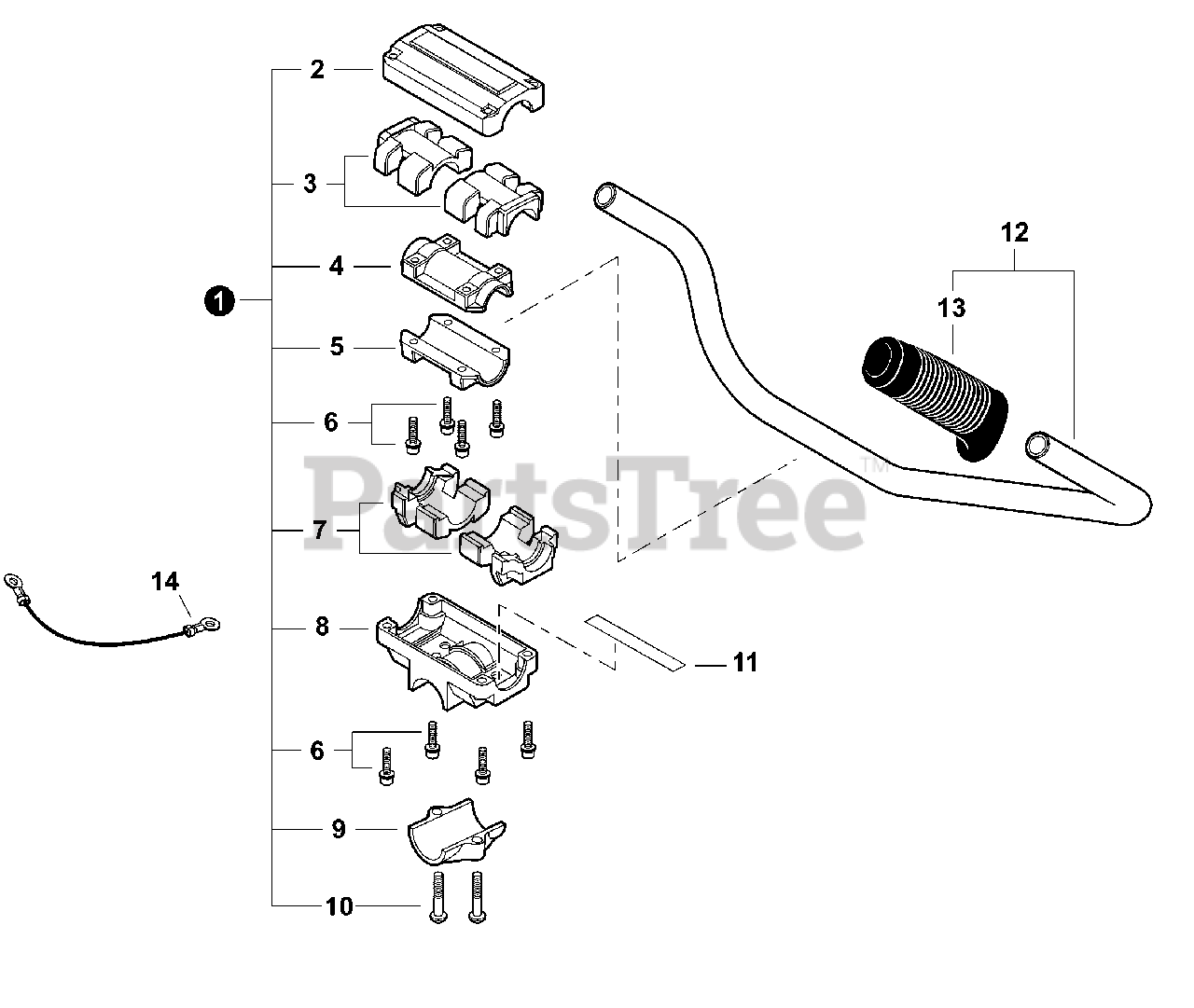

HANDLEBAR Parts Diagram

  • Title

1

Echo P021031460

BRACKET KIT, HANDLEBAR
(Superseded to P021031461)

Note: Includes items 2-10 72017-14100

$54.99

$

Usually ships in 2-4 days

0

2

Echo C423000740

CLAMP, UPPER

Note: 72017-14130

$10.99

$

Usually ships in 2-4 days

0

3

Echo V420002470

CUSHION, UPPER

Note: 22015-14170

$2.49

$

Usually ships in 2-4 days

0

4

Echo C423000770

CLAMP, UPPER

Note: 22015-14150

$6.49

$

Usually ships in 2-4 days

0

5

Echo C423000760

CLAMP, LOWER

Note: 22015-14140

$6.49

$

Usually ships in 2-4 days

0

6

Echo V203000630

BOLT M5x25

Note: 11022-05250

$1.49

$

In Stock, Qty 20+

0

7

Echo V420002460

CUSHION, LOWER

Note: 22015-14160

$2.99

$

Usually ships in 2-4 days

0

8

Echo C423000700

BRACKET, HANDLE 28

Note: 72017-14110

$12.99

$

In Stock, only 1 left!

0

9

Echo C423000720

CLAMP, LOWER 28

Note: 72017-14120

$6.99

$

Usually ships in 2-4 days

0

10

Echo 9114206025

SCREW M6x25

Note: 11210-06250

$0.99

$

Usually ships in 2-4 days

0

11

Echo A430000000

LEAD - GROUND

Note: 72514-14190

$1.99

$

Usually ships in 2-4 days

0

12

Echo P021035440

HANDLEBAR ASSY

Note: Includes items 13 72550-14200

$130.99

$

In Stock, only 1 left!

0

13

Echo C403000420

GRIP

Note: 72451-14320

$16.99

$

Usually ships in 2-4 days

0

14

Echo V485001670

LEAD - GROUND

Note: 70198-31510

$2.99

$

Usually ships in 2-4 days

0
