B 450 R - Shindaiwa Brush Cutter (SN: T24225001001 - T24225999999) RECOIL STARTER Parts Diagram

Brush Cutter

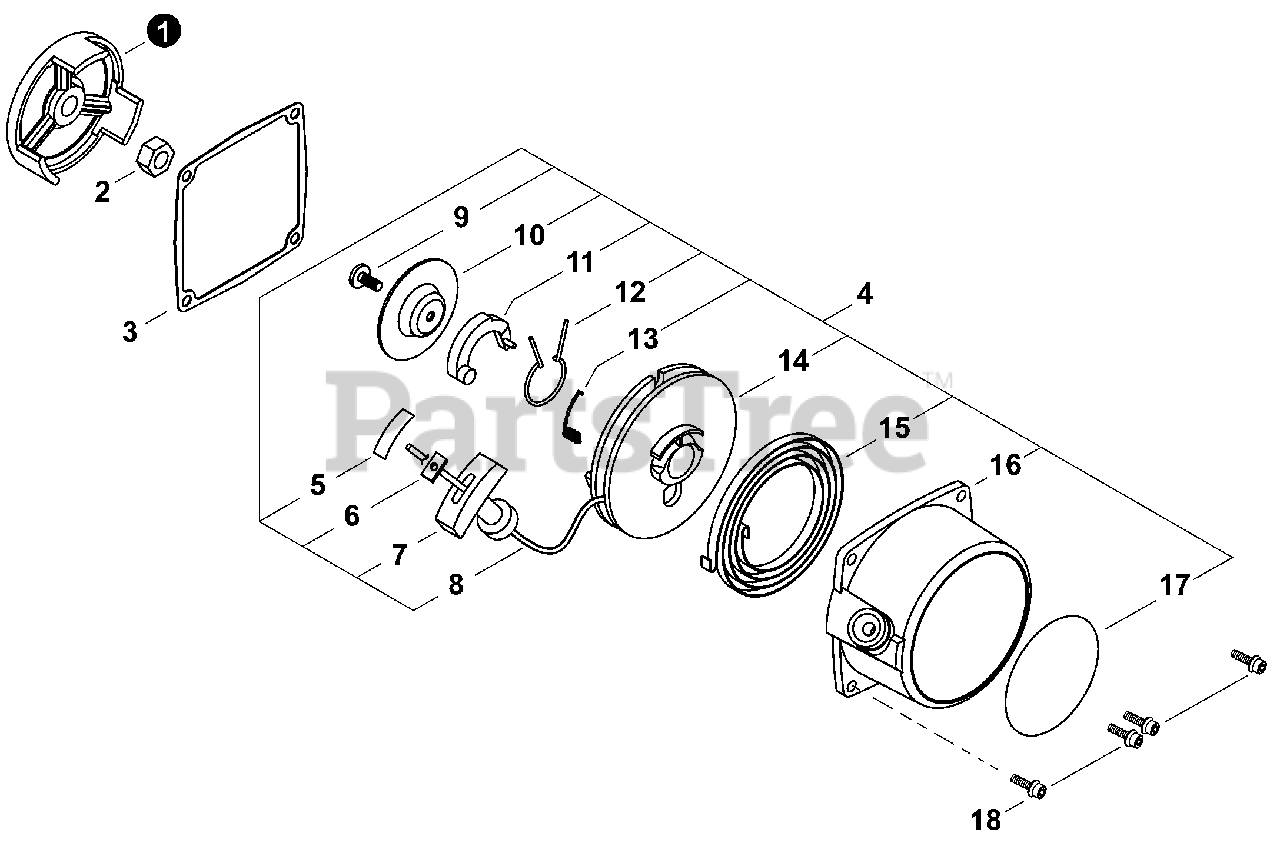

RECOIL STARTER Parts Diagram

  • Title

1

Echo A520000171

PULLEY, STARTER
(Superseded to A520000172)

$5.99

$

Usually ships in 2-4 days

0

2

Echo V265000170

NUT M8xH5

Note: 20000-76210

$1.49

$

Usually ships in 2-4 days

0

3

Echo V105000030

GASKET, RECOIL STARTER
(Superseded to V105000031)

Note: 20020-76111

$1.99

$

In Stock, Qty 6

0

4

Echo P021038311

STARTER ASSY, RECOIL

Note: Includes items 5-17

$87.99

$

Usually ships in 2-4 days

0

5

Echo X707000050

TAPE

Note: 20010-75230

$1.99

$

Usually ships in 2-4 days

0

6

Echo A522000040

RETAINER, ROPE
(Superseded to 17724611120)

Note: 20010-75210

$2.49

$

In Stock, only 2 left!

0

7

Echo A511000160

GRIP, STARTER
(Superseded to 17722827030)

Note: 20010-75190

$7.49

$

In Stock, only 3 left!

0

8

Echo A509000190

ROPE, STARTER

Note: 20020-75180

$10.99

$

Usually ships in 2-4 days

0

9

Echo V253000470

SCREW

Note: 20000-75170

$1.49

$

Usually ships in 2-4 days

0

10

Echo A518000050

PLATE, FRICTION

Note: 20000-75150

$6.99

$

Usually ships in 2-4 days

0

11

Echo A514000130

RATCHET

Note: 20000-75130

$2.99

$

In Stock, Qty 8

0

12

Echo V452000550

SPRING, FRICTION

Note: 20000-75160

$3.49

$

In Stock, only 1 left!

0

13

Echo V452000560

SPRING, RETURN

Note: 20000-75220

$1.99

$

Usually ships in 2-4 days

0

14

Echo A506000270

REEL, ROPE

Note: 20020-75120

$12.99

$

Usually ships in 2-4 days

0

15

Echo A504000140

SPRING, RECOIL
(Superseded to 17722005730)

Note: 20020-75140

$19.99

$

Usually ships in 2-4 days

0

16

Echo A500000881

CASE, RECOIL STARTER

$29.99

$

Usually ships in 2-4 days

0

17

Echo X504002770

LABEL - RECOIL STARTER

Note: 19420-00027

$2.99

$

In Stock, Qty 11

0

18

Echo V202000581

BOLT M4x16

$1.49

$

Usually ships in 2-4 days

0
