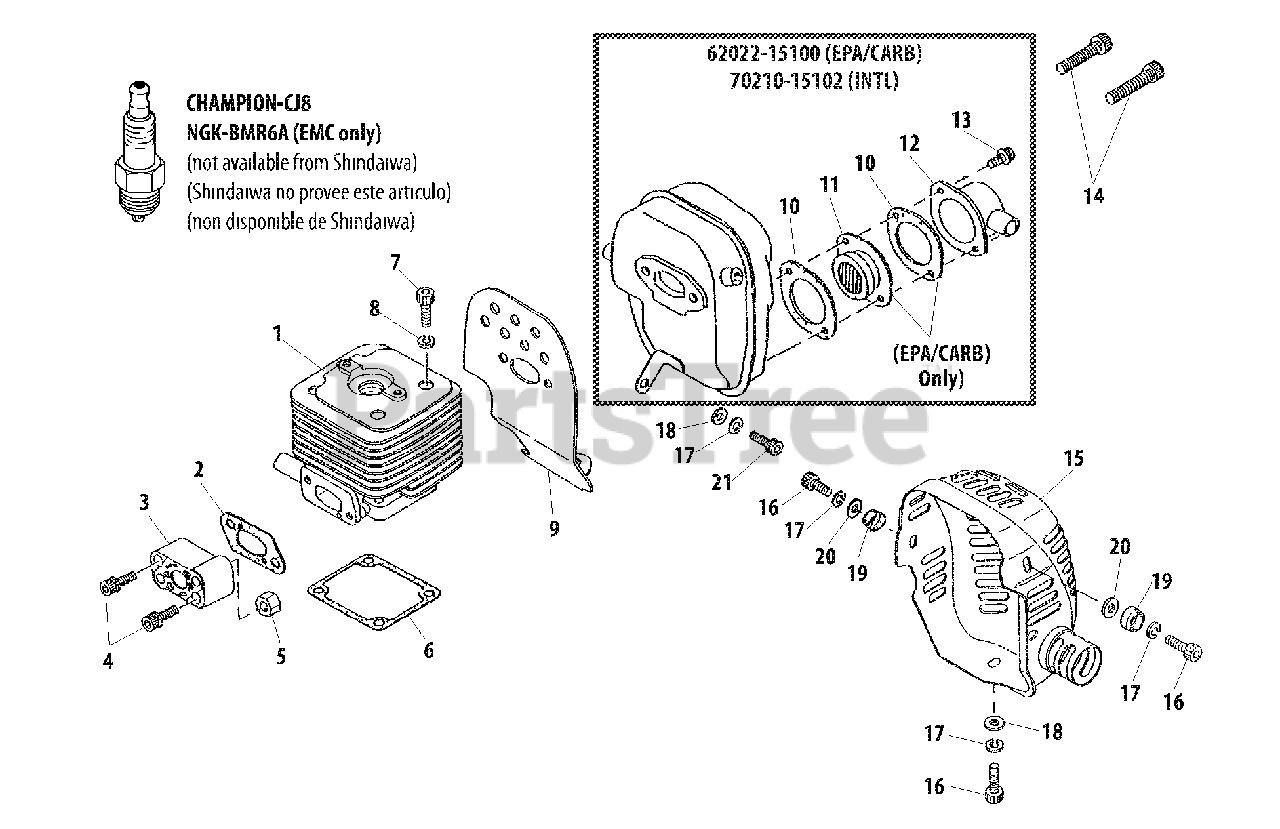

B 450 - Shindaiwa Brush Cutter (Original Version) Cylinder, Muffler Parts Diagram

Brush Cutter

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 70210-12111

CYLINDER
(Superseded to A130001340)

$75.99

$

In Stock, only 1 left!

0

2

Echo 20011-12220

GASKET, INTAKE
(Superseded to 20011-12221)

$1.49

$

In Stock, Qty 5

0

3

Echo 20060-12210

INSULATOR
(Superseded to A200000640)

$19.99

$

Usually ships in 2-4 days

0

4

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$1.49

$

In Stock, Qty 20+

0

5

Echo 20024-12260

NUT
(Superseded to V263000180)

$1.49

$

In Stock, only 4 left!

0

6

Echo 20010-12120

GASKET, CYLINDER
(Superseded to 20010-12121)

$1.99

$

In Stock, only 4 left!

0

7

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 11

0

8

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

9

Echo 70210-15210

GASKET, EXHAUST
(Superseded to 70210-15211)

$10.99

$

In Stock, only 2 left!

0

62022-15100

Echo 62022-15100

MUFFLER ASSY
(Superseded to A030000260)

Note: EPA/CARB only

$89.99

$

Usually ships in 2-4 days

0

70210-15102

Echo 70210-15102

MUFFLER ASSY
(Superseded to A030000250)

Note: International only

$74.99

$

Usually ships in 2-4 days

0

10

Echo 70000-15140

GASKET, EXHAUST
(Superseded to 70000-15141)

Note: EPA/CARB only

$4.49

$

Usually ships in 2-4 days

0

11

Echo 70000-15121

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

Note: EPA/CARB only

$

$

Not available

12

Echo 70080-15130

GUIDE, EXHAUST
(Superseded to A313001290)

$13.99

$

Usually ships in 2-4 days

0

13

Echo 11206-04080

SCREW - 4X8
(Superseded to 9157404008)

$

$

Not available

14

Echo 01020-06250

SCREW - 6X25
(Superseded to 90010506025)

$1.49

$

In Stock, Qty 16

0

15

Echo 70210-15310

COVER, MUFFLER
(Superseded to 70210-15311)

$54.99

$

Usually ships in 2-4 days

0

16

Echo 01020-05105

SCREW - 5X10
(Superseded to 90010905010)

$0.99

$

In Stock, Qty 20+

0

17

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

18

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

19

Echo 70196-32160

COVER
(Superseded to A459000020)

Note: EPA/CARB only

$2.99

$

Usually ships in 2-4 days

0

20

Echo 70196-32150

WASHER
(Superseded to V340000260)

Note: EPA/CARB only

$1.49

$

In Stock, only 2 left!

0

21

Echo 70210-15330

BOLT
(Superseded to V203000900)

$0.99

$

Usually ships in 2-4 days

0
