B 450 - Shindaiwa Brush Cutter (Original Version) Fan Cover Parts Diagram

Brush Cutter

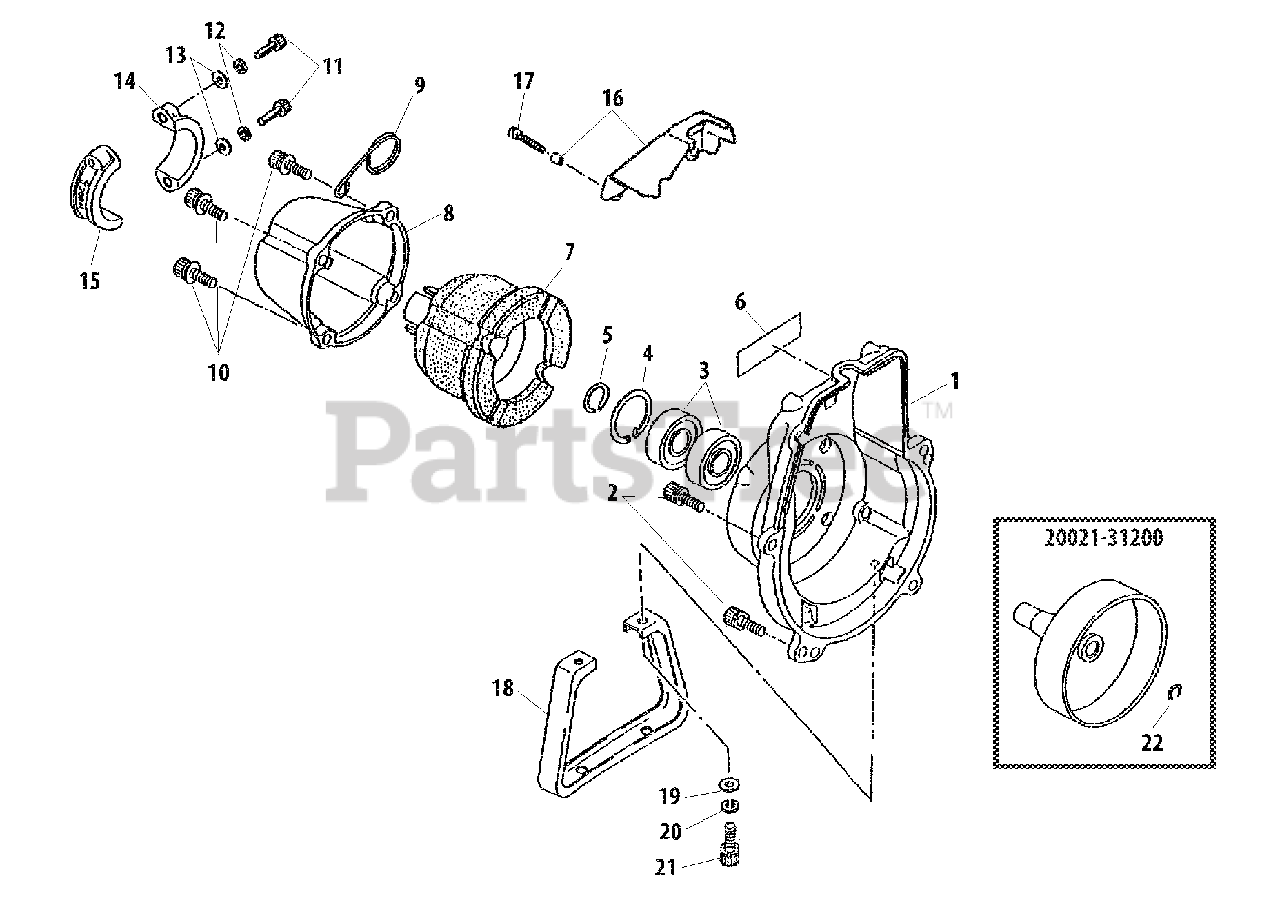

Fan Cover Parts Diagram

  • Title

1

Echo 70012-31111

CASE, FAN
(Superseded to A172001300)

$53.99

$

Usually ships in 2-4 days

0

2

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 20+

0

3

Echo 02006-06002

BEARING, BALL - 6002
(Superseded to 90080206002)

$16.99

$

In Stock, only 1 left!

0

4

Echo 02432-32120

RING, RETAINING - 32
(Superseded to 9242432000)

$0.99

$

In Stock, Qty 5

0

5

Echo 20011-31230

RING, RETAINING
(Superseded to V583000180)

$0.99

$

Usually ships in 2-4 days

0

6

Echo 70210-31150

LABEL - MODEL
(Superseded to X543001390)

$2.99

$

Usually ships in 2-4 days

0

7

Echo 20011-35110

CUSHION
(Superseded to A575000400)

$26.99

$

Usually ships in 2-4 days

0

8

Echo 70012-35130

CONNECTOR, CAP
(Superseded to A575000410)

$18.99

$

Usually ships in 2-4 days

0

9

Echo 70229-83150

HOLDER, CABLE
(Superseded to C487000270)

$3.49

$

Usually ships in 2-4 days

0

10

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 20+

0

11

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

12

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, only 4 left!

0

13

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 20011-35151

CLAMP - B
(Superseded to A575000430)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 20011-35141

CLAMP - A
(Superseded to A575000420)

$4.99

$

Usually ships in 2-4 days

0

16

Echo 70131-34100

PROTECTOR
(Superseded to A162000190)

$6.49

$

Usually ships in 2-4 days

0

17

Echo 11024-04160

SCREW - 4X16
(Superseded to V202000300)

$0.99

$

In Stock, Qty 20+

0

18

Echo 70200-33112

STAND
(Superseded to A175000180)

$11.99

$

Usually ships in 2-4 days

0

19

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

20

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, only 4 left!

0

21

Echo 70210-33120

BOLT
(Superseded to V203000910)

$1.99

$

Usually ships in 2-4 days

0

20021-31200

Echo 20021-31200

CLUTCH DRUM KIT
(Superseded to A055000020)

$45.99

$

Usually ships in 2-4 days

0

22

Echo 20021-31220

RING, RETAINING - 11
(Superseded to V582000090)

$0.99

$

Usually ships in 2-4 days

0
