B 450 - Shindaiwa Brush Cutter (Original Version) Handle, Throttle Lever Parts Diagram

Brush Cutter

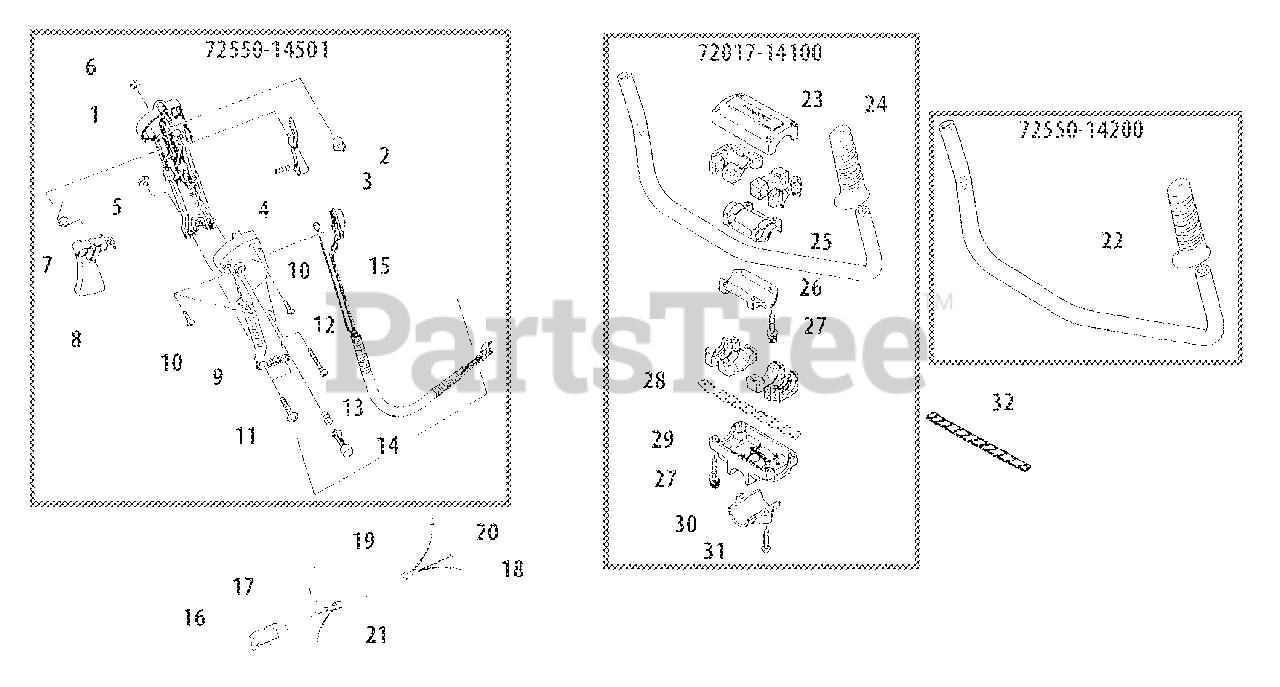

Handle, Throttle Lever Parts Diagram

  • Title

72550-14501

Echo 72550-14501

THROTTLE LEVER ASSY
(Superseded to 64007-64253)

$72.99

$

In Stock, only 2 left!

0

1

Echo 72550-14510

HANDLE, CONTROL - RIGHT
(Superseded to 72550-14511)

$18.99

$

Usually ships in 2-4 days

0

2

Echo 22150-33630

PLUG
(Superseded to V162000410)

$2.49

$

In Stock, only 4 left!

0

3

Echo 70871-65140

LEVER, TRIGGER LOCKOUT
(Superseded to C460000240)

$1.99

$

In Stock, only 1 left!

0

4

Echo 70871-65150

SPRING
(Superseded to V450001020)

$0.99

$

In Stock, Qty 9

0

5

Echo 72451-14630

NUT - 5
(Superseded to V263000190)

$0.99

$

In Stock, Qty 17

0

6

Echo 70871-65340

NUT - 4
(Superseded to V262000100)

$0.99

$

In Stock, Qty 20+

0

7

Echo 70871-65160

SPRING
(Superseded to V452000690)

$0.99

$

In Stock, Qty 9

0

8

Echo 70871-65130

TRIGGER, THROTTLE
(Superseded to C450000580)

$3.99

$

Usually ships in 2-4 days

0

9

Echo 72550-14520

HANDLE, CONTROL - LEFT
(Superseded to 72550-14521)

$20.99

$

In Stock, only 1 left!

0

10

Echo 70871-65310

SCREW - 4X16 -- TAPPING
(Superseded to 70871-65311)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 70871-65320

SCREW - 5X20
(Superseded to V253000580)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 70871-65331

SCREW - 4X23
(Superseded to V252000370)

$1.99

$

In Stock, Qty 12

0

13

Echo 70871-65180

SPRING
(Superseded to V450001010)

$0.99

$

In Stock, Qty 6

0

14

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$1.99

$

Usually ships in 2-4 days

0

15

Echo 72550-14531

CABLE, THROTTLE - A
(Superseded to P022025180)

$51.99

$

Usually ships in 2-4 days

0

16

Echo 72550-82120

CONNECTOR TUBE
(Superseded to C482000070)

$6.49

$

Usually ships in 2-4 days

0

17

Echo 20037-82130

SLEEVE
(Superseded to V475004810)

$0.99

$

Usually ships in 2-4 days

0

18

Echo 70210-83110

CABLE, THROTTLE - B
(Superseded to V430002900)

$8.49

$

Usually ships in 2-4 days

0

19

Echo 70210-83140

TUBE
(Superseded to V475004800)

$1.99

$

Usually ships in 2-4 days

0

20

Echo 70210-83130

WIRE
(Superseded to V485001650)

$2.49

$

Usually ships in 2-4 days

0

21

Echo 70210-83120

WIRE
(Superseded to V485001660)

$2.49

$

Usually ships in 2-4 days

0

72550-14200

Echo 72550-14200

HANDLE ASSY
(Superseded to P021035440)

$117.99

$

In Stock, only 2 left!

0

22

Echo 72451-14320

GRIP
(Superseded to C403000420)

$14.99

$

Usually ships in 2-4 days

0

72017-14100

Echo 72017-14100

HANDLE BRACKET KIT
(Superseded to P021031460)

$49.99

$

Usually ships in 2-4 days

0

23

Echo 72017-14130

CAP - UPPER
(Superseded to C423000740)

$9.49

$

Usually ships in 2-4 days

0

24

Echo 22015-14170

CUSHION - UPPER
(Superseded to V420002470)

$2.49

$

Usually ships in 2-4 days

0

25

Echo 22015-14150

CLAMP - UPPER
(Superseded to C423000770)

$5.99

$

Usually ships in 2-4 days

0

26

Echo 22015-14140

CLAMP - LOWER
(Superseded to C423000760)

$5.49

$

Usually ships in 2-4 days

0

27

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

28

Echo 22015-14160

CUSHION - LOWER
(Superseded to V420002460)

$2.99

$

Usually ships in 2-4 days

0

29

Echo 72017-14110

BRACKET, HANDLE
(Superseded to C423000700)

$11.99

$

In Stock, only 1 left!

0

30

Echo 72017-14120

SPACER
(Superseded to C423000720)

$5.99

$

Usually ships in 2-4 days

0

31

Echo 11210-06250

SCREW - 6X25
(Superseded to 9114206025)

$0.99

$

Usually ships in 2-4 days

0

32

Echo 72514-14190

LEAD - GROUND
(Superseded to A430000000)

$1.99

$

Usually ships in 2-4 days

0
