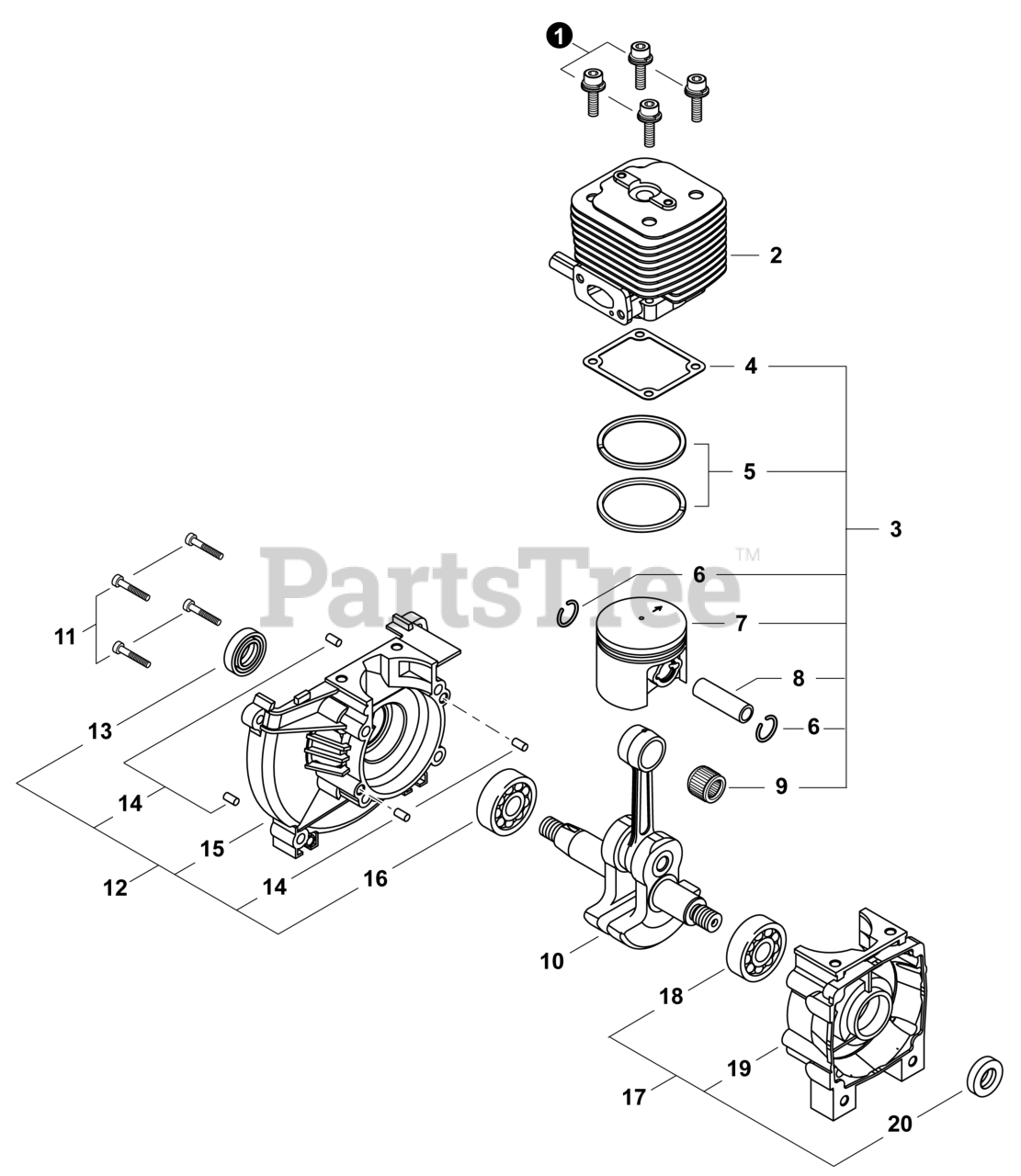

B 452 R - Shindaiwa Brush Cutter (SN: U42529001001 - U42529999999) ENGINE Parts Diagram

Brush Cutter

ENGINE Parts Diagram

  • Title

1

Echo 9112205025

BOLT M5x25

$1.99

$

Usually ships in 2-4 days

0

2

Echo A130001340

CYLINDER

$69.99

$

In Stock, only 1 left!

0

3

Echo 99909-450

PISTON KIT

Note: Includes items 4-9

$56.99

$

Usually ships in 2-4 days

0

4

Echo V100000470

GASKET, CYLINDER

$1.99

$

In Stock, only 4 left!

0

5

Echo A101000360

RING, PISTON

$10.99

$

In Stock, Qty 8

0

6

Echo V580000110

RING, SNAP

$1.49

$

In Stock, Qty 10

0

7

Echo A100000670

PISTON

$31.99

$

In Stock, only 1 left!

0

8

Echo V608000050

PIN, PISTON

$5.49

$

In Stock, only 1 left!

0

9

Echo V555000180

BEARING, NEEDLE

$9.49

$

In Stock, only 2 left!

0

10

Echo A011000830

CRANKSHAFT

$82.99

$

Usually ships in 2-4 days

0

11

Echo 90010505030

BOLT 5x30

$1.49

$

In Stock, Qty 13

0

12

Echo P021030051

CRANKCASE ASSY, M

Note: Includes items 13-16

$50.99

$

Usually ships in 2-4 days

0

13

Echo V508000050

SEAL, OIL 16

$7.49

$

In Stock, Qty 11

0

14

Echo 90033050100

PIN, LOCATING 5x10

$0.99

$

Usually ships in 2-4 days

0

15

Echo A120001120

CRANKCASE M

$46.99

$

Usually ships in 2-4 days

0

16

Echo V592000290

BEARING, BALL 6202 C3

$8.49

$

Usually ships in 2-4 days

0

17

Echo P021033432

CRANKCASE ASSY, S

Note: Includes items 18-20

$26.99

$

Usually ships in 2-4 days

0

18

Echo V592000290

BEARING, BALL 6202 C3

$8.49

$

Usually ships in 2-4 days

0

19

Echo A120000082

CRANKCASE S

$47.99

$

Usually ships in 2-4 days

0

20

Echo V508000050

SEAL, OIL 16

$7.49

$

In Stock, Qty 11

0
