B 452 R - Shindaiwa Brush Cutter (SN: U42529001001 - U42529999999) FAN COVER Parts Diagram

Brush Cutter

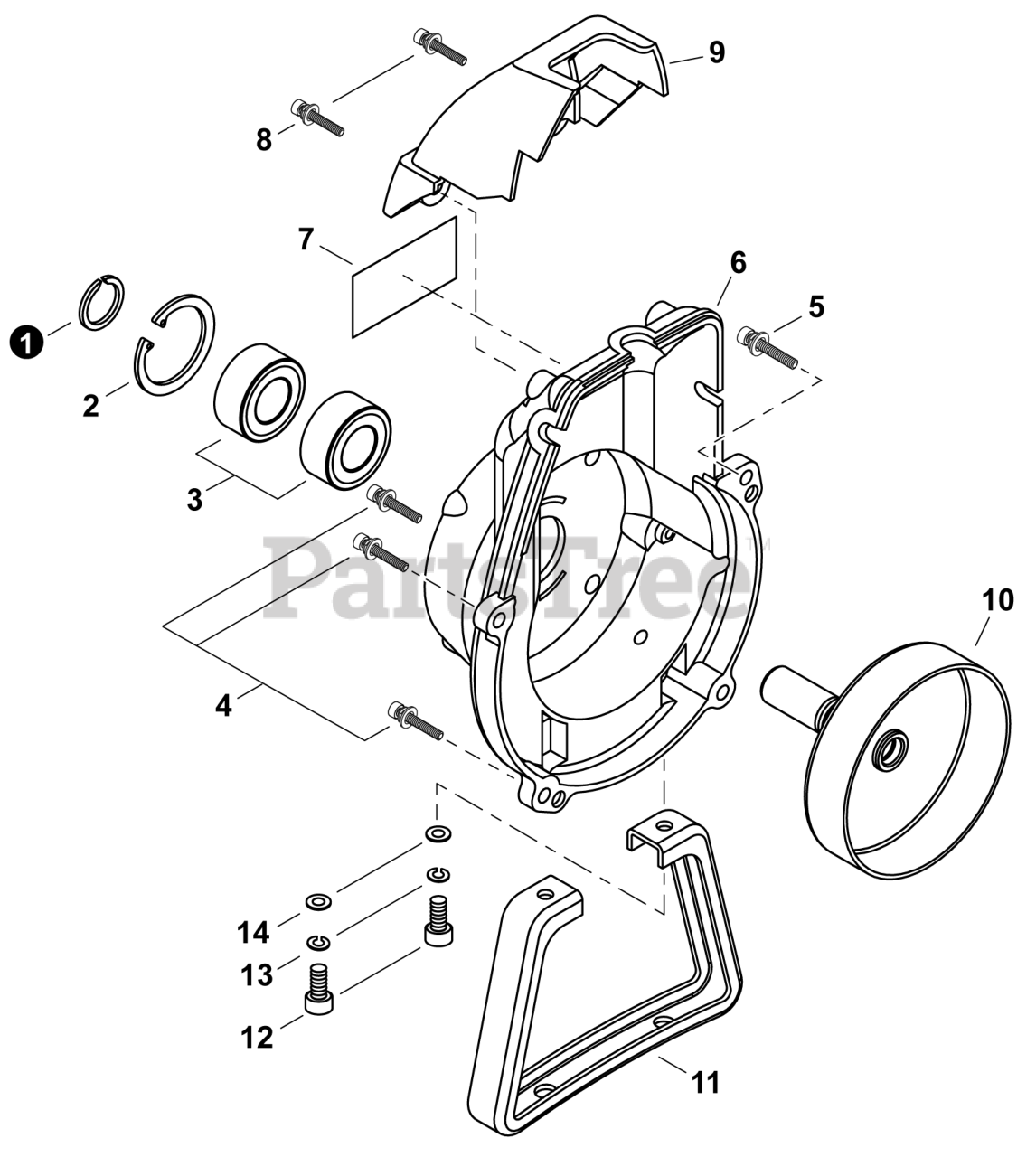

FAN COVER Parts Diagram

  • Title

1

Echo V583000181

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

2

Echo 90070200032

RING, SNAP 32

$1.99

$

In Stock, Qty 20+

0

3

Echo 90080206002

BEARING, BALL 6002 DDU

$16.99

$

In Stock, only 1 left!

0

4

Echo V203000351

BOLT 5x20

$0.99

$

In Stock, Qty 20+

0

5

Echo V203000581

BOLT M5x30
(Superseded to V203000580)

$

$

Not available

6

Echo A172002310

COVER, FAN

$53.99

$

Usually ships in 2-4 days

0

7

Echo X562001720

LABEL - MODEL B452

$3.49

$

Usually ships in 2-4 days

0

8

Echo 9111304016

BOLT M4x16

$0.99

$

In Stock, Qty 20+

0

9

Echo A162000190

GUARD, TOP

$6.49

$

Usually ships in 2-4 days

0

10

Echo A556001790

DRUM, CLUTCH

$45.99

$

Usually ships in 2-4 days

0

11

Echo A175000180

STAND

$11.99

$

Usually ships in 2-4 days

0

12

Echo V203000910

BOLT 5

$1.99

$

Usually ships in 2-4 days

0

13

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, only 4 left!

0

14

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0
