B 452 R - Shindaiwa Brush Cutter (SN: U42529001001 - U42529999999) FUEL SYSTEM Parts Diagram

Brush Cutter

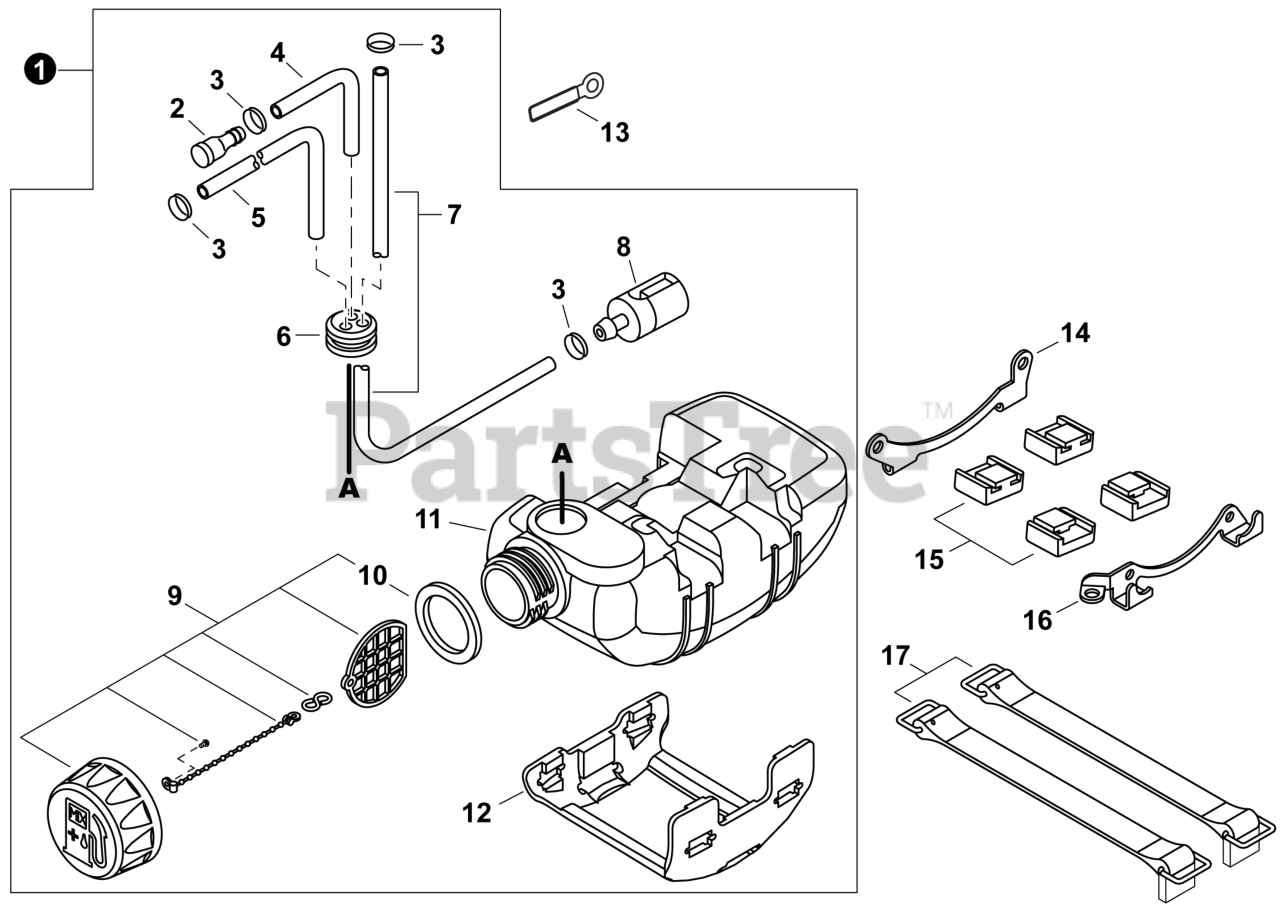

FUEL SYSTEM Parts Diagram

  • Title

1

Echo P021036465

TANK ASSY, FUEL

Note: Includes items 2-12

$47.99

$

In Stock, only 2 left!

0

2

Echo A356000050

VENT ASSY

$8.49

$

In Stock, only 3 left!

0

3

Echo V490000500

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000761

PIPE 3x6x90 MM

$1.49

$

In Stock, Qty 14

0

5

Echo 13201049030

PIPE, FUEL 3x6x50 YELLOW

$1.99

$

In Stock, Qty 20+

0

6

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

7

Echo V471000751

PIPE, FUEL 3x5x260 BLACK

$7.99

$

Usually ships in 2-4 days

0

8

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

9

Echo A033000330

CAP ASSY, FUEL

Note: Includes item 10

$7.49

$

In Stock, Qty 14

0

10

Echo V107000010

GASKET, FUEL CAP

$1.99

$

In Stock, Qty 20+

0

11

Echo A350001361

TANK, FUEL

$24.99

$

Usually ships in 2-4 days

0

12

Echo A175000200

GUARD, FUEL TANK

$8.99

$

In Stock, only 1 left!

0

13

Echo 15911222131

CLIP

$1.49

$

Usually ships in 2-4 days

0

14

Echo A393000190

BRACKET M

$2.49

$

Usually ships in 2-4 days

0

15

Echo V420002390

CUSHION, FUEL TANK

$0.99

$

In Stock, Qty 16

0

16

Echo A393000180

BRACKET S

$3.49

$

Usually ships in 2-4 days

0

17

Echo A392000060

STRAP, FUEL TANK

$4.49

$

In Stock, Qty 13

0
