B 452 R - Shindaiwa Brush Cutter (SN: U42529001001 - U42529999999) HANDLEBAR Parts Diagram

Brush Cutter

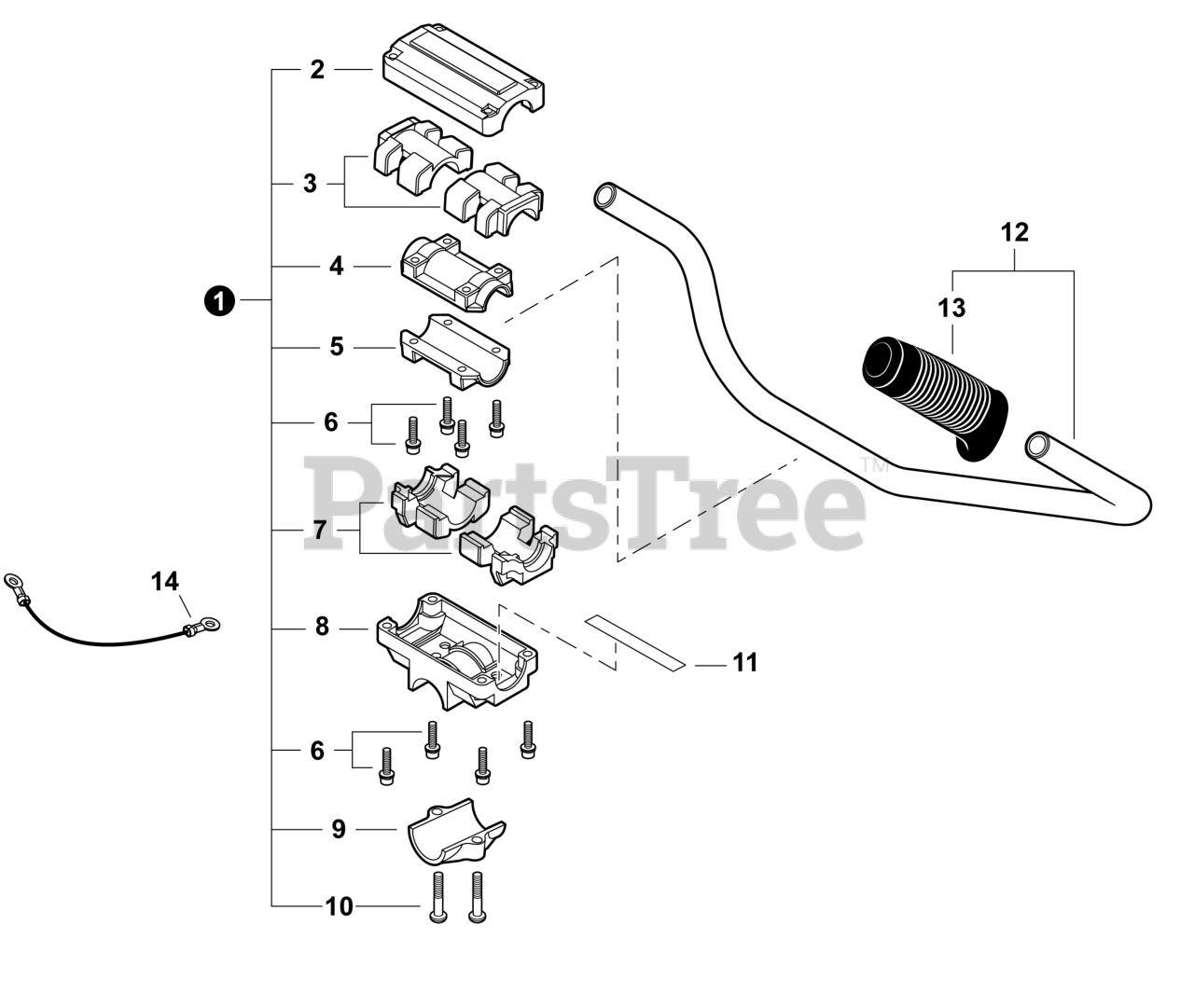

HANDLEBAR Parts Diagram

  • Title

1

Echo P021031461

BRACKET KIT, HANDLE

Note: Includes items 2-10

$59.99

$

Usually ships in 2-4 days

0

2

Echo C423000740

CLAMP, UPPER

$11.99

$

Usually ships in 2-4 days

0

3

Echo V420002470

CUSHION, UPPER

$2.49

$

Usually ships in 2-4 days

0

4

Echo C423000770

CLAMP, UPPER

$6.99

$

Usually ships in 2-4 days

0

5

Echo C423000760

CLAMP, LOWER

$6.99

$

Usually ships in 2-4 days

0

6

Echo V203000630

BOLT M5x25

$1.49

$

In Stock, Qty 20+

0

7

Echo V420002460

CUSHION, LOWER

$3.49

$

Usually ships in 2-4 days

0

8

Echo C423000700

BRACKET, HANDLE 28

$13.99

$

In Stock, only 1 left!

0

9

Echo C423000720

CLAMP, LOWER 28

$7.49

$

Usually ships in 2-4 days

0

10

Echo 9114206025

SCREW M6x25

$1.49

$

Usually ships in 2-4 days

0

11

Echo A430000000

LEAD - GROUND

$1.99

$

Usually ships in 2-4 days

0

12

Echo P021035440

HANDLEBAR ASSY

Note: Includes items 13

$140.99

$

In Stock, only 1 left!

0

13

Echo C403000420

GRIP

$17.99

$

Usually ships in 2-4 days

0

14

Echo V485001670

LEAD - GROUND

$3.49

$

Usually ships in 2-4 days

0
