B 460 - Shindaiwa Brush Cutter (SN: U08026001001 - U08026999999) CLUTCH Parts Diagram

Brush Cutter

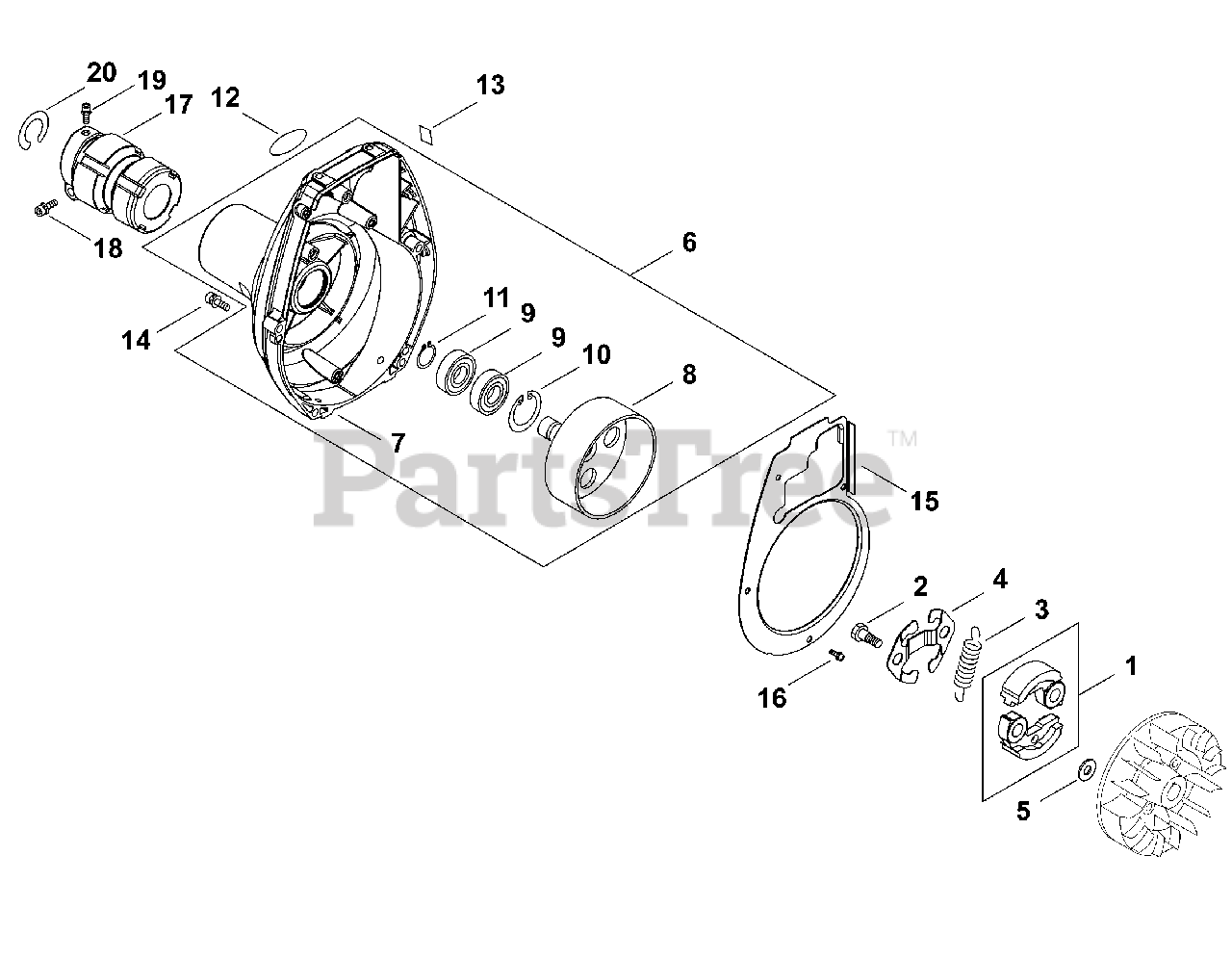

CLUTCH Parts Diagram

  • Title

1

Echo A553000040

SHOE, CLUTCH

$15.99

$

Usually ships in 2-4 days

0

2

Echo A557000000

BOLT, CLUTCH

$8.49

$

In Stock, only 2 left!

0

3

Echo A566000260

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

4

Echo V453000100

SPRING, FLAT

$12.99

$

Usually ships in 2-4 days

0

5

Echo 17504903920

WASHER 8.2×17×1.6

$1.99

$

In Stock, Qty 10

0

6

Echo P100005210

COVER ASSY, FAN

Note: Includes Items 7-11

$178.99

$

Usually ships in 2-4 days

0

7

Echo A172003400

COVER, FAN

$75.99

$

Usually ships in 2-4 days

0

8

Echo A556000181

DRUM, CLUTCH

$81.99

$

Usually ships in 2-4 days

0

9

Echo 90080706001

BEARING, BALL 6001

$13.99

$

In Stock, only 2 left!

0

10

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

11

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

12

Echo X562000930

LABEL - MODEL B460

$1.99

$

Usually ships in 2-4 days

0

13

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

Usually ships in 2-4 days

0

14

Echo 9111805025

BOLT 5×25

$1.49

$

Usually ships in 2-4 days

0

15

Echo 10153442231

SHIELD, FAN

$12.99

$

Usually ships in 2-4 days

0

16

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 5

0

17

Echo V420000980

CUSHION

$28.99

$

Usually ships in 2-4 days

0

18

Echo 9111805028

BOLT 5×28

$1.99

$

Usually ships in 2-4 days

0

19

Echo 9111805012

BOLT 5×12

$1.49

$

Usually ships in 2-4 days

0

20

Echo 90070200045

RING, RETAINING Ø45

$1.99

$

In Stock, only 2 left!

0
