B 460 - Shindaiwa Brush Cutter (SN: U08026001001 - U08026999999) CYLINDER, PISTON, ENGINE COVER Parts Diagram

Brush Cutter

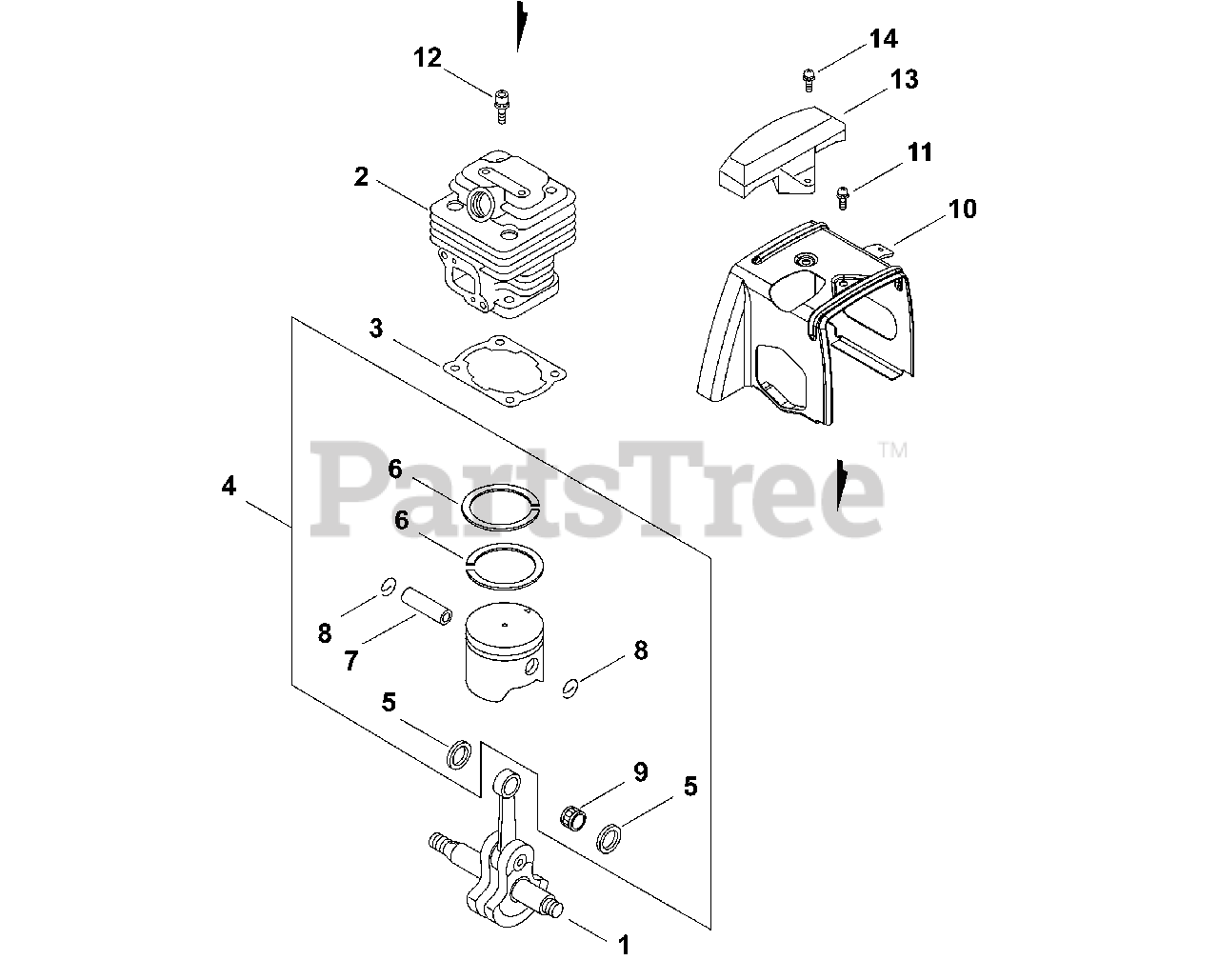

CYLINDER, PISTON, ENGINE COVER Parts Diagram

  • Title

1

Echo A011001330

CRANKSHAFT ASSY
(Superseded to 10010043130)

$246.99

$

Usually ships in 2-4 days

0

2

Echo 10101147530

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

3

Echo 10101042231

GASKET, CYLINDER

$1.99

$

Usually ships in 2-4 days

0

4

Echo P021015771

PISTON KIT

Note: Includes Items 5-9

$98.99

$

Usually ships in 2-4 days

0

5

Echo V307000050

WASHER, THRUST 10

$5.99

$

In Stock, only 3 left!

0

6

Echo 10001143230

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

7

Echo 10001300410

PIN, PISTON

$7.99

$

In Stock, only 1 left!

0

8

Echo V580000010

RING, SNAP Ø10

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10001212331

BEARING, NEEDLE 10

$12.99

$

In Stock, only 4 left!

0

10

Echo A160003450

COVER, CYLINDER

$13.99

$

Usually ships in 2-4 days

0

11

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

12

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

13

Echo 15990543130

GUARD, TOP

$12.99

$

Usually ships in 2-4 days

0

14

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0
