B 460 - Shindaiwa Brush Cutter (SN: U08026001001 - U08026999999) MAIN PIPE Parts Diagram

Brush Cutter

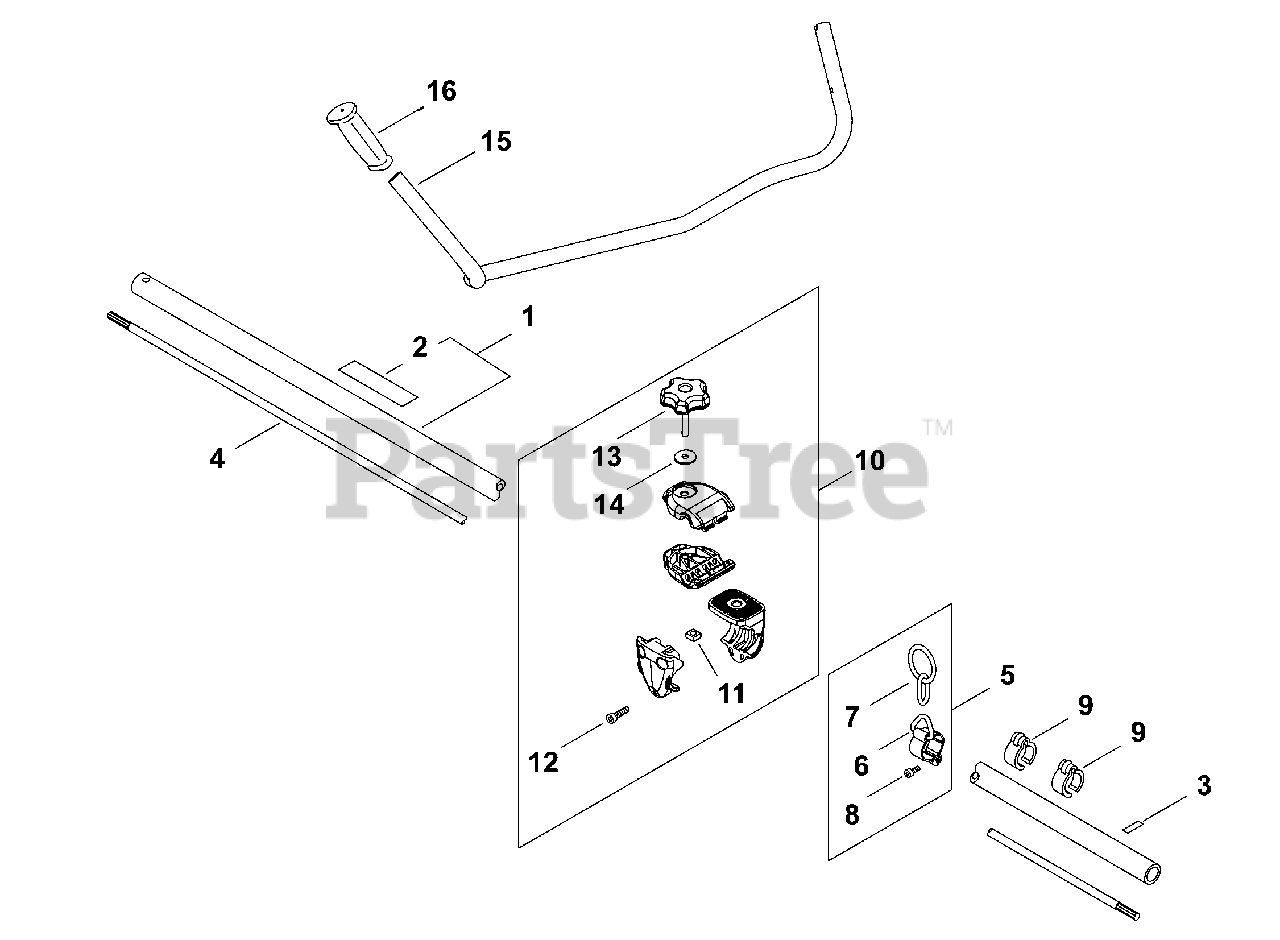

MAIN PIPE Parts Diagram

  • Title

1

Echo P021044250

MAIN PIPE ASSY

Note: Includes Item 2

$82.99

$

Usually ships in 2-4 days

0

2

Echo 89061743130

LABEL, CAUTION - ISO

$25.99

$

Usually ships in 2-4 days

0

3

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 18

0

4

Echo 61001106230

DRIVESHAFT

$51.99

$

Usually ships in 2-4 days

0

5

Echo P021012661

HANGER ASSY, HARNESS

Note: Includes Items 6-8

$6.49

$

Usually ships in 2-4 days

0

6

Echo 30121004631

HANGER, HARNESS

$4.99

$

Usually ships in 2-4 days

0

7

Echo 30101505330

RING, HARNESS

$4.99

$

Usually ships in 2-4 days

0

8

Echo 9111905012

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

9

Echo 22492452930

CLIP 28 MM

$9.99

$

Usually ships in 2-4 days

0

10

Echo P021012742

MOUNTING KIT, HANDLEBAR

Note: Includes Items 11-14

$102.99

$

Usually ships in 2-4 days

0

11

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

12

Echo 9111805030

BOLT 5×30

$1.49

$

Usually ships in 2-4 days

0

13

Echo V299000110

KNOB, SCREW M8

$14.99

$

Usually ships in 2-4 days

0

14

Echo 60501454230

WASHER 8

$3.99

$

Usually ships in 2-4 days

0

15

Echo C400000000

HANDLEBAR

$95.99

$

Usually ships in 2-4 days

0

16

Echo C403000031

GRIP, HANDLE

$10.99

$

Usually ships in 2-4 days

0
