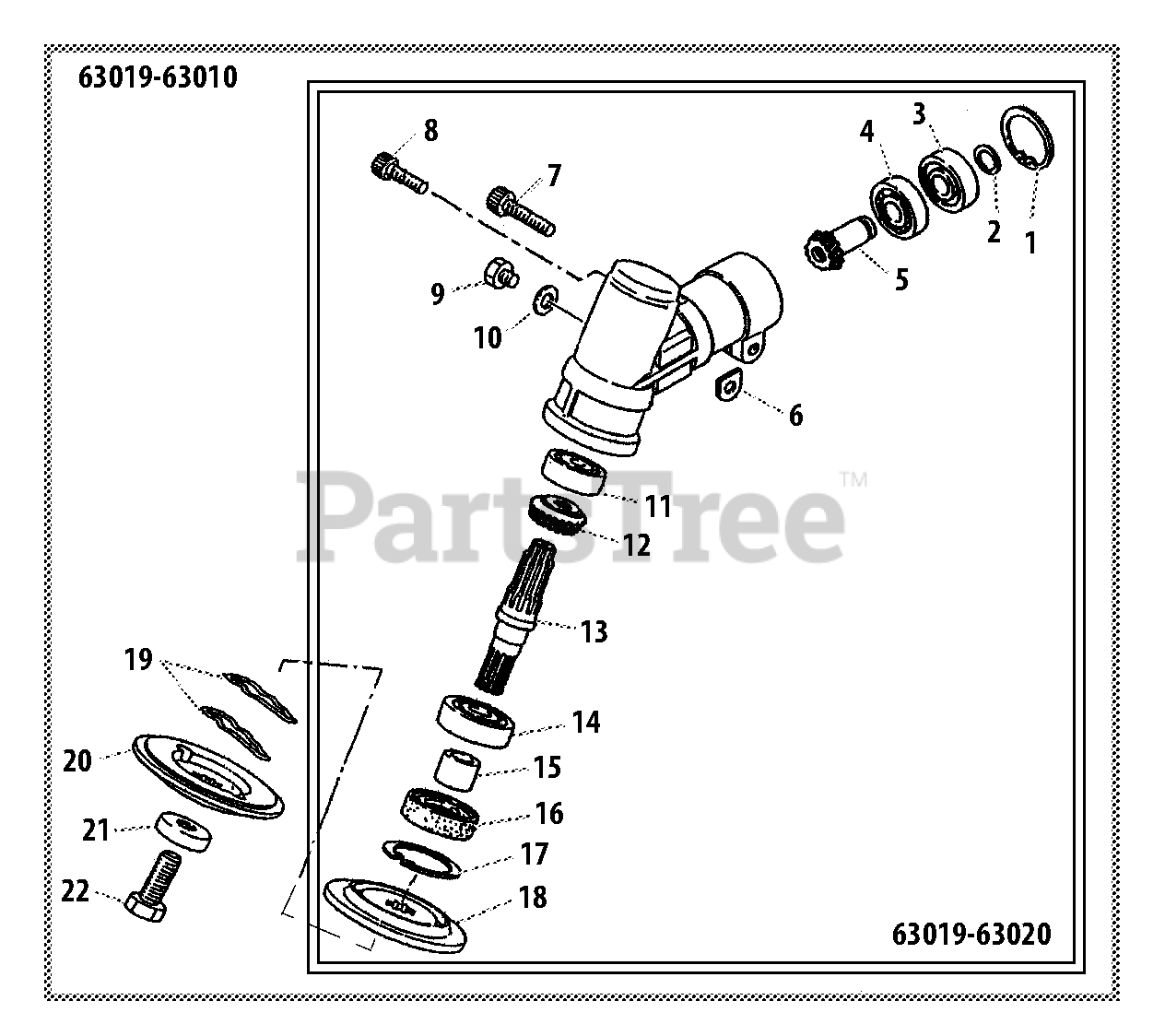

B 530 - Shindaiwa Brush Cutter (Original Version) Gearcase Parts Diagram

Brush Cutter

Gearcase Parts Diagram

  • Title

63019-63010

Echo 63019-63010

GEAR CASE ASSY
(Superseded to C051000610)

$186.99

$

Usually ships in 2-4 days

0

63019-63020

Echo 63019-63020

GEAR CASE ASSY
(Superseded to 63019-63021)

$186.99

$

Usually ships in 2-4 days

0

1

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.99

$

In Stock, Qty 20+

0

2

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 20+

0

3

Echo 02002-06001

BEARING, BALL - 6001ZZ
(Superseded to 90080406001)

$13.99

$

In Stock, Qty 5

0

4

Echo 02000-06001

BEARING, BALL - 6001
(Superseded to 37074-63310)

$11.99

$

In Stock, Qty 17

0

5

Echo 22021-13390

GEAR - SHAFT
(Superseded to V651000550)

$28.99

$

Usually ships in 2-4 days

0

6

Echo 22011-13450

SHIM
(Superseded to V340000280)

$1.49

$

In Stock, Qty 6

0

7

Echo 11022-06280

SCREW - 6X28
(Superseded to V204000410)

$

$

Not available

8

Echo 11022-06140

SCREW - 6X14
(Superseded to V204000740)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 22015-13410

BOLT - 6X10
(Superseded to V206000250)

$1.99

$

In Stock, Qty 18

0

10

Echo 22015-13420

WASHER
(Superseded to V307000230)

$1.49

$

In Stock, only 3 left!

0

11

Echo 02006-06000

BEARING, BALL - 6000DDU
(Superseded to 90080206000)

$16.99

$

In Stock, Qty 16

0

12

Echo 22015-13220

GEAR - BEVEL
(Superseded to V651000540)

$29.99

$

Usually ships in 2-4 days

0

13

Echo 63019-63130

GEAR - SHAFT
(Superseded to C534000600)

$52.99

$

Usually ships in 2-4 days

0

14

Echo 02000-06202

BEARING, BALL - 6202
(Superseded to 90081006202)

$11.99

$

In Stock, only 2 left!

0

15

Echo 22015-13230

COLLAR
(Superseded to V358000130)

$4.99

$

Usually ships in 2-4 days

0

16

Echo 22015-13120

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

17

Echo 02432-35150

RING, RETAINING - 35
(Superseded to 9242435000)

$2.49

$

In Stock, Qty 9

0

18

Echo 22015-13241

HOLDER (A)
(Superseded to 72447-13240)

$42.99

$

Usually ships in 2-4 days

0

19

Echo 22015-13290

SLIDE PIN
(Superseded to V641000140)

$2.99

$

In Stock, only 1 left!

0

20

Echo 63019-63170

HOLDER (B)
(Superseded to C535000990)

$34.99

$

Usually ships in 2-4 days

0

21

Echo 22015-13270

GUARD
(Superseded to C535000790)

$6.49

$

Usually ships in 2-4 days

0

22

Echo 63019-63310

BOLT - 10 -- LEFT HAND
(Superseded to V206000230)

$2.49

$

Usually ships in 2-4 days

0
