B 530 - Shindaiwa Brush Cutter (SN: 09018344 - 09099783) Crankcase / Engine Cover / Fan Cover Parts Diagram

Brush Cutter

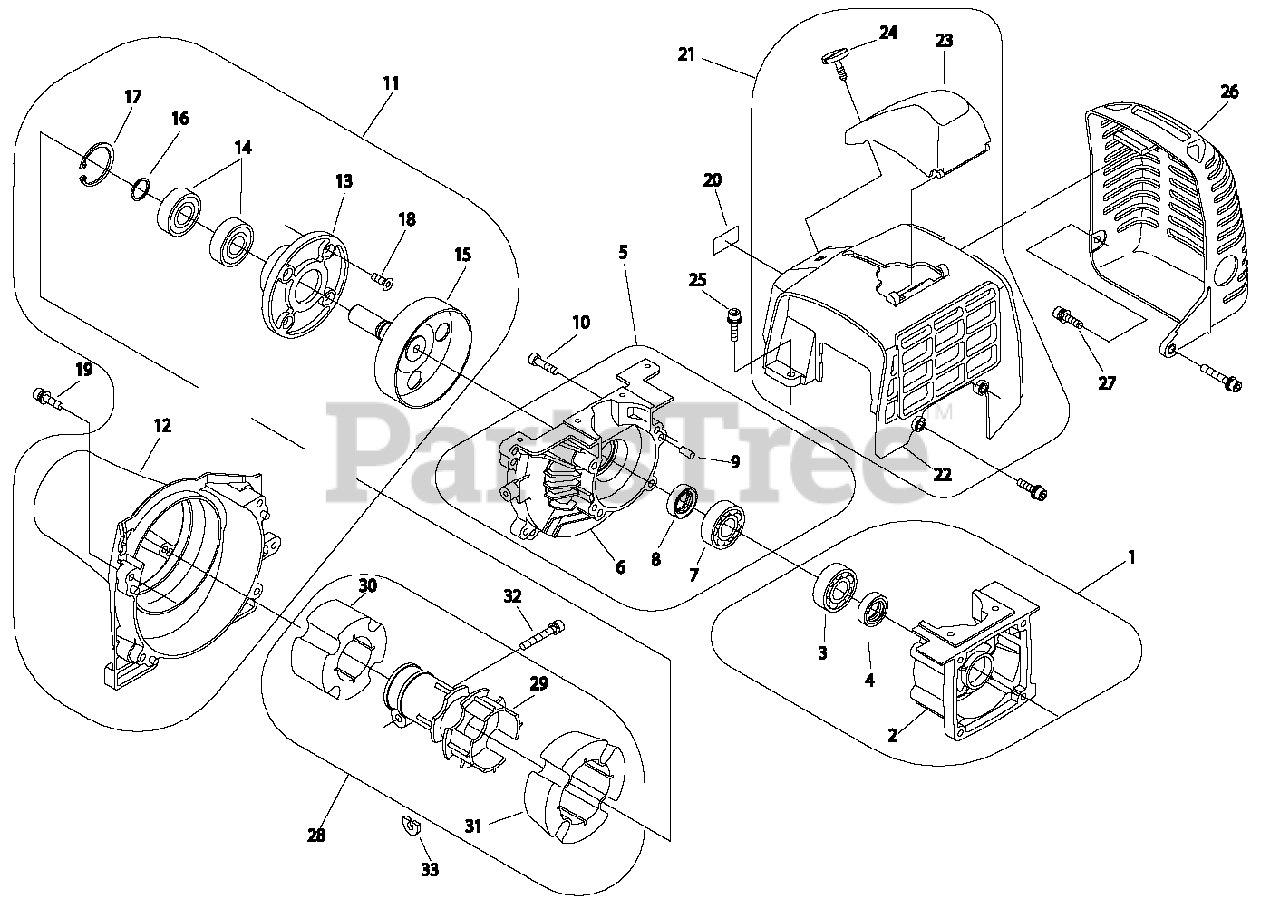

Crankcase / Engine Cover / Fan Cover Parts Diagram

  • Title

1

Echo P021027760

CRANKCASE ASSY - REAR

Note: 62035-21010

$56.99

$

Usually ships in 2-4 days

0

2

Echo A120000370

CRANKCASE - REAR

Note: 62035-21110

$39.99

$

Usually ships in 2-4 days

0

3

Echo 90081036202

BEARING, BALL - 6202

Note: 02030-06202

$11.99

$

In Stock, only 1 left!

0

4

Echo V508000050

SEAL, OIL - 15

Note: 20010-21211

$7.99

$

In Stock, Qty 11

0

5

Echo P021027770

CRANKCASE ASSY - FRONT

Note: 62035-21020

$62.99

$

Usually ships in 2-4 days

0

6

Echo A120000380

CRANKCASE - FRONT

Note: 62035-21210

$47.99

$

Usually ships in 2-4 days

0

7

Echo 90081036202

BEARING, BALL - 6202

Note: 02030-06202

$11.99

$

In Stock, only 1 left!

0

8

Echo V508000050

SEAL, OIL - 15

Note: 20010-21211

$7.99

$

In Stock, Qty 11

0

9

Echo V623000060

PIN - LOCATING
(Superseded to 10021502830)

Note: 12492-50100

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90010505030

SCREW - 5X30

Note: 01020-05300

$1.49

$

In Stock, only 4 left!

0

11

Echo P021027780

FAN CASE ASSY
(Superseded to P021027782)

Note: 62035-31012

$194.99

$

Usually ships in 2-4 days

0

12

Echo A172001270

CASE, FAN

Note: 62035-31110

$85.99

$

Usually ships in 2-4 days

0

13

Echo A570000200

COVER, CLUTCH

Note: 62035-31310

$29.99

$

Usually ships in 2-4 days

0

14

Echo 90081206202

BEARING, BALL - 6202

Note: 02006-06202

$16.99

$

Usually ships in 2-4 days

0

15

Echo A556000870

DRUM, CLUTCH
(Superseded to A055000140)

Note: 62035-31212

$53.99

$

Usually ships in 2-4 days

0

16

Echo V583000180

RING, RETAINING
(Superseded to V583000181)

Note: 20011-31230

$0.99

$

Usually ships in 2-4 days

0

17

Echo 9242435000

RING, RETAINING - 35
(Superseded to 90070200035)

Note: 02432-35150

$2.49

$

In Stock, Qty 10

0

18

Echo V253000440

SCREW

Note: 11260-05161

$1.49

$

Usually ships in 2-4 days

0

19

Echo V203000580

SCREW - 5X30
(Superseded to V203000581)

Note: 11022-05300

$

$

Not available

20

Echo X504002660

LABEL

Note: 62035-91020

$1.99

$

Usually ships in 2-4 days

0

21

Echo P021027790

ENGINE COVER KIT
(Superseded to P021027791)

Note: 62035-32012

$54.99

$

Usually ships in 2-4 days

0

22

Echo A160001650

COVER, ENGINE
(Superseded to A160001651)

Note: 62035-32112

$31.99

$

Usually ships in 2-4 days

0

23

Echo A429000120

COVER, SPARK PLUG

Note: 62035-32310

$8.49

$

Usually ships in 2-4 days

0

24

Echo V299000390

THUMBSCREW

Note: 62035-32320

$8.49

$

Usually ships in 2-4 days

0

25

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$1.49

$

In Stock, Qty 6

0

26

Echo A320000790

COVER, EXHAUST

Note: 62035-32331

$16.99

$

Usually ships in 2-4 days

0

27

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$1.49

$

In Stock, Qty 6

0

28

Echo A058000010

MAIN PIPE CLAMP KIT

Note: 62035-33010

$53.99

$

Usually ships in 2-4 days

0

29

Echo A575000440

JOINT

Note: 62035-33110

$32.99

$

Usually ships in 2-4 days

0

30

Echo V420002490

CUSHION - FRONT

Note: 62035-33120

$9.49

$

Usually ships in 2-4 days

0

31

Echo V420002500

CUSHION - REAR

Note: 62035-33130

$8.49

$

Usually ships in 2-4 days

0

32

Echo V204000410

SCREW - 6X28
(Superseded to V204000411)

Note: 11022-06280

$

$

Not available

33

Echo V375000350

SHIM

Note: 20024-31460

$1.49

$

In Stock, Qty 7

0
