B - Simplicity Two-Wheeled Tractor, 1.5hp Tractor Group (3736I02) Parts Diagram

Two-Wheeled Tractor, 1.5hp

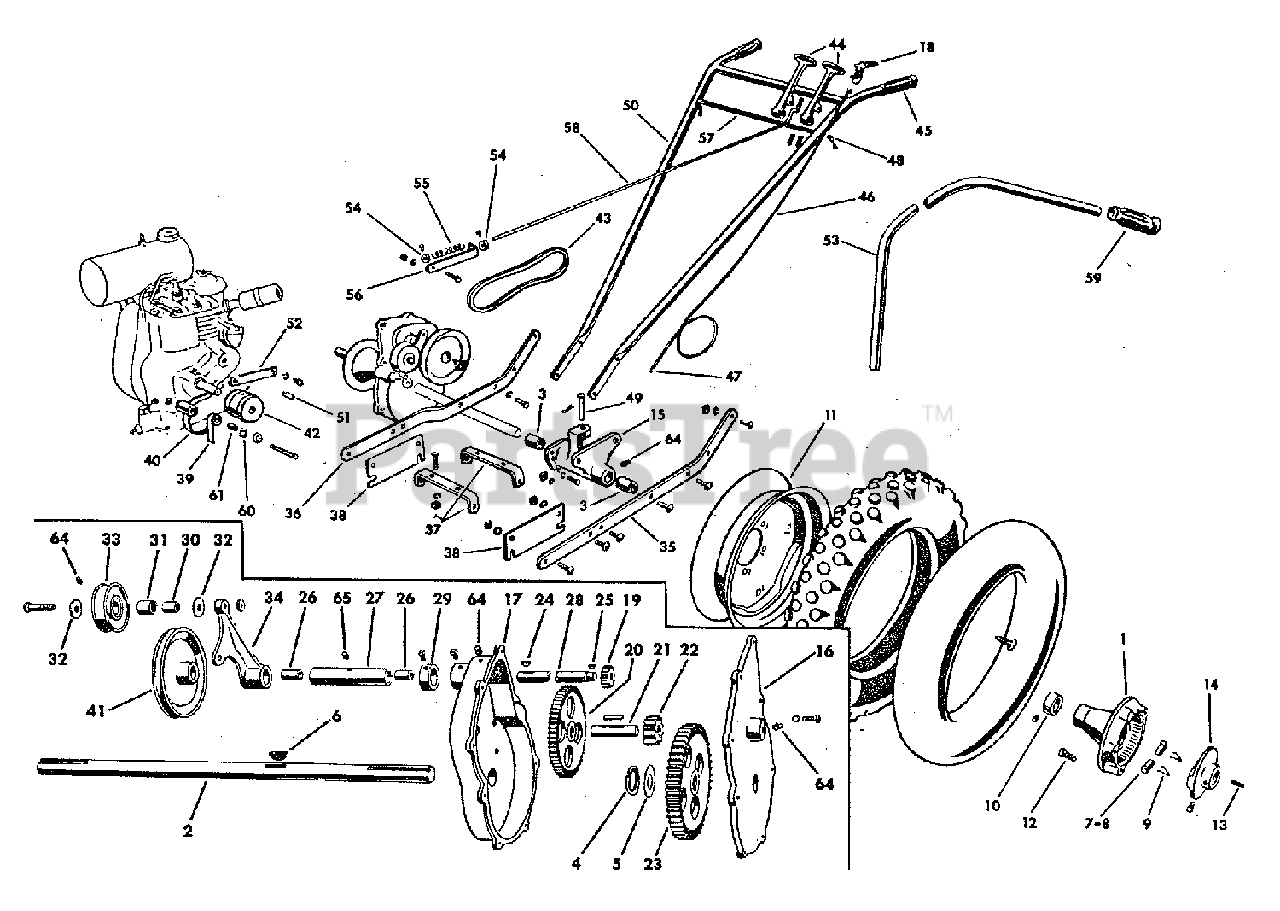

Tractor Group (3736I02) Parts Diagram

  • Title

1

Simplicity SSB18

HUB, Wheel

$

$

Not available

2

Simplicity SSB8

AXLE

$

$

Not available

3

Simplicity S2A-43

BUSHING

$

$

Not available

4

Simplicity SSA32

RING, Retaining

$

$

Not available

5

Simplicity S3A70

WASHER

$

$

Not available

6

KEY, Woodruff, 1/4 x 7/8"

$

$

Not available

7

Simplicity SSA16

RATCHET DOG, Left

$

$

Not available

8

Simplicity SSA15

RATCHET DOG, Right

$

$

Not available

9

Simplicity SSA21

SPRING

$

$

Not available

10

Simplicity SSA12

COLLAR, Set, 1"

$

$

Not available

11

Simplicity SSB23

WHEEL, Drive

$

$

Not available

12

Simplicity SSA100

BOLT, Hub

$

$

Not available

13

Simplicity SSA14

KEY

$

$

Not available

14

Simplicity SSA1

CAGE, Ratchet

$

$

Not available

15

Simplicity SSB19

FRAME BRACKET W/BUSHINGS

$

$

Not available

16

Simplicity SSC2

COVER, Gear Case

$

$

Not available

17

Simplicity SSC12

CASE, Gear

$

$

Not available

18

LEVER ASSEMBLY, Throttle Control

$

$

Not available

19

Simplicity SSA13

REDUCTION PINION, 12-Teeth, 1/2" Face

$

$

Not available

20

Simplicity SSB1

REDUCTION GEAR, 60-Teeth, 1/2" Face

$

$

Not available

21

Simplicity SSA100

SHAFT, Intermediate

$

$

Not available

22

Simplicity S2A12

PINION, 10-Teeth, 3/4" Face

$

$

Not available

23

Simplicity SSB2

DRIVE GEAR, 50-Teeth, 3/4" Face

$

$

Not available

24

KEY, Woodruff, 3/16 x 3/4"

$

$

Not available

25

KEY, Woodruff, 1/8 x 1/2"

$

$

Not available

26

Simplicity SSA52

BUSHING

$

$

Not available

27

Simplicity SSA8

BEARING, Housing w/Bushings

$

$

Not available

28

Simplicity SSA9

SHAFT, Pulley

$

$

Not available

29

Simplicity SSA11

COLLAR, Set, 15/16"

$

$

Not available

30

Simplicity S2-A20

BEARING RACE, Inner

$

$

Not available

31

Simplicity S2A-48

BEARING, Idler Pulley

$

$

Not available

32

Simplicity S2A-37

THRUST WASHER, Idler Pulley

$

$

Not available

33

Simplicity SSA3

PULLEY, Idler

$

$

Not available

34

Simplicity SSA4

ARM, Idler

$

$

Not available

35

Simplicity SSB21

FRAME SIDE MEMBER, Left

$

$

Not available

36

Simplicity SSB22

FRAME SIDE MEMBER, Right

$

$

Not available

37

Simplicity SSA88

BRACKET, Engine Mounting

$

$

Not available

38

Simplicity SSA94

PLATE, Hitch

$

$

Not available

39

Simplicity S1AX5

HOLDER, Belt

$

$

Not available

40

Simplicity S1AX12

GUIDE, Belt

$

$

Not available

41

Simplicity SSA23

SHEAVE, Transmission

$

$

Not available

42

Simplicity S1A151A

PULLEY, Engine

$

$

Not available

43

Simplicity SS-A101

BELT, Drive, 34"

$

$

Not available

44

Simplicity S1A8

LEVER, Clutch

$

$

Not available

45

Simplicity SSA88

HANDLE, Rubber Grip, 7/8"

$

$

Not available

46

Simplicity SSA85A

WIRE HOUSING, Throttle Control

$

$

Not available

47

Simplicity SSA86A

WIRE, Throttle Control

$

$

Not available

48

Simplicity S7A71

CLAMP, Flexible Cable

$

$

Not available

49

Simplicity SSA31

PIN, Draw Bar

$

$

Not available

50

Simplicity SSCX4

HANDLE, Tractor

$

$

Not available

51

Simplicity S3A42

KEY

$

$

Not available

52

Simplicity S1A78

BRACKET, Belt Guide

$

$

Not available

53

Simplicity SSB20

HANDLE, Control

$

$

Not available

54

Simplicity S2A22

SET COLLAR, Idler Rod

$

$

Not available

55

Simplicity S2A45

SPRING

$

$

Not available

56

Simplicity S2A25

END, Idler Rod

$

$

Not available

57

Simplicity SSA96

SHAFT, Lever

$

$

Not available

58

Simplicity SSA97

ROD, Idler

$

$

Not available

59

Simplicity SSA77

HANDLE GRIP, 3/4"

$

$

Not available

60

Simplicity S1A25

WASHER, Spring Tension

$

$

Not available

61

Simplicity S1A24

BUSHING, Belt Stop

$

$

Not available

62

TOOL KIT

$

$

Not available

63

GUN, Grease

$

$

Not available

64

FITTING, Grease, #1641

$

$

Not available

65

FITTING, Grease, #1792

$

$

Not available
