B1-16O802 (316-8) - Toro Garden Tractor (1989) KOHLER CRANKCASE CYLINDER HEAD Parts Diagram

Garden Tractor

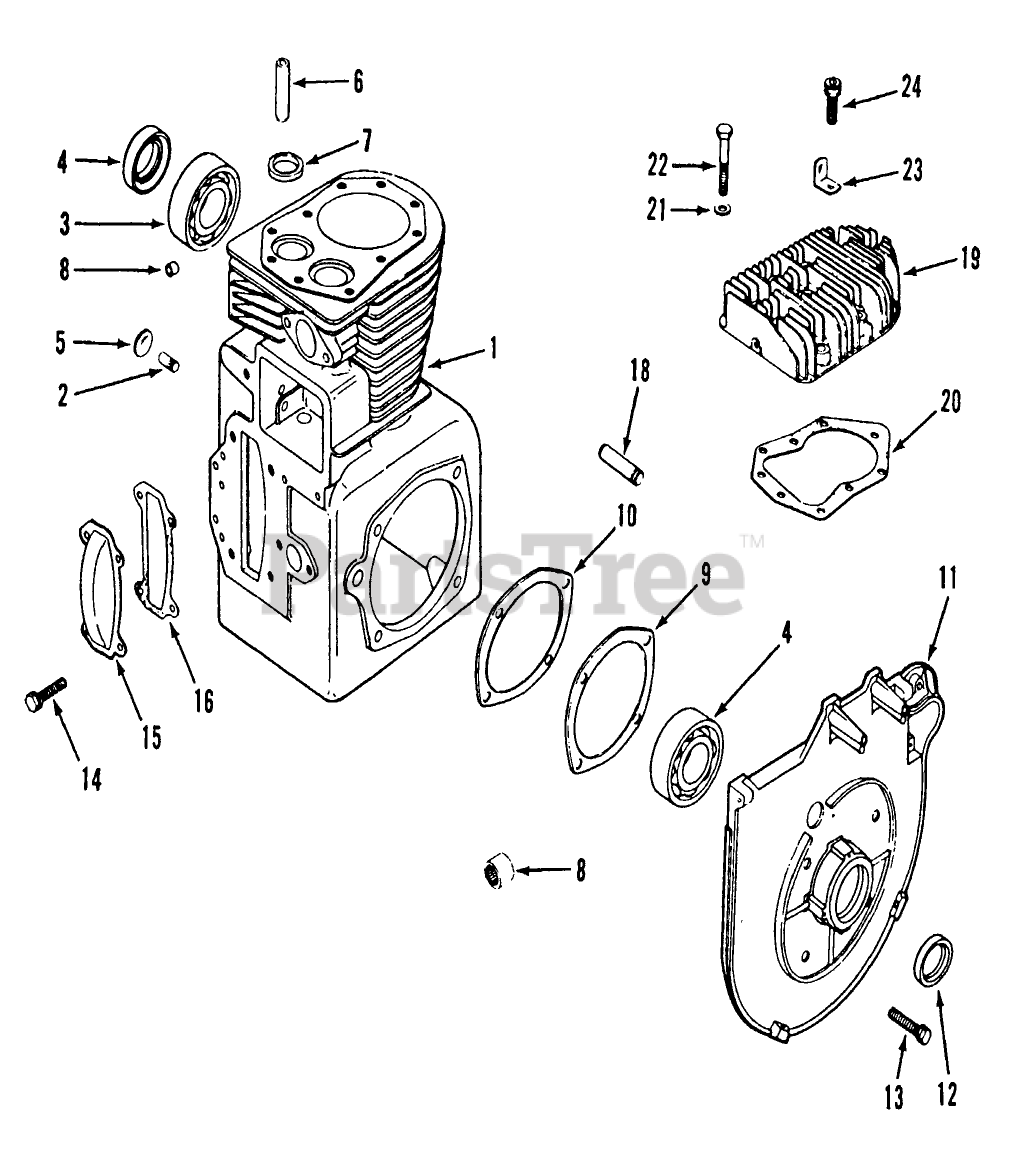

KOHLER CRANKCASE CYLINDER HEAD Parts Diagram

  • Title

1

Toro 47 522 95

Cylinder Block-Service With Short Block (Includes Crankshaft) 312

$

$

Currently unavailable

Toro 47 782 33

Miniblock (Less Crankshaft) 312

$

$

Currently unavailable

2

Toro 235125-S

Shaft-Govemor

$

$

Currently unavailable

3

Toro 235376

Ball Bearing

$

$

Currently unavailable

4

Toro 47 032 07

Seal-Rear Oil

$

$

Currently unavailable

5

Toro X-230-11

Plug

$

$

Currently unavailable

6

Toro 230007-S

Guide-Valve

$

$

Currently unavailable

7

Toro 230170

Insert

$

$

Currently unavailable

8

Toro 234866

Bearing
(Superseded to 700765)

$

$

Not available

9

Toro 47 041 09

Gasket-Bearing Plate

$

$

Currently unavailable

10

Toro 47 422 05

Gasket-Shim

$

$

Currently unavailable

11

Toro 47 146 07

Bearing Plate

$

$

Currently unavailable

12

Toro 47 032 06

Seal-Front Oil

$

$

Currently unavailable

13

Toro X-159-2

Screw

$

$

Currently unavailable

14

Toro X-132-6

Screw

$

$

Currently unavailable

15

Toro 23d5026

Camshaft Cover

$

$

Currently unavailable

16

Toro 235025

Gasket

$

$

Currently unavailable

18

Toro 236559

Shaft
(Superseded to 740883)

$

$

Not available

19

Toro 47 015 06

Head-Cylinder

$

$

Currently unavailable

20

Toro 47 041 10

Head Gasket

$

$

Currently unavailable

21

Toro 270889

Washer

$

$

Currently unavailable

22

Toro 270158

Screw

$

$

Currently unavailable

23

Toro 47 445 02

Strap-Lifting

$

$

Currently unavailable

24

Toro 47 086 17

Screw-Hex Soc Hd

$

$

Currently unavailable
