B2-11B301 (211-3) - Toro Lawn Tractor (1985) FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

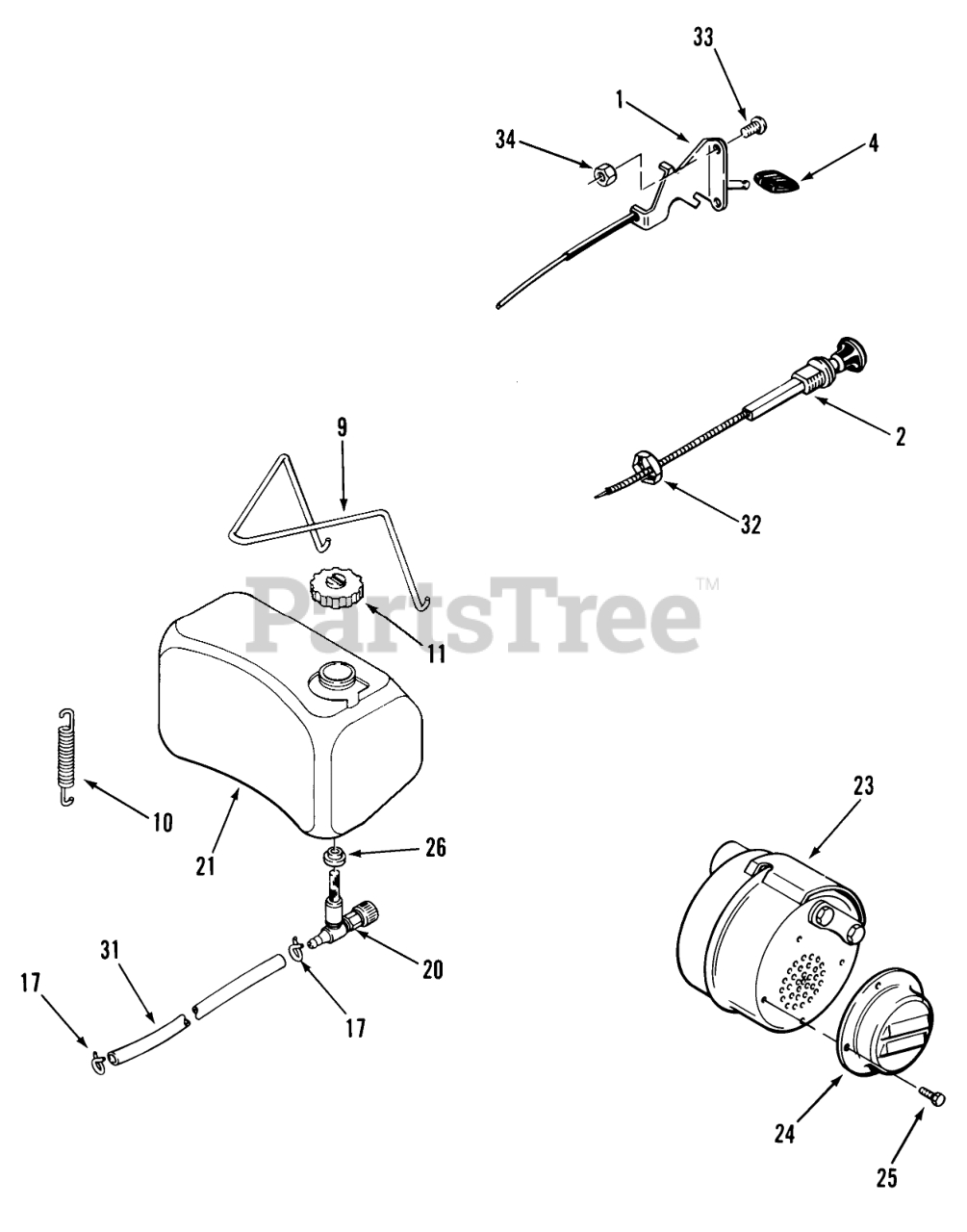

FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 110810

CONTROL THROTTLE

$

$

Not available

Toro 110684

Choke/Throttle Control
(Superseded to 115789)

$

$

Not available

2

Toro 110811

Choke Control 216-5 Only

$

$

Not available

4

Toro 108917

KNOB-THROTTLE

$3.99

$

In Stock, Qty 9

0

9

Toro 109960

Hold Down Wire

$

$

Not available

10

Toro 107788

SPRING-EXTENSION

$

$

Not available

11

Toro 108011

CAP-GASOLINE

$61.99

$

In Stock, only 1 left!

0

17

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

20

Toro 104048

VALVE-FUEL

$39.99

$

In Stock, only 3 left!

0

21

Toro 109961

Fuel Tank Assy

$

$

Not available

23

Toro 110774

MUFFLER

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON 208-3 & 216-5 Models

$

$

Not available

Toro 110771

Muffler-Chrome-211-A Only
(Superseded to 110774)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON 208-3 & 216-5 Models

$

$

Not available

24

Toro 110775

DEFLECTOR MUFFLER

$

$

Not available

Toro 110772

Deflector 45 111-5 Only
(Superseded to 110775)

$

$

Not available

25

Toro 110776

Hex HD Screw 8-32 x 3/8-Black-211-3, 211-5

$

$

Not available

Toro 110773

Screw 8-32 x 3/8 111-6

$

$

Not available

26

Toro 104047

BUSHING
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

31

Toro 110433

Fuel Hose 14.5 in. (36.8 cm) B-115 Only
(Superseded to 100061)

$

$

Not available

Toro 9147

Hose
(Superseded to 100061)

$

$

Not available

32

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 3 left!

0

33

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

34

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0
