B75 K2 LD (EV4000) - Honda Outboard Engine, Made in Japan (SN: EV4000-100000 - EV4000-9999999) WATER PUMP + VERTICAL SHAFT Parts Diagram

Outboard Engine, Made in Japan

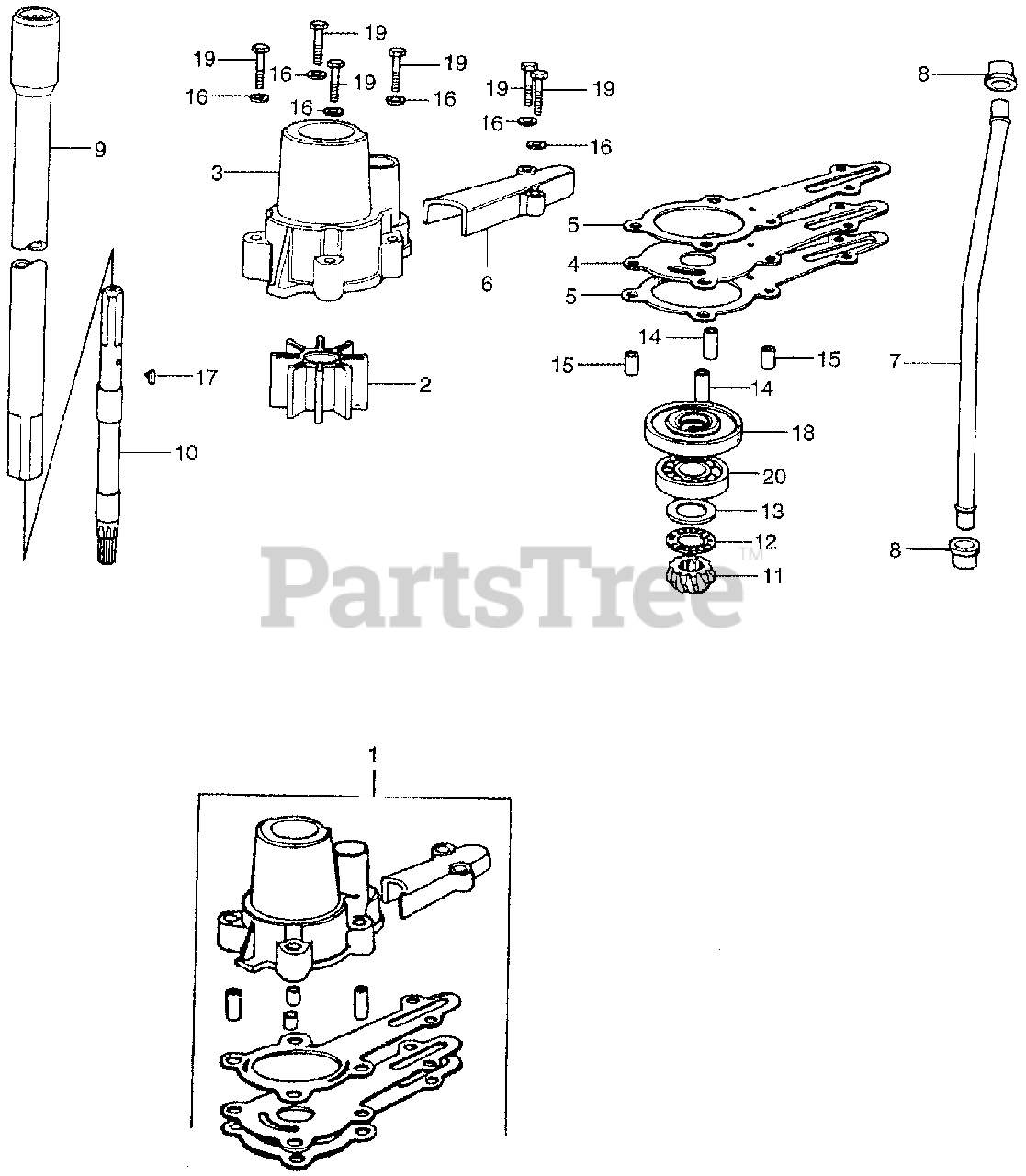

WATER PUMP + VERTICAL SHAFT Parts Diagram

  • Title

1

Honda 19200-935-305

SEE PART DETAILS - PRI; HOUSING, IMPELLER (NOT AVAILABLE)

$

$

Not available

2

Honda 19210-935-003

IMPELLER, PUMP

$42.99

$

Usually ships in 3-6 days

0

3

Honda 19220-935-010

HOUSING, IMPELLER (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 19231-935-010

SEE PART DETAILS - PRI; COVER, IMPELLER (NOT AVAILABLE)

$

$

Not available

5

Honda 19232-935-306

SEE PART DETAILS - PRI; GASKET, IMPELLER

$

$

Not available

6

Honda 19233-935-000

HOLDER, IMPELLER COVER (NOT AVAILABLE)

$

$

Not available

7

Honda 19251-935-700

TUBE, WATER (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 19251-935-000

TUBE, WATER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 19252-921-020

RING, SEAL

$4.49

$

In Stock, only 4 left!

0

9

Honda 41110-935-701

SEE PART DETAILS - PRI; SHAFT, VERTICAL (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 41110-935-010

SEE PART DETAILS - PRI; SHAFT, VERTICAL

$

$

Currently unavailable

10

Honda 41121-881-000

SEE PART DETAILS - PRI; SHAFT, PINION (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 41131-935-315

SEE PART DETAILS - PRI; PINION, BEVEL

$

$

Currently unavailable

12

Honda 41132-935-003

BEARING, THRUST (15MM)

$

$

Not available

13

Honda 41135-935-003

WASHER A, THRUST BEARING (2.00MM)

$7.99

$

Usually ships in 3-6 days

0

13

Honda 41136-935-003

WASHER B, THRUST BEARING (2.05MM)

$7.99

$

Usually ships in 3-6 days

0

13

Honda 41137-935-003

WASHER C, THRUST BEARING (2.10MM)

$7.99

$

Usually ships in 3-6 days

0

14

Honda 90111-935-000

COLLAR A, DISTANCE

$

$

Not available

15

Honda 90112-935-000

COLLAR B, DISTANCE (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, Qty 5

0

17

Honda 90751-921-010

KEY, IMPELLER

$

$

Not available

18

Honda 91252-935-004

SEE PART DETAILS - PRI; SEAL, WATER (15MM) (NOK)

$20.99

$

In Stock, only 1 left!

0

19

Honda 92101-06028-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X28)

$5.99

$

Usually ships in 3-6 days

0

20

Honda 96100-63020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302)

$10.99

$

Usually ships in 3-6 days

0
