B75 K3 SD (EV4000) - Honda Outboard Engine, Made in Japan (SN: EV4000-100000 - EV4000-9999999) OIL CASE + ENGINE COVER Parts Diagram

Outboard Engine, Made in Japan

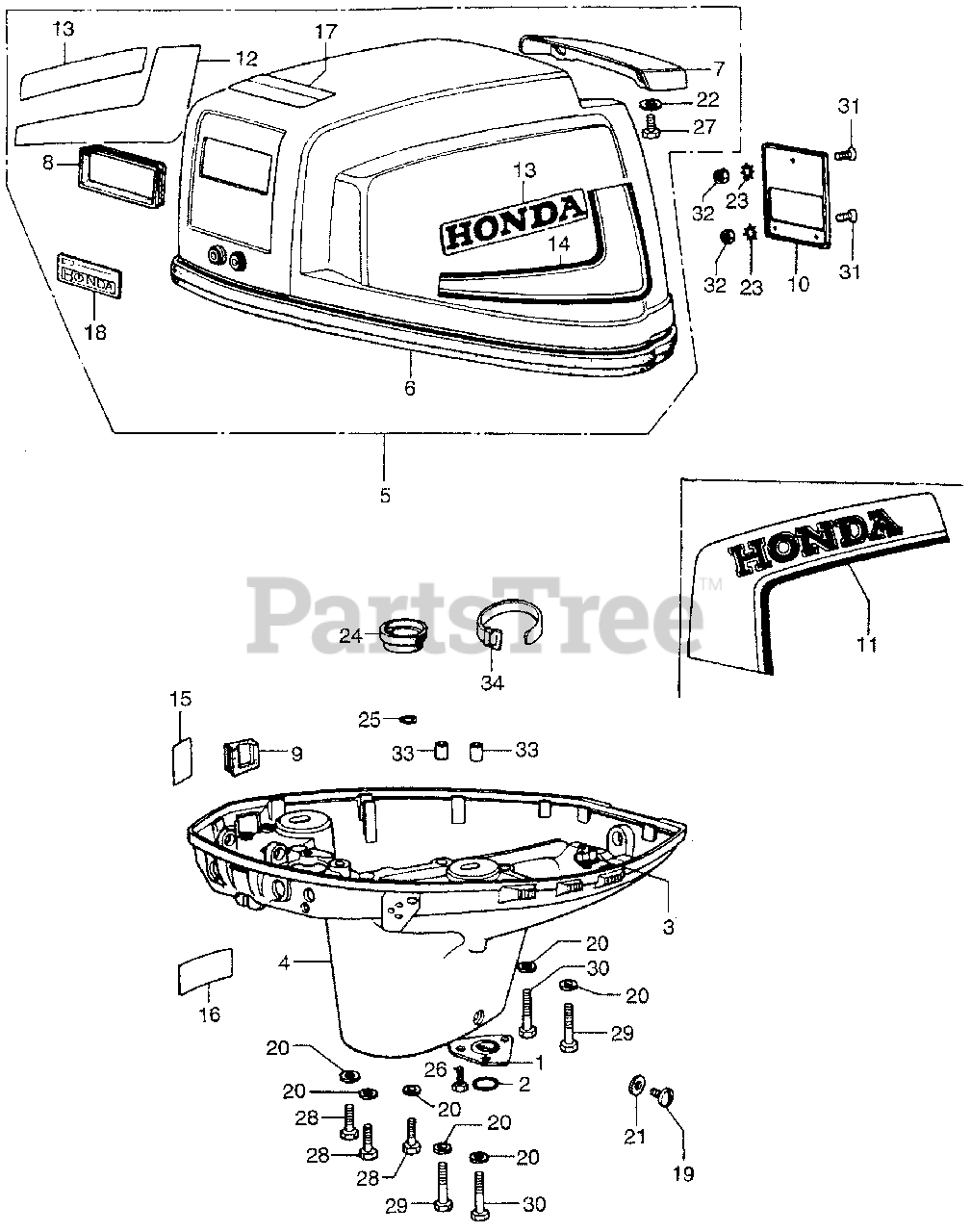

OIL CASE + ENGINE COVER Parts Diagram

  • Title

1

Honda 18221-921-010

PLATE, EX.

$

$

Not available

2

Honda 18222-921-000

BAND, EX.

$

$

Currently unavailable

3

Honda 19262-921-000

MANIFOLD, TUBE

$

$

Not available

4

Honda 40101-935-010N

CASE, OIL *PB1* (DARK BLUE)

$

$

Not available

5

Honda 63100-935-601ZA

COVER, ENGINE *PB52/NH31* (AQUARIUS BLUE/MC KINLEY WHITE) (N/A: SEE COMPONENTS)

$

$

Currently unavailable

6

Honda 63102-921-310

SEAL, ENGINE COVER

$

$

Currently unavailable

7

Honda 63105-921-320N

HANDLE, TILT *PB1* (DARK BLUE)

$

$

Currently unavailable

8

Honda 63109-921-310

SEAL, RECOIL (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 82872-935-000B

SEE PART DETAILS - PRI; GROMMET A, OIL CASE (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 87121-935-000

EMBLEM, RR. (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 87131-935-010DY

EMBLEM, R. SIDE COVER *PB52* (AQUARIUS BLUE)

$

$

Currently unavailable

13

Honda 87132-935-000

LABEL, SIDE COVER (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 87141-935-010DY

EMBLEM, L. SIDE COVER *PB52* (AQUARIUS BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 87511-921-600

MARK, CHANGE

$

$

Currently unavailable

16

Honda 87531-935-630

LABEL, OIL FILLER POSITION

$

$

Currently unavailable

17

Honda 87538-935-602

SEE PART DETAILS - PRI; MARK, STARTER CAUTION

$

$

Currently unavailable

18

Honda 87551-921-600

MARK, FR.

$

$

Currently unavailable

19

Honda 90105-921-000

BOLT, OIL CHECK

$7.99

$

Usually ships in 3-6 days

0

20

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, Qty 5

0

21

Honda 90475-703-000

WASHER C (8MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 90512-921-010

SEE PART DETAILS - PRI; WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90519-921-000

WASHER, LOCK (4MM) (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 91255-935-003

SEE PART DETAILS - PRI; SEAL, COUPLING (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 91301-PM5-A01

SEE PART DETAILS - PRI; O-RING (9.8X1.9)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 92101-05010-4J

SEE PART DETAILS - PRI; BOLT, HEX. (5X10)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 92101-06016-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 92000-06032-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X32) (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 90113-ZV0-000

SEE PART DETAILS - PRI; BOLT, HEX. (6X35)

$4.99

$

Usually ships in 3-6 days

0

30

Honda 92000-06045-4J

SEE PART DETAILS - SUP; BOLT, HEX. (6X45)

$

$

Currently unavailable

31

Honda 93500-04008-0G

SEE PART DETAILS - PRI; SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94001-04490-0S

NUT, HEX. (4MM)

$

$

Currently unavailable

33

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

34

Honda 95014-62100

BAND B1, CABLE

$1.99

$

In Stock, only 1 left!

0
