BA 100 (UT-15500) - Homelite Expand-It Attachment Blower Parts Diagram

Expand-It Attachment

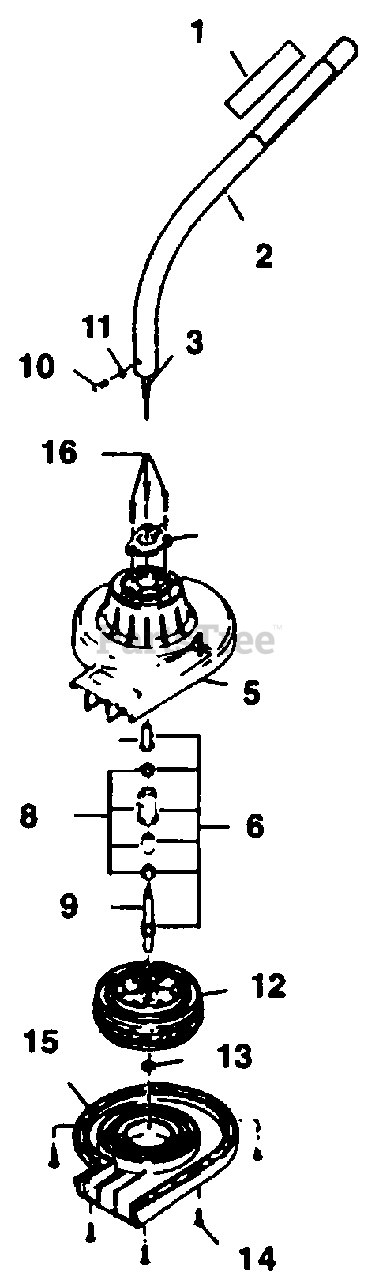

Blower Parts Diagram

  • Title

1

Homelite A07929

DRIVE SHAFT HOUSING
(Superseded to UP06790)

$

$

Currently unavailable

2

Homelite 02985

Decal, Warning
(Superseded to 983751001)

$

$

Not available

3

Homelite A07844

Flex Cable

$

$

Not available

4

Homelite GM235205

CLAMP

$

$

Not available

5

Homelite A07932

UPPER HOUSING
(Superseded to UP06874)

$

$

Not available

6

Homelite A07933

BEARING HOUSING

$

$

Currently unavailable

?7

Homelite GM166501

Arbor Adapter

$

$

Not available

8

Homelite GM160305

Arbor Busing Assy
(Superseded to UP06876)

$

$

Not available

9

Homelite GM236701

Arbor Shaft
(Superseded to UP04699)

$

$

Not available

10

Homelite GM011401

Screw

$

$

Not available

11

Homelite GM041101

Washer

$

$

Not available

12

Homelite GM235203

IMPELLER

$

$

Not available

13

Homelite GM167602

PAL NUT

$

$

Not available

14

Homelite GM201044

SCREW
(Superseded to UP04141)

$

$

Not available

15

Homelite 07839

LOWER HOUSING

$

$

Not available

16

Homelite GM011102

SCREW
(Superseded to UP04250)

$

$

Not available

?17

Homelite GM286903

GUARD, LOWER HOUSING

$

$

Not available

?18

Homelite GM011108

SCREW

$

$

Not available
