BAG-3813 BA (GB3) - Honda Grass Catcher for 38" Cutter Deck (SN: GB3-0000001 - GB3-9999999) HOPPER (BAG-3813) Parts Diagram

Grass Catcher for 38" Cutter Deck

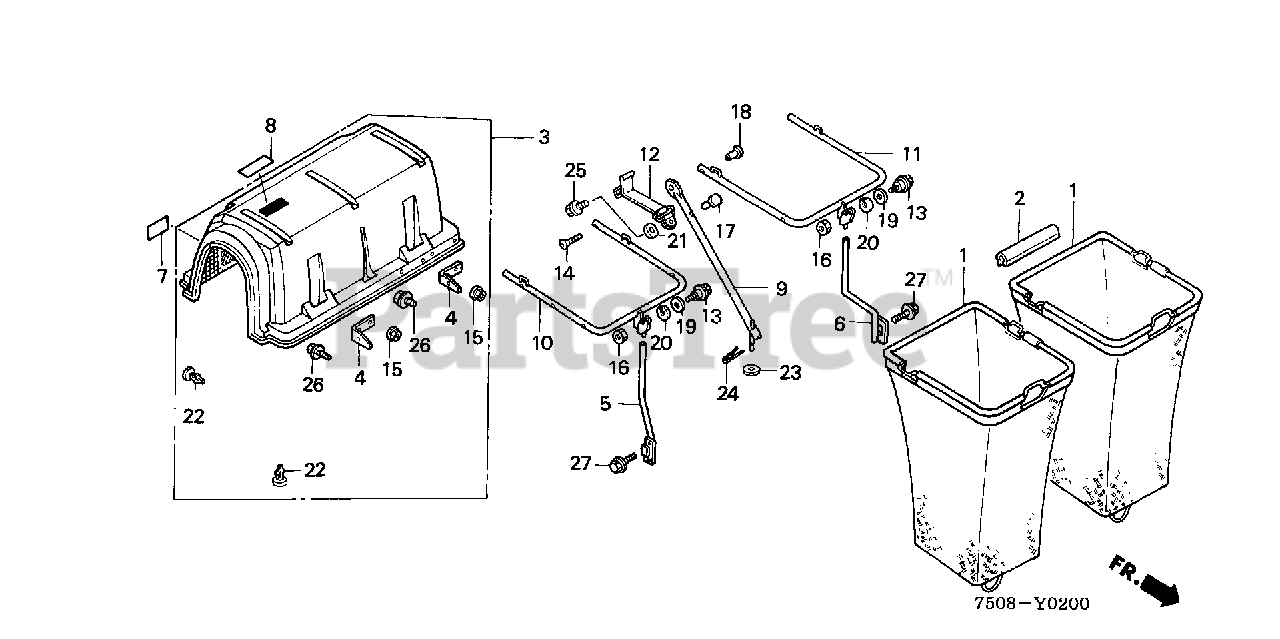

HOPPER (BAG-3813) Parts Diagram

  • Title

1

Honda 81100-751-801

SEE PART DETAILS - SUP; BAG ASSY., GRASS
(Superseded to 81310-758-S00)

$105.99

$

Usually ships in 3-6 days

0

1

Honda 81100-751-802

SEE PART DETAILS - SUP; BAG ASSY., GRASS (ENGLISH)
(Superseded to 81310-758-S00)

$105.99

$

Usually ships in 3-6 days

0

1

Honda 81310-758-S00

SEE PART DETAILS - PRI; BAG, GRASS

$105.99

$

Usually ships in 3-6 days

0

2

Honda 81342-751-800

CLIP, GRASS BAG TUBE

$

$

Not available

3

Honda 82000-751-800

HOPPER ASSY., TOP

$

$

Not available

4

Honda 82117-751-800

HINGE, HOPPER TOP

$17.99

$

Usually ships in 3-6 days

0

5

Honda 82119-750-920

POST, R. SUPPORT

$

$

Currently unavailable

6

Honda 82120-750-920

POST, L. SUPPORT

$

$

Currently unavailable

7

Honda 82126-751-800

LABEL, HOPPER TOP (E)

$

$

Not available

7

Honda 82126-751-900

LABEL, HOPPER TOP

$

$

Not available

8

Honda 82145-751-800

LABEL, HOPPER TOP ROOF (E)

$

$

Currently unavailable

8

Honda 82145-751-900

LABEL, HOPPER TOP ROOF

$

$

Not available

9

Honda 82222-750-920

BRACE, SUPPORT

$

$

Currently unavailable

10

Honda 82305-751-800

STAY, R. SUPPORT

$

$

Not available

11

Honda 82306-751-800

STAY, L. SUPPORT

$157.99

$

Usually ships in 3-6 days

0

12

Honda 82314-751-800

SEE PART DETAILS - PRI; BAND ASSY., HOPPER TOP

$

$

Not available

13

Honda 90106-751-010

SEE PART DETAILS - PRI; BOLT, HINGE (10MM)

$6.49

$

In Stock, only 2 left!

0

14

Honda 90126-KA4-000

SCREW, FLAT (8X45)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90203-PD1-000

SEE PART DETAILS - SUP; NUT, FLANGE (6MM)

$

$

Currently unavailable

15

Honda 90301-428-900

SEE PART DETAILS - SUP; NUT, FLANGE (6MM)

$

$

Currently unavailable

15

Honda 94050-06070

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90304-GA6-003

NUT, AXLE (10MM)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90306-751-800

NUT, PIPE (6MM)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90307-751-800

NUT, PIPE (8MM)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90417-HA0-000

WASHER, THRUST (14MM)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90432-751-800

WASHER, SPRING (14MM)

$5.99

$

Usually ships in 3-6 days

0

21

Honda 72998-5003

SEE PART DETAILS - PRI; WASHER (3/8")

$0.99

$

Usually ships in 3-6 days

0

22

Honda 90667-751-801

CLIP, SCREEN

$2.99

$

Usually ships in 3-6 days

0

23

Honda 94103-10000

WASHER, FLAT (10MM)

$0.99

$

Usually ships in 3-6 days

0

24

Honda 94252-10000

SEE PART DETAILS - PRI; PIN, LOCK (10MM)

$1.49

$

In Stock, only 3 left!

0

25

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 20+

0

26

Honda 95701-06018-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 95700-08020-07

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)

$

$

Currently unavailable

27

Honda 95701-08020-07

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
