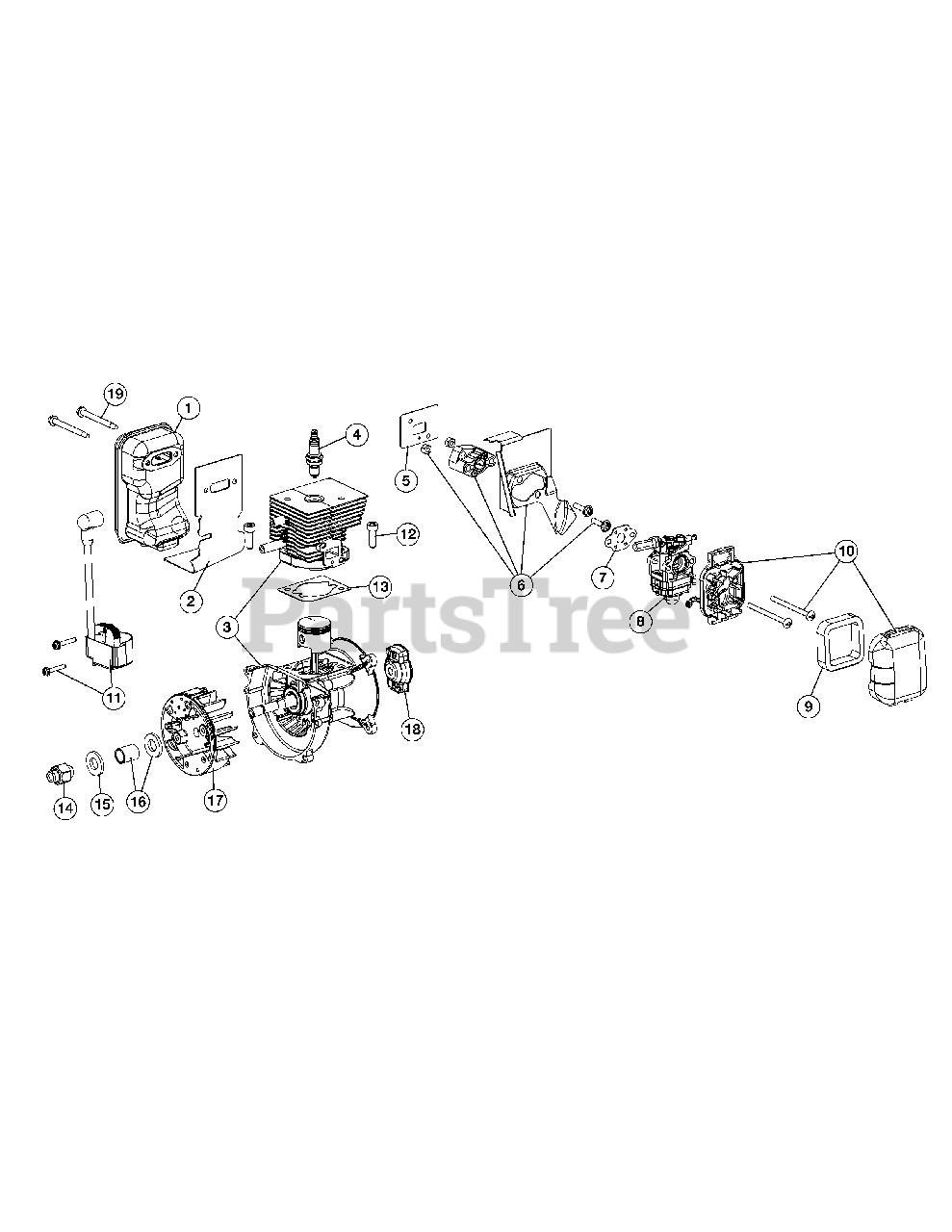

BB 227 (41CR2BPG912) - Cub Cadet Backpack Blower (2010) Engine Assembly Parts Diagram

Backpack Blower

Engine Assembly Parts Diagram

  • Title
1

Cub Cadet 753-05631

Muffler Assembly (Incl. Ref No. 2 & 19)

$

$

Not available

2

Cub Cadet 753-05701

Muffler Gasket

$

$

Not available

3

Cub Cadet 753-05636

Shortblock Assembly (Incl. Ref No. 4 & 11-17)

$

$

Not available

4

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

$3.79

$

In Stock, Qty 20+

0

5

Cub Cadet 753-05702

Insulator Gasket

$

$

Not available

6

Cub Cadet 753-05632

Insulator Assembly (Incl. Ref No. 5)

$

$

Not available

7

Cub Cadet 791-181709

Carburetor Gasket

$3.97

$

In Stock, Qty 20+

0

8

Cub Cadet 753-05633

Carburetor Assembly (Incl. Ref No. 7)

$50.27

$

Usually ships in 5-10 days

0

9

$3.52

$

In Stock, Qty 20+

0

10

Cub Cadet 753-05634

Air Cleaner Assembly (Incl. Ref No. 9)

$13.29

$

In Stock, Qty 6

0

11

Cub Cadet 753-04324

Module Assembly

$89.23

$

Usually ships in 5-10 days

0

$5.53

$

Usually ships in 5-10 days

0

13

Cub Cadet 753-05704

Cylinder Gasket

$

$

Not available

14

Cub Cadet 753-05705

Flywheel Adapter

$7.42

$

In Stock, only 4 left!

0

15

$

$

Not available

16

$2.69

$

In Stock, only 2 left!

0

17

Cub Cadet 753-05708

Flywheel Assembly

$29.42

$

Usually ships in 5-10 days

0

18

Cub Cadet 753-05635

Pawl Assembly

$11.13

$

Usually ships in 5-10 days

0

19

Cub Cadet 710-04188A

Muffler Screws

$3.34

$

In Stock, only 2 left!

0
