BB 2280 - Jonsered Blower/Vacuum (2013-11) ENGINE Parts Diagram

Blower/Vacuum

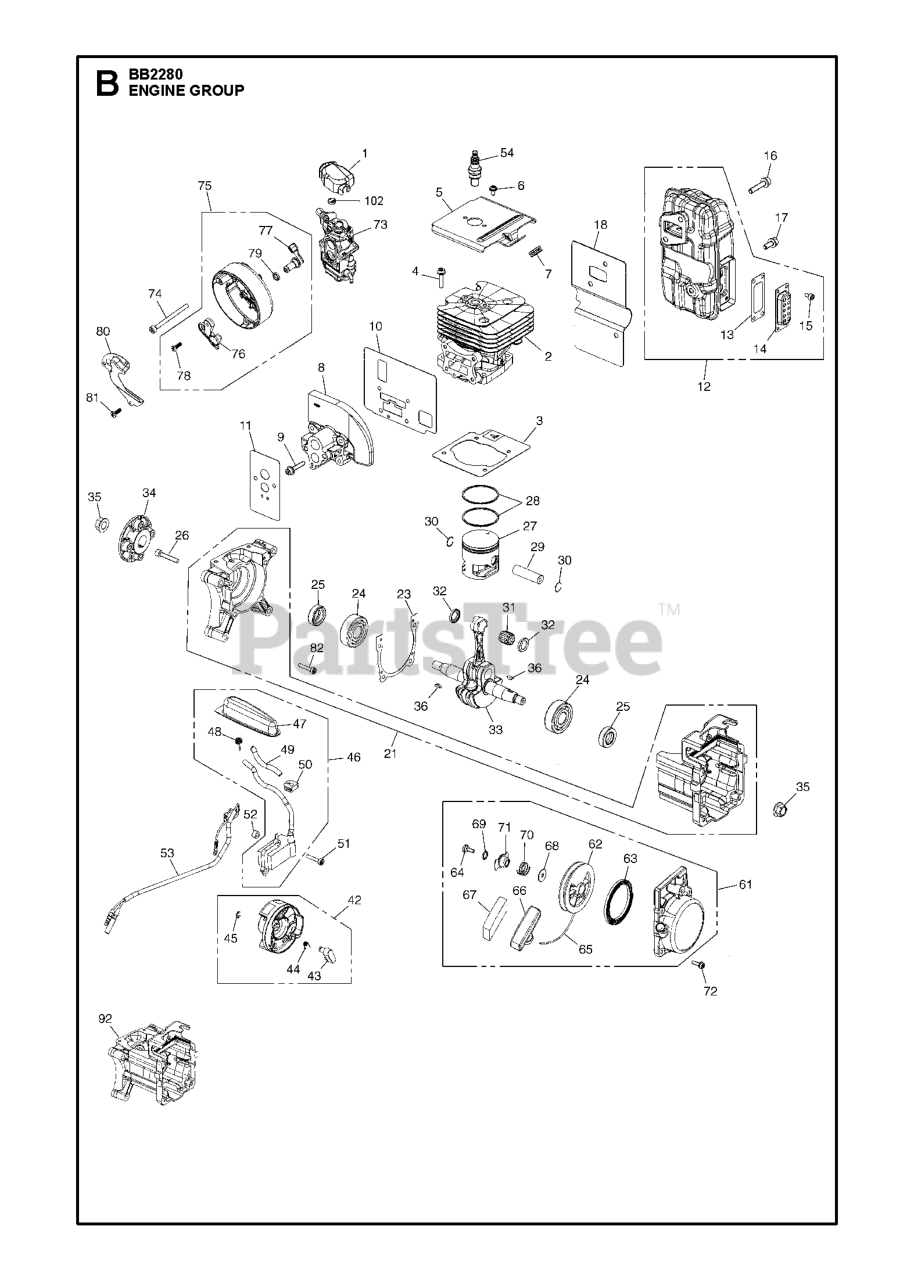

ENGINE Parts Diagram

  • Title

1

Jonsered 506744201

COVER

$10.99

$

Usually ships in 3-10 days

0

2

Jonsered 577424001

CYLINDER ASSY

$87.99

$

In Stock, Qty 9

0

3

Jonsered 576589401

GASKET

Note: . 101

$4.99

$

In Stock, Qty 20+

0

4

Jonsered 506745201

BOLT
(Superseded to 521345201)

$4.99

$

In Stock, Qty 11

0

5

Jonsered 576589501

PLATE

$8.99

$

Usually ships in 3-10 days

0

6

Jonsered 544256801

SCREW

$6.49

$

In Stock, Qty 10

0

7

Jonsered 576589601

GROMMET

$3.99

$

Usually ships in 3-10 days

0

8

Jonsered 578108301

INSULATOR

$34.99

$

In Stock, only 3 left!

0

9

Jonsered 576589801

BOLT

$3.99

$

In Stock, only 1 left!

0

10

Jonsered 577694801

GASKET

Note: . 91 101

$13.99

$

In Stock, Qty 20+

0

11

Jonsered 577089601

GASKET

Note: . 91 101

$3.99

$

In Stock, Qty 20+

0

12

Jonsered 577953501

MUFFLER ASSY
(Superseded to 585044201)

$100.99

$

Usually ships in 3-10 days

0

13

Jonsered 576590501

SPARK ARRESTER
(Superseded to 585044401)

Note: . 12

$2.49

$

Usually ships in 3-10 days

0

14

Jonsered 576590601

DIFFUSOR

$7.49

$

In Stock, only 1 left!

0

15

Jonsered 544362701

BOLT

Note: . 12

$4.99

$

In Stock, Qty 9

0

16

Jonsered 576590701

BOLT

$4.99

$

In Stock, only 2 left!

0

17

Jonsered 576590801

BOLT

$3.99

$

In Stock, Qty 11

0

18

Jonsered 578108301

INSULATOR

$34.99

$

In Stock, only 3 left!

0

21

Jonsered 576591101

CRANKCASE COMP

$46.99

$

Usually ships in 3-10 days

0

23

Jonsered 576591601

GASKET

Note: . 92 101

$6.49

$

In Stock, Qty 20+

0

24

Jonsered 521521301

BALL BEARING

Note: . 92

$18.99

$

In Stock, Qty 13

0

25

Jonsered 521521901

SEAL
(Superseded to 544258501)

Note: . 92

$8.99

$

In Stock, Qty 13

0

26

Jonsered 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

27

Jonsered 576596501

PISTON

$80.99

$

In Stock, Qty 10

0

28

Jonsered 576596701

RISTON RING

$6.49

$

In Stock, Qty 20+

0

29

Jonsered 576596801

PISTON PIN

$10.99

$

In Stock, only 2 left!

0

30

Jonsered 521531901

SNAP RING

$6.49

$

In Stock, Qty 15

0

31

Jonsered 576696401

BEARING
(Superseded to 544259601)

$18.99

$

In Stock, Qty 11

0

32

Jonsered 521520501

WASHER

$4.99

$

In Stock, only 3 left!

0

33

Jonsered 576591901

CRANKSHAFT COMP

$169.99

$

Usually ships in 3-10 days

0

34

Jonsered 576592701

COUPLING

$31.99

$

Usually ships in 3-10 days

0

35

Jonsered 513241901

NUT

$6.49

$

In Stock, Qty 9

0

36

Jonsered 506689401

KEY
(Superseded to 516147801)

$4.99

$

In Stock, Qty 8

0

42

Jonsered 584809701

Rotor Assembly
(Superseded to 587655101)

$

$

Not available

43

Jonsered 576593201

RATCHET

Note: . 42

$6.49

$

In Stock, Qty 20+

0

44

Jonsered 576593301

SPRING

Note: . 42

$4.99

$

In Stock, Qty 7

0

45

Jonsered 510490101

RING

Note: . 42

$4.99

$

In Stock, Qty 6

0

46

Jonsered 583916701

Ignition Coil Assembly
(Superseded to 598471801)

$47.99

$

In Stock, Qty 13

0

47

Jonsered 576593601

CAP

Note: . 46

$11.99

$

Usually ships in 3-10 days

0

48

Jonsered 513243301

SPRING PLUG

Note: . 46

$4.99

$

In Stock, only 2 left!

0

49

Jonsered 576593701

TUBE

Note: . 46

$3.49

$

Usually ships in 3-10 days

0

50

Jonsered 515415301

GROMMET
(Superseded to 521358801)

Note: . 46

$3.99

$

Usually ships in 3-10 days

0

51

Jonsered 579383001

Bolt

$5.99

$

In Stock, only 1 left!

0

52

Jonsered 521769701

SPACER
(Superseded to 588171401)

$6.49

$

In Stock, only 3 left!

0

53

Jonsered 576593801

CORD

$17.99

$

In Stock, Qty 6

0

54

Jonsered 521233401

$4.46

$

Usually ships in 3-10 days

0

61

Jonsered 576594001

RECOIL ASSY

Note: . 1

$67.99

$

Usually ships in 3-10 days

0

62

Jonsered 576594201

REEL

Note: . 61

$10.99

$

Usually ships in 3-10 days

0

63

Jonsered 521629601

SPRING

Note: . 61

$17.99

$

In Stock, only 3 left!

0

64

Jonsered 515367101

SCREW

Note: . 61

$4.99

$

In Stock, only 1 left!

0

65

Jonsered 577053101

ROPE

Note: . 61

$7.49

$

In Stock, only 3 left!

0

66

Jonsered 521630001

KNOB
(Superseded to 544261501)

Note: . 61

$7.49

$

In Stock, only 2 left!

0

67

Jonsered 544261601

COVER
(Superseded to 521631301)

Note: . 61

$3.99

$

In Stock, only 1 left!

0

68

Jonsered 521630801

WASHER
(Superseded to 544261801)

Note: . 61

$4.99

$

In Stock, Qty 20+

0

69

Jonsered 521631201

WASHER

Note: . 61

$4.99

$

In Stock, Qty 5

0

70

Jonsered 521630601

SPRING FRICTION

Note: . 61

$3.99

$

In Stock, only 1 left!

0

71

Jonsered 521630301

PLATE
(Superseded to 544262001)

Note: . 61

$11.99

$

Usually ships in 3-10 days

0

72

Jonsered 506745601

BOLT

$3.99

$

In Stock, Qty 20+

0

73

Jonsered 581177001

Carburetor Assembly

$97.99

$

In Stock, Qty 16

0

74

Jonsered 515390701

BOLT

$4.99

$

Usually ships in 3-10 days

0

75

Jonsered 576594501

CUP ASSY

$34.99

$

In Stock, Qty 14

0

76

Jonsered 576594701

PLATE CHOKE

Note: . 75

$6.49

$

In Stock, Qty 16

0

77

Jonsered 576594801

LEVER

Note: . 75

$3.99

$

In Stock, Qty 20+

0

78

580309001

Note: . 75

$

$

Not available

79

Jonsered 516136001

O-Ring

Note: . 75

$4.99

$

In Stock, Qty 17

0

80

Jonsered 576594901

PLATE
(Superseded to 582900001)

$6.49

$

In Stock, Qty 15

0

81

Jonsered 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 12

0

82

Jonsered 576564301

BOLT

$4.99

$

In Stock, Qty 8

0

92

Jonsered 577083801

CRANKCASE ASSY

$120.99

$

In Stock, only 1 left!

0

102

Jonsered 513352401

CAP

$4.99

$

In Stock, only 2 left!

0
