BB 45 (59AG306-195) - MTD Pro Blower Engine Assembly SN 001301 And Above Parts Diagram

Pro Blower

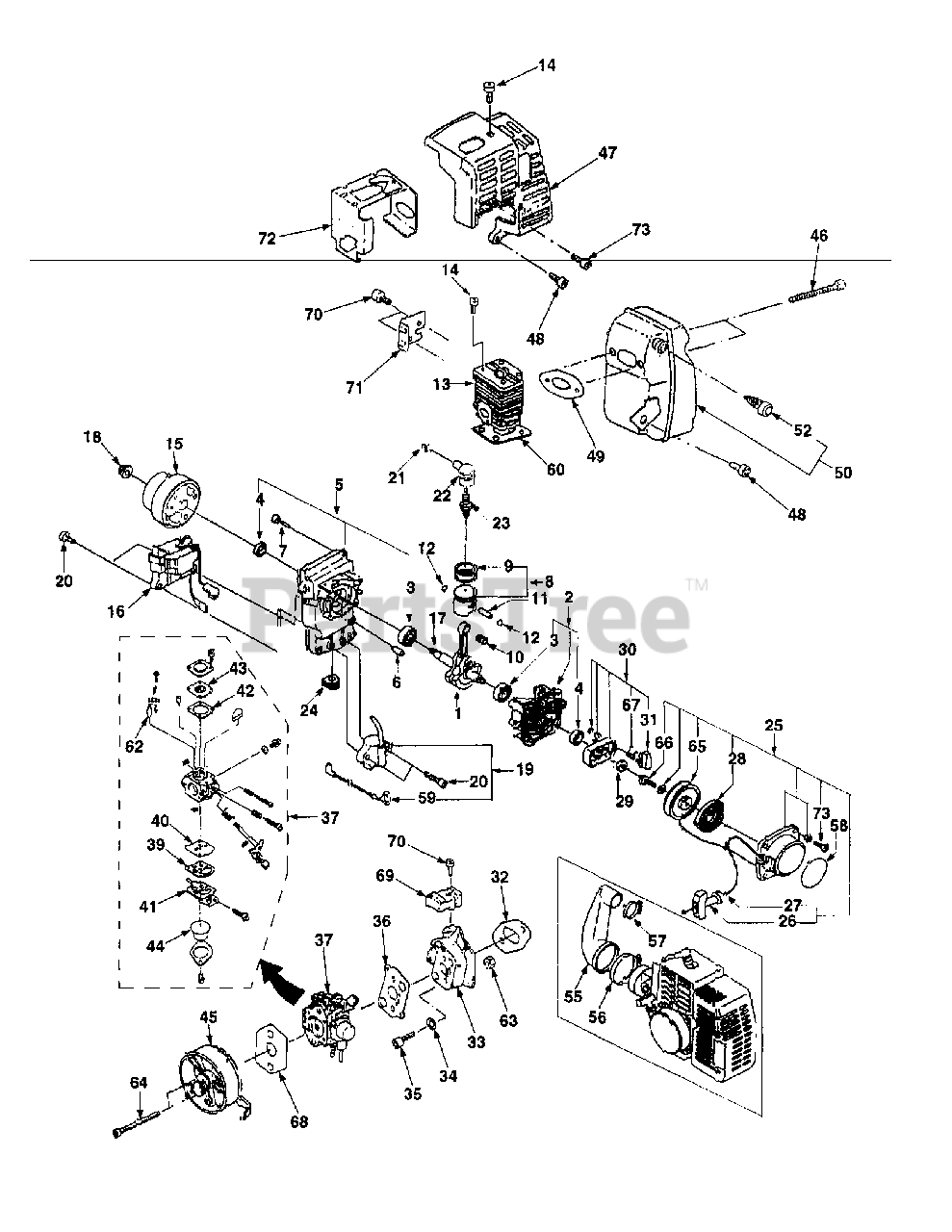

Engine Assembly SN 001301 And Above Parts Diagram

  • Title

1

MTD IM-115253481

Crankshaft

$

$

Not available

2

MTD IM-110035251

Crankcase Ass'y

Note: NLA

$

$

Not available

3

MTD IM-040106202

Ball Bearing; 6202

$

$

Not available

4

MTD IM-050209106

Oil Seal

$

$

Not available

5

MTD IM-110035232

Crankcase Ass'y

$

$

Not available

6

MTD IM-030500512

Dowel Pin

$

$

Not available

7

MTD IM-010709011

Bolt; M5x30

$

$

Not available

8

MTD IM-115013330

Piston Ass'y

$

$

Not available

9

MTD IM-115115700

Ring, Piston

Note: NLA

$

$

Not available

10

MTD IM-042709006

Needle, Bearing

$

$

Not available

11

MTD IM-115323030

Pin, Piston

$

$

Not available

12

MTD IM-198343040

Clip, Piston Pin

$

$

Not available

13

MTD IM-110213612

Cylinder

$

$

Not available

14

MTD IM-010709008

Bolt; M5x16

$3.49

$

In Stock, only 2 left!

0

15

MTD IM-150103510

Flywheel, Magneto

$

$

Not available

16

MTD IM-150583070

CDI Unit

$

$

Not available

17

MTD IM-034309031

Key

$

$

Not available

18

MTD IM-023100010

Nut

$

$

Not available

19

MTD IM-150053361

Coil Ass'y, Ignition

$

$

Not available

20

MTD IM-010709032

Bolt; M4x16

$

$

Not available

21

MTD IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

22

MTD IM-150413033

Cap, Plug

$

$

Not available

23

MTD IM-150265091

Plug, Spark
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

24

MTD IM-198113530

Rubber

$

$

Not available

25

MTD IM-155103481

Recoil Ass'y

$

$

Not available

26

MTD IM-155223050

Knob, Starter

$

$

Not available

27

MTD IM-155213141

Rope, Starter

$

$

Not available

28

MTD IM-155263280

Spring, Spiral

$

$

Not available

29

MTD IM-020700008

Nut

$

$

Not available

30

MTD IM-155353102

Pulley, Starter

$

$

Not available

31

MTD IM-155163081

Ratchet

$

$

Not available

32

MTD n/a

Gasket, Insulator

$

$

Currently unavailable

33

MTD IM-199513520

Insulator

$

$

Not available

34

MTD IM-026100005

Washer

Note: NLA

$

$

Not available

35

MTD IM-010709010

Bolt; M5X25

$

$

Not available

36

MTD n/a

Gasket, Carburetor

$

$

Currently unavailable

37

MTD IM-130104490

Carburetor Ass'y

$

$

Not available

39

MTD IM-130513413

Gasket

$10.99

$

Usually ships in 3-6 days

0

40

MTD IM-130513409

Diaphragm, Pump

$

$

Not available

41

MTD IM-130513414

Body, Pump

$

$

Not available

42

MTD IM-130123350

Gasket

$

$

Not available

43

MTD IM-130283357

Diaphragm, Pump

$

$

Not available

44

MTD IM-198113900

Rubber

$22.99

$

Usually ships in 3-6 days

0

45

MTD IM-135153101

Case Compl

$

$

Not available

46

MTD IM-010709040

Bolt; M5x58

$

$

Not available

47

MTD IM-175163880

Cowling

$

$

Not available

48

MTD IM-010709006

Bolt; M5x12

$

$

Not available

49

MTD n/a

Gasket, Muffler

$

$

Currently unavailable

50

MTD IM-135403720

Muffler

$

$

Not available

52

MTD IM-135493090

Arrester

$12.99

$

In Stock, only 1 left!

0

55

MTD IM-135563172

Elbow, Intake

$

$

Not available

56

MTD IM-198756170

Band

$

$

Not available

57

MTD IM-398750260

Band

$

$

Not available

58

MTD IM-190333300

Trade Mark

$

$

Not available

59

MTD IM-150813250

Harness, Wire

$

$

Not available

60

MTD IM-110993430

Gasket, Cylinder

$

$

Not available

?61

MTD IM-135994340

Gasket Kit

$

$

Not available

62

MTD IM-130153210

Valve, Float

$

$

Not available

63

MTD IM-020100005

Nut

$

$

Not available

64

MTD IM-010709021

Bolt; M5x50

$

$

Not available

65

MTD IM-155183140

Reel

$

$

Not available

66

MTD IM-155343070

Screw

$

$

Not available

67

MTD IM-155263300

Spring, Return

$

$

Not available

68

MTD n/a

Gasket, Air Silencer

$

$

Currently unavailable

69

MTD IM-125543090

Adjuster

$

$

Not available

70

MTD IM-010709015

Bolt, M4x12

$

$

Not available

71

MTD IM-175133150

Plate, Baffle

$

$

Not available

72

MTD IM-175163870

Cowling

$

$

Not available

73

MTD IM-010709009

Bolt, M5x20

$

$

Not available
