BB 45-C (59AG306-050) - Cub Cadet Backpack Blower Blower Parts Diagram

Backpack Blower

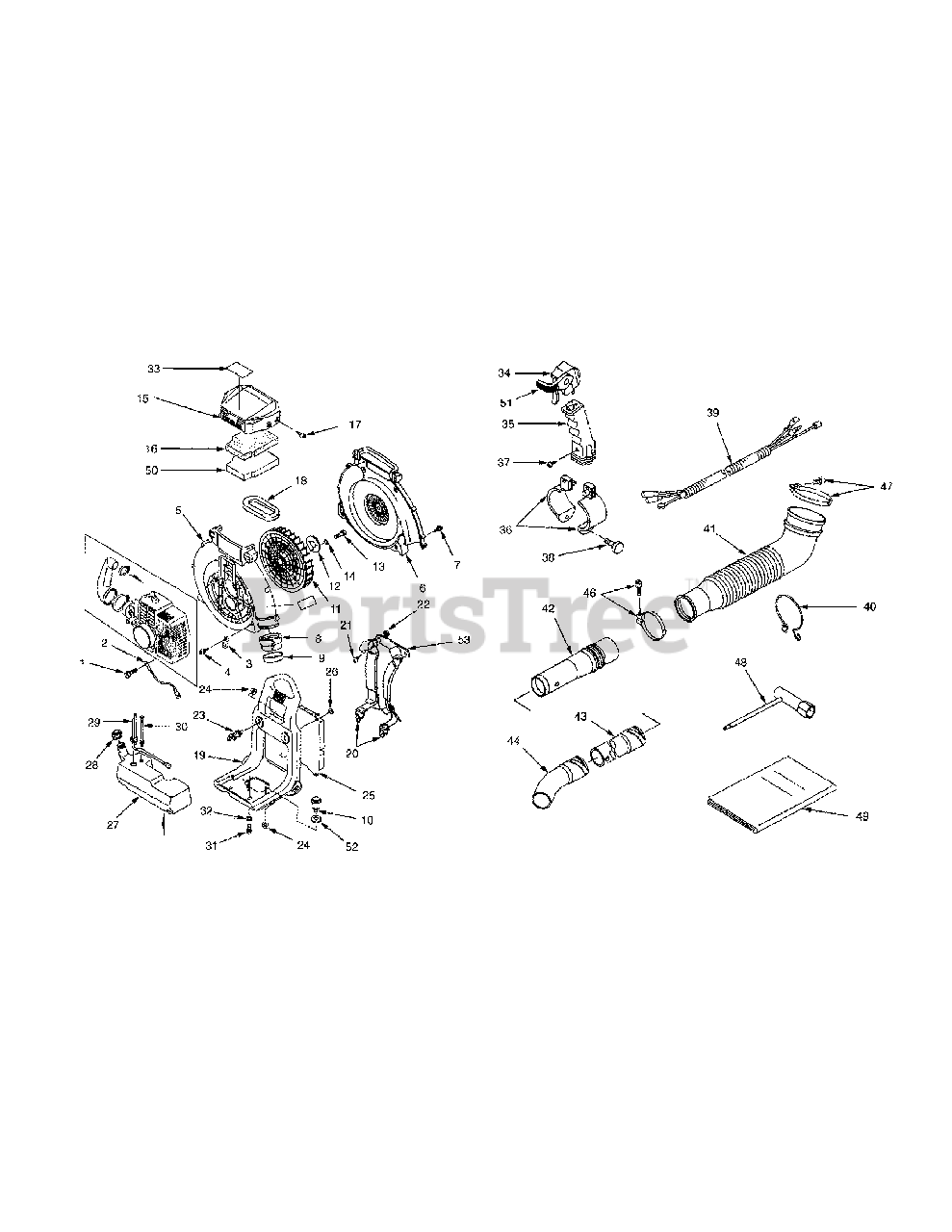

Blower Parts Diagram

  • Title

1

Cub Cadet IM-720973179

Bolt, M6x30

$

$

Not available

2

Cub Cadet IM-185603370

Harness, Wire

$

$

Not available

3

Cub Cadet IM-199113190

Clamp

$

$

Not available

4

Cub Cadet IM-725970020

Screw, 5x10

$

$

Not available

5

Cub Cadet IM-725100200

Casing

$

$

Not available

6

Cub Cadet IM-725100150

Casing

$

$

Not available

7

Cub Cadet IM-010709046

Screw, 5x25

$

$

Not available

8

Cub Cadet IM-725310030

Slide

$

$

Not available

9

Cub Cadet IM-198753170

Band

$

$

Not available

10

Cub Cadet IM-725700050

Rubber

$

$

Not available

11

Cub Cadet IM-725120040

Fan

$

$

Not available

12

Cub Cadet IM-725730030

Plate

$

$

Not available

13

Cub Cadet IM-010110640

Bolt, M6x40

$

$

Not available

14

Cub Cadet IM-027100006

Washer, Spring

$

$

Not available

15

Cub Cadet IM-135073251

Silencer Assembly

$

$

Not available

16

Cub Cadet IM-135263510

Element "A", Air Filter

$29.99

$

Usually ships in 3-6 days

0

17

Cub Cadet IM-010709045

Screw, 6x15

$

$

Not available

18

Cub Cadet IM-725970031

Sponge

$

$

Not available

19

Cub Cadet IM-725500030

Fram

$

$

Not available

20

Cub Cadet IM-725650020

Harness

$87.99

$

In Stock, only 2 left!

0

21

Cub Cadet IM-725970040

Screw, M6x16

$

$

Not available

22

Cub Cadet IM-725970050

Nut

$

$

Not available

23

Cub Cadet IM-725700060

Rubber

$

$

Not available

24

Cub Cadet IM-725970060

Nut

$

$

Not available

25

Cub Cadet IM-725600030

Custion

$

$

Not available

26

Cub Cadet IM-725970070

Fastener

$

$

Not available

27

Cub Cadet IM-160103320

Tank, Fuel

$

$

Not available

28

Cub Cadet IM-160033201

Cap Assembly, Fuel Tank

$10.99

$

In Stock, Qty 11

0

29

Cub Cadet IM-130303330

Filter, Assembly, Fuel

$

$

Not available

30

Cub Cadet IM-160043130

Valve Assembly, Reversing

$

$

Not available

31

Cub Cadet IM-015100514

Screw, M5x14

$

$

Not available

32

Cub Cadet IM-725970080

Washer

$

$

Not available

33

Cub Cadet IM-725960160

Name Plate

$

$

Not available

34

Cub Cadet IM-725420050

Lever, Throttle

$

$

Not available

35

Cub Cadet IM-198183240

Grip

$

$

Not available

36

Cub Cadet IM-198753220

Band Assembly

$23.99

$

Usually ships in 3-6 days

0

37

Cub Cadet IM-725970090

Screw, 5x20

$

$

Not available

38

Cub Cadet IM-725970100

Bolt, M6x30

$

$

Not available

39

Cub Cadet IM-125505440

Wire Complete, Throttle

$113.99

$

Usually ships in 3-6 days

0

40

Cub Cadet IM-198343250

Clip

$

$

Not available

41

Cub Cadet IM-725250030

Pipe, Flexible

$

$

Not available

42

Cub Cadet IM-725260081

Pipe, Straight

$

$

Not available

43

Cub Cadet IM-725260090

Pipe, Straight

$

$

Not available

44

Cub Cadet IM-725270040

Pipe, Curve

$41.99

$

Usually ships in 3-6 days

0

46

Cub Cadet IM-198753230

Band Assembly

$

$

Not available

47

Cub Cadet IM-198753240

Band Assembly

$

$

Not available

48

Cub Cadet IM-720983371

Wrench, Spanner Box 19

$

$

Not available

49

Cub Cadet IM-100814860

Manual, Operator's

Note: NLA

$

$

Currently unavailable

50

Cub Cadet IM-135263510

Element "B", Air Filter

$29.99

$

Usually ships in 3-6 days

0

51

Cub Cadet IM-125323190

Lever

$

$

Not available

52

Cub Cadet IM-725970110

Spacer

$

$

Not available

53

Cub Cadet IM-725660010

Harness

$

$

Not available
