BB 60-C (59AG308-050) - Cub Cadet Backpack Blower Engine Parts Diagram

Backpack Blower

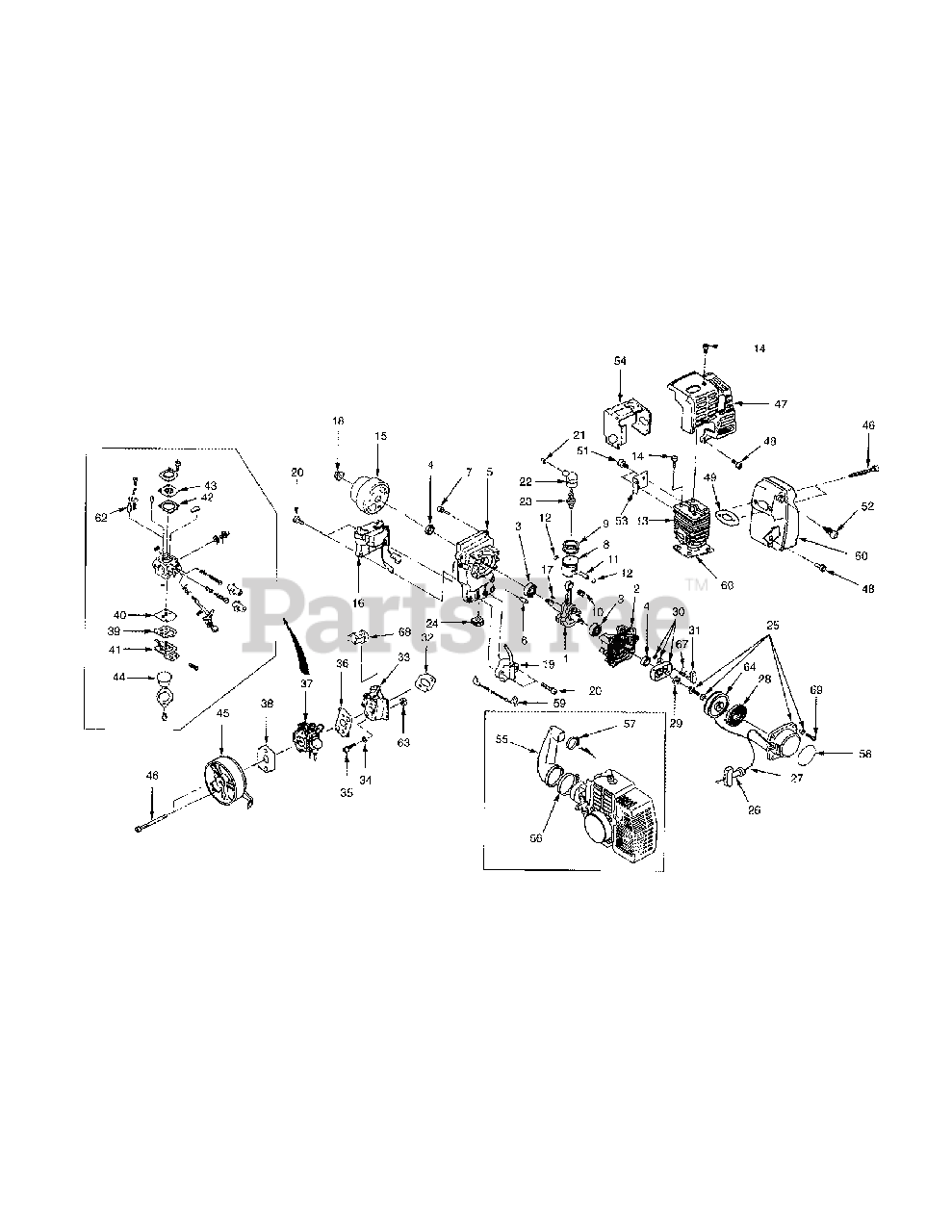

Engine Parts Diagram

  • Title

1

Cub Cadet IM-115253481

Crankshaft

$

$

Not available

2

Cub Cadet IM-110035251

Crankcase Assembly

Note: NLA

$

$

Not available

3

Cub Cadet IM-040106202

Bearing, Ball, 6202

$

$

Not available

4

Cub Cadet IM-050209106

Seal, Oil

$

$

Not available

5

Cub Cadet IM-110035232

Crankcase Assembly

$

$

Not available

6

Cub Cadet IM-030500512

Pin, Dowel

$

$

Not available

7

Cub Cadet IM-010709011

Bolt, M5x30

$

$

Not available

8

Cub Cadet IM-115013371

Piston Assembly

Note: NLA

$

$

Not available

9

Cub Cadet IM-115115720

Ring, Piston

Note: NLA

$

$

Not available

10

Cub Cadet IM-042709006

Bearing, Needle

$

$

Not available

11

Cub Cadet IM-115323140

Pin, Piston

$

$

Not available

12

Cub Cadet IM-198343040

Clip, Piston Pin

$

$

Not available

13

Cub Cadet IM-110213670

Cylinder

Note: NLA

$

$

Not available

14

Cub Cadet IM-010709008

Bolt, M5x16

$3.49

$

In Stock, only 2 left!

0

15

Cub Cadet IM-150103510

Flywheel, Magneto

$

$

Not available

16

Cub Cadet IM-150583070

CDI Unit

$

$

Not available

17

Cub Cadet IM-034309031

Key

$

$

Not available

18

Cub Cadet IM-023100010

Nut

$

$

Not available

19

Cub Cadet IM-150053361

Coil Assembly, Ignition

$

$

Not available

20

Cub Cadet IM-010709032

Bolt, M4x16

$

$

Not available

21

Cub Cadet IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

22

Cub Cadet IM-150413033

Cap, Plug

$

$

Not available

23

Cub Cadet IM-150265091

Spark Plug
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet IM-198113530

Rubber

$

$

Not available

25

Cub Cadet IM-155103481

Recoil Assembly

$

$

Not available

26

Cub Cadet IM-155223050

Knob, Starter

$

$

Not available

27

Cub Cadet IM-155213141

Rope, Starter

$

$

Not available

28

Cub Cadet IM-155263280

Spring, Spiral

$

$

Not available

29

Cub Cadet IM-020700008

Nut

$

$

Not available

30

Cub Cadet IM-155353102

Pulley Assembly, Starter

$

$

Not available

31

Cub Cadet IM-155163081

Ratchet

$

$

Not available

32

Cub Cadet n/a

Gasket, Insulator

$

$

Currently unavailable

33

Cub Cadet IM-199513520

Insulator

$

$

Not available

34

Cub Cadet IM-026100005

Washer

Note: NLA

$

$

Not available

35

Cub Cadet IM-010709010

Bolt, M5x25

$

$

Not available

36

Cub Cadet n/a

Gasket

$

$

Currently unavailable

37

Cub Cadet IM-130104490

Carburetor Assembly

$

$

Not available

38

Cub Cadet n/a

Gasket

$

$

Currently unavailable

39

Cub Cadet IM-130513413

Gasket

$10.99

$

Usually ships in 3-6 days

0

40

Cub Cadet IM-130513409

Diaphragm, Pump

$

$

Not available

41

Cub Cadet IM-130283414

Body, Pump

Note: NLA

$

$

Currently unavailable

42

Cub Cadet IM-130123350

Gasket

$

$

Not available

43

Cub Cadet IM-130283357

Diaphragm, Metering

$

$

Not available

44

Cub Cadet IM-130513900

Rubber

Note: NLA

$

$

Currently unavailable

45

Cub Cadet IM-135153101

Case

$

$

Not available

46

Cub Cadet IM-010709040

Bolt, M5x58

$

$

Not available

47

Cub Cadet IM-175163880

Cowling, Cylinder

$

$

Not available

48

Cub Cadet IM-010709006

Bolt, M5x12

$

$

Not available

49

Cub Cadet n/a

Gasket, Muffler

$

$

Currently unavailable

50

Cub Cadet IM-135403720

Muffler

$

$

Not available

51

Cub Cadet IM-010709015

Bolt, M4x12

$

$

Not available

52

Cub Cadet IM-135493090

Arrester

$12.99

$

In Stock, only 1 left!

0

53

Cub Cadet IM-175133150

Plate, Baffle

$

$

Not available

54

Cub Cadet IM-175163890

Cowling

Note: NLA

$

$

Not available

55

Cub Cadet IM-135563172

Elbow, Intake

$

$

Not available

56

Cub Cadet IM-198756170

Band

$

$

Not available

57

Cub Cadet IM-398750260

Band

$

$

Not available

58

Cub Cadet IM-190333340

Trade Mark

$

$

Not available

59

Cub Cadet IM-150813250

Harness, Wire

$

$

Not available

60

Cub Cadet IM-110993440

Gasket, Cylinder

$

$

Not available

?61

Cub Cadet IM-135994340

Gasket Kit

$

$

Not available

62

Cub Cadet IM-130153210

Valve, Float

$

$

Not available

63

Cub Cadet IM-020100005

Nut

$

$

Not available

64

Cub Cadet IM-010709021

Bolt;M5x50

$

$

Not available

?65

Cub Cadet IM-155183140

Reel

$

$

Not available

?66

Cub Cadet IM-155343070

Screw

$

$

Not available

67

Cub Cadet IM-155263300

Spring

$

$

Not available

68

Cub Cadet IM-125543090

Adjuster

$

$

Not available

69

Cub Cadet IM-010709009

Bolt, M5x20

$

$

Not available
