BBRR 219 BS (7800671) - Bad Boy 21" Walk-Behind Mower (2010) Engine & Blade Group Parts Diagram

21" Walk-Behind Mower

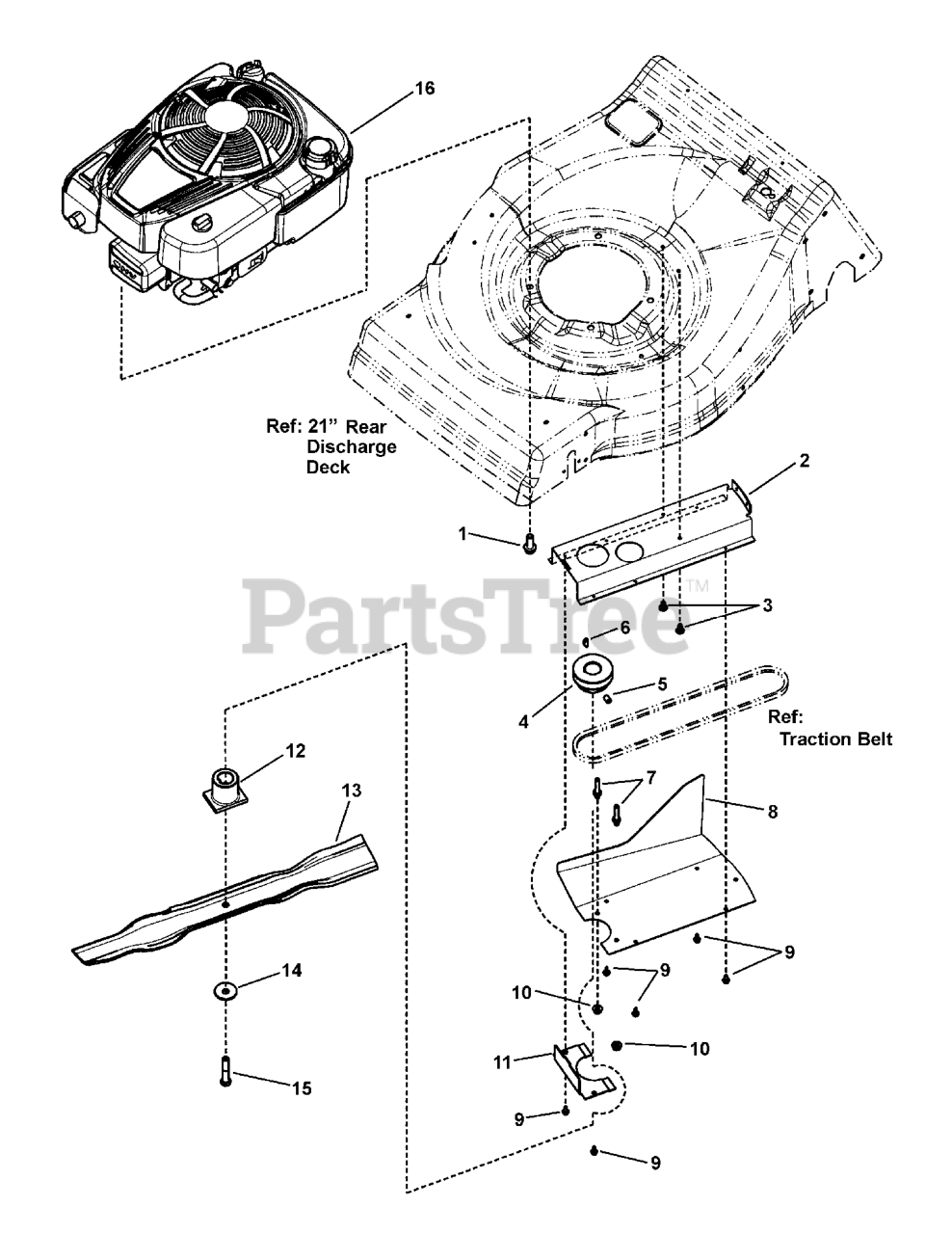

Engine & Blade Group Parts Diagram

  • Title

1

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

2

Murray 7300725YP

BELT GUARD

$16.99

$

In Stock, only 1 left!

0

3

Murray 7900067YP

SCREW, 1/4-20 x .550 Torx Self-Tap

$4.49

$

In Stock, Qty 20+

0

4

Murray 7100437YP

PULLEY, Engine

$40.99

$

Usually ships in 2-12 days

0

5

Murray 7092086YP

SET SCREW, 5/16-18 x 1/2" Hex Recess

$4.99

$

Usually ships in 2-12 days

0

6

Murray 7091214YP

KEY, #HP-506 Hi-Pro

$4.99

$

In Stock, only 3 left!

0

7

Murray 7101313YP

BELT GUIDE, Engine, 21" RD (1/4-20 thread)

$3.99

$

Usually ships in 2-12 days

0

8

Murray 7300596ZMA

COVER, Belt Guard

$33.99

$

Usually ships in 2-12 days

0

9

Murray 26X259MA

SCREW, #10-16 x 1/2", AB, w/Washer

$4.49

$

Usually ships in 2-12 days

0

10

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

11

Murray 7300724YP

COVER, Belt

$10.99

$

Usually ships in 2-12 days

0

12

Murray 7101414YP

BLADE HUB, 21" WBM, Rear Drive, 2 Position

$16.99

$

In Stock, only 1 left!

0

13

Murray 7100242AYP

BLADE, Wave, 21" Steel Deck

$28.99

$

In Stock, only 1 left!

0

14

Murray 7012063SM

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

15

Murray 7090167SM

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5

$3.99

$

Usually ships in 2-12 days

0

16

Murray 12S972-0137-B1

* ENGINE, Briggs 875 Gross Professional Torque Series

$

$

Currently unavailable
