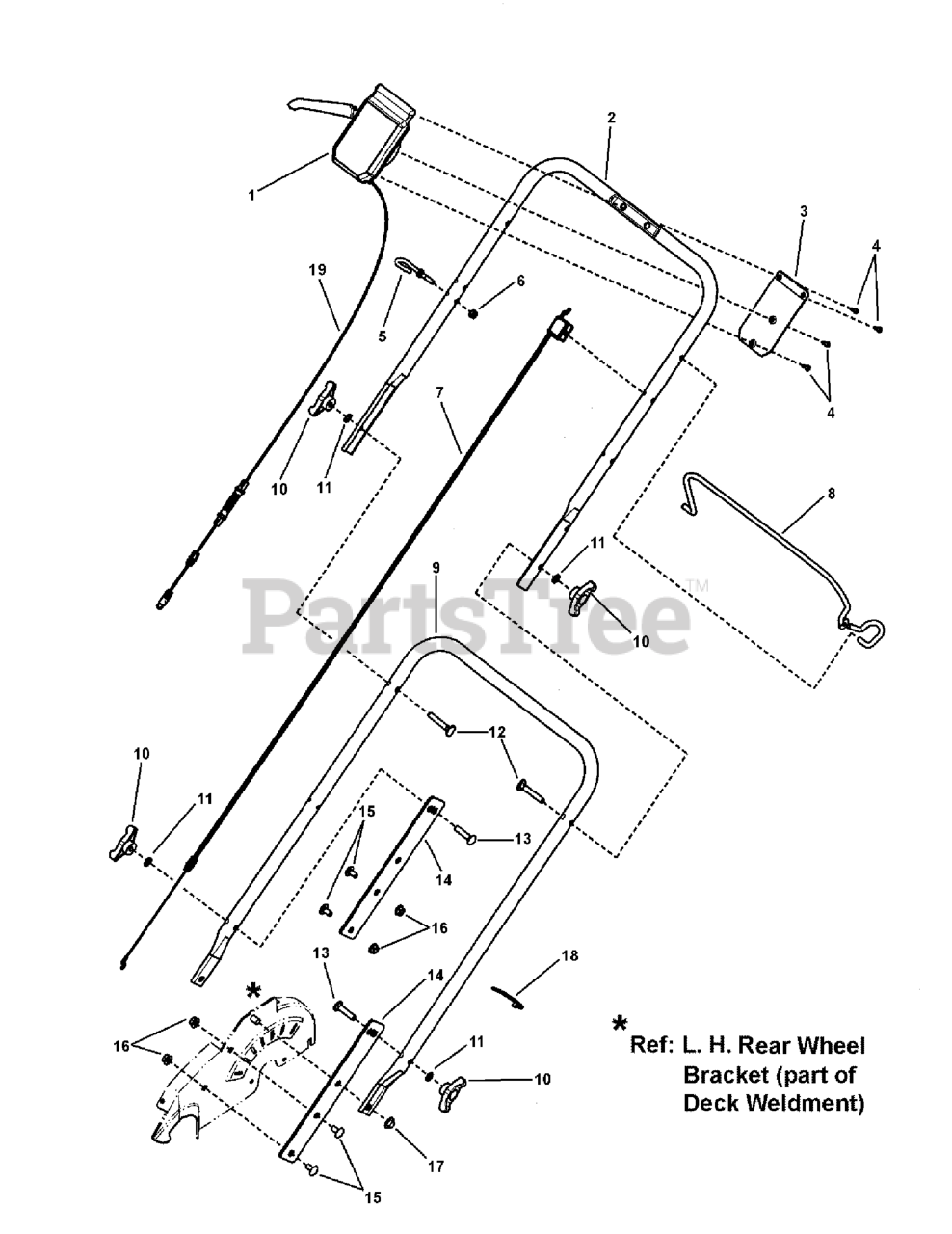

BBRS 219 BS (7800670) - Bad Boy 21" Walk-Behind Mower (2010) Handle Assembly Group Parts Diagram

21" Walk-Behind Mower

Handle Assembly Group Parts Diagram

  • Title

1

Murray 7104003YP

ASSY, Control Head, Varaible Speed

Note: (Includes Ref. No. 19)

$72.99

$

Usually ships in 2-12 days

0

2

Murray 7078247AYP

HANDLE, Upper, Flat

$142.99

$

Usually ships in 2-12 days

0

3

Murray 7300130AMA

PLATE, Control Panel

$22.99

$

Usually ships in 2-12 days

0

4

Murray 7100225YP

SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

5

Murray 7028488MA

GUIDE, Rope (1/4-20 thread)

$6.49

$

In Stock, only 1 left!

0

6

Murray 7076978SM

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 7100641YP

CABLE, Zone Control

$22.99

$

In Stock, only 1 left!

0

8

Murray 7101675AYP

BAIL, Operator Presence Control

$46.99

$

Usually ships in 2-12 days

0

9

Murray 7078246AYP

HANDLE, Lower

$139.99

$

Usually ships in 2-12 days

0

10

Murray 7035744YP

KNOB, 5/16-18 Wing (Black)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

11

Murray 7090391SM

WASHER, 5/16" Internal Tooth lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

12

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 14

0

13

Murray 7091612SM

BOLT, 5/16-18 x 1-1/2" Round Head Square Neck, YZ
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

14

Murray 7300103AYP

BRACKET, Lower Handle

$11.99

$

Usually ships in 2-12 days

0

15

Murray 7090799SM

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

16

Murray 7091601SM

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Murray 7091135YP

PUSHNUT, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 12

0

18

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

19

Murray 7104004YP

CABLE, DRIVE

$48.99

$

In Stock, only 1 left!

0
