BBRS 219 BS (7800670) - Bad Boy 21" Walk-Behind Mower (2010) Rear Wheels Group Parts Diagram

21" Walk-Behind Mower

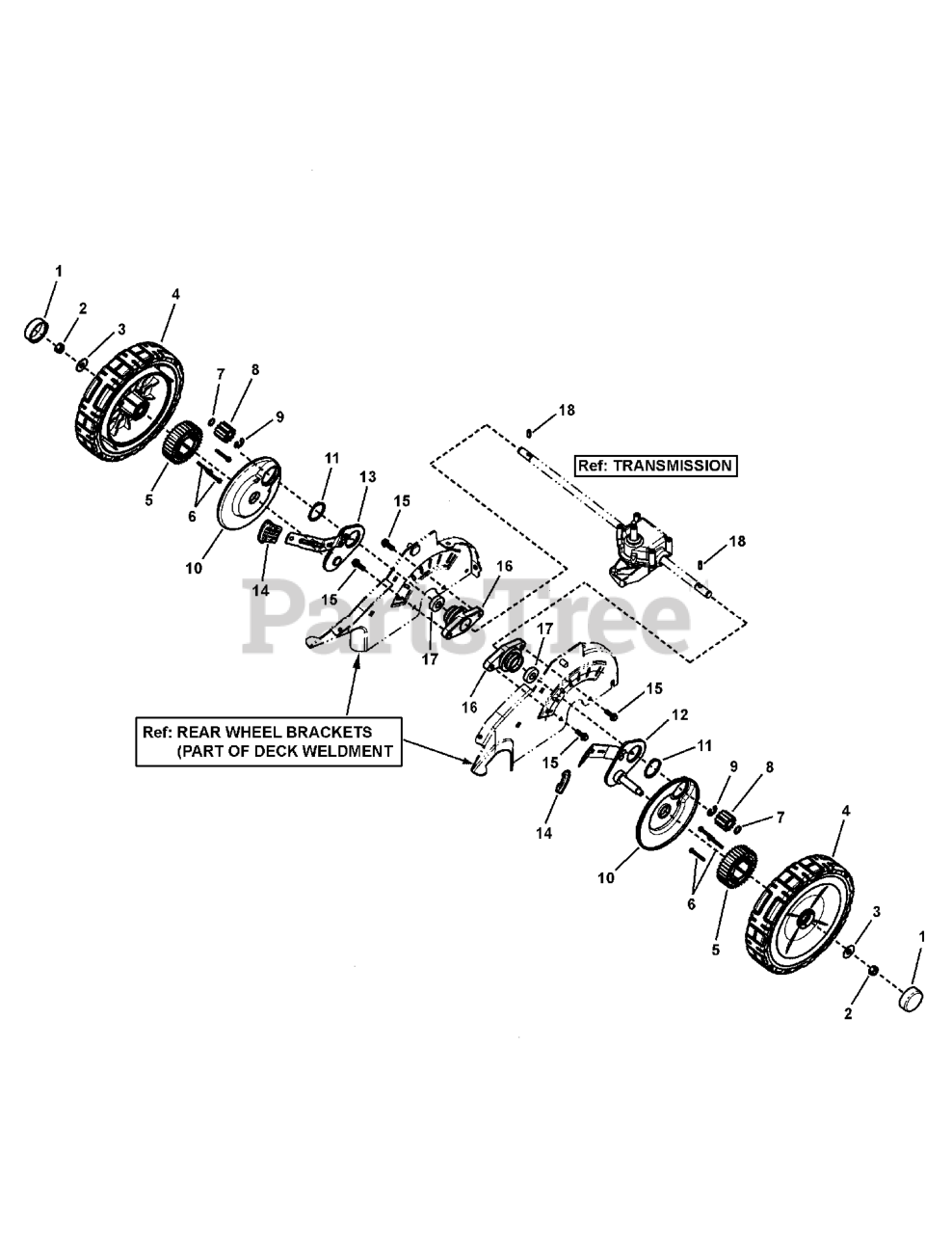

Rear Wheels Group Parts Diagram

  • Title

1

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

2

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

3

Murray 17X169MA

WASHER, 1" OD x .387 ID Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

4

Murray 7500647YP

ASSEMBLY, Wheel, w/Bearing 9", Snapper Tread, Charcoal Gray

Note: (Includes Ref. No 4A)

$49.99

$

In Stock, Qty 5

0

4A

Murray 7101380YP

BALL BEARING, 1-1/8" OD, Flange
(Superseded to 071579MA)

Note: (Not Illustrated)

$40.99

$

In Stock, only 1 left!

0

5

Murray 7100914YP

GEAR, External Wheel

$10.99

$

In Stock, only 2 left!

0

6

Murray 7091196SM

SCREW, #8 x 1-1/4, Hex Washer Self-Tap (Hi-Lo)

$4.99

$

Usually ships in 2-12 days

0

7

Murray 7027999YP

RETAINING RING

$4.49

$

In Stock, Qty 7

0

8

Murray 7100820YP

GEAR, Pinion

$6.49

$

Usually ships in 2-12 days

0

9

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

10

Murray 7101367YP

SHIELD, Dust, 21" WBM, RD

$7.49

$

In Stock, only 2 left!

0

11

Murray 7900010YP

SNAP RING, 1-3/8

$4.49

$

Usually ships in 2-12 days

0

12

Murray 7500273YP

ASSY, Axle Arm, Left Rear

$88.99

$

In Stock, only 1 left!

0

13

Murray 7500274YP

ASSY, Axle Arm, Right Rear

$125.99

$

Usually ships in 2-12 days

0

14

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

15

Murray 7090699YP

HFLB, 1/4-20 X 3/4

$3.99

$

Usually ships in 2-12 days

0

--

Murray 7500041YP

ASSEMBLY, Axle Bearing
(Superseded to 7600184YP)

Note: (Includes Ref. Nos. 16 & 17)

$24.99

$

Usually ships in 2-12 days

0

16

Murray 7078214YP

HOUSING, Axle Bearing

$13.99

$

Usually ships in 2-12 days

0

17

Murray 7078243YP

BEARING, Ball

$10.99

$

In Stock, only 4 left!

0

18

Murray 7100861YP

PIN, Axle

$4.99

$

In Stock, only 1 left!

0
